Thin Sheet Metal Laser Cutting Machine

Product group Sheet Metal Laser Cutting Machine
Brand FHBS Laser
Model E series
Country of origin China
Listed on Dec 24, 2022

Seller information

Visit store
  • Yanghe, Gaoming, Foshan, Guangdong, China
  • +86 18824841072
  • Manufacturer
  • Established 2004
  • 240 employees

Description

Report this item

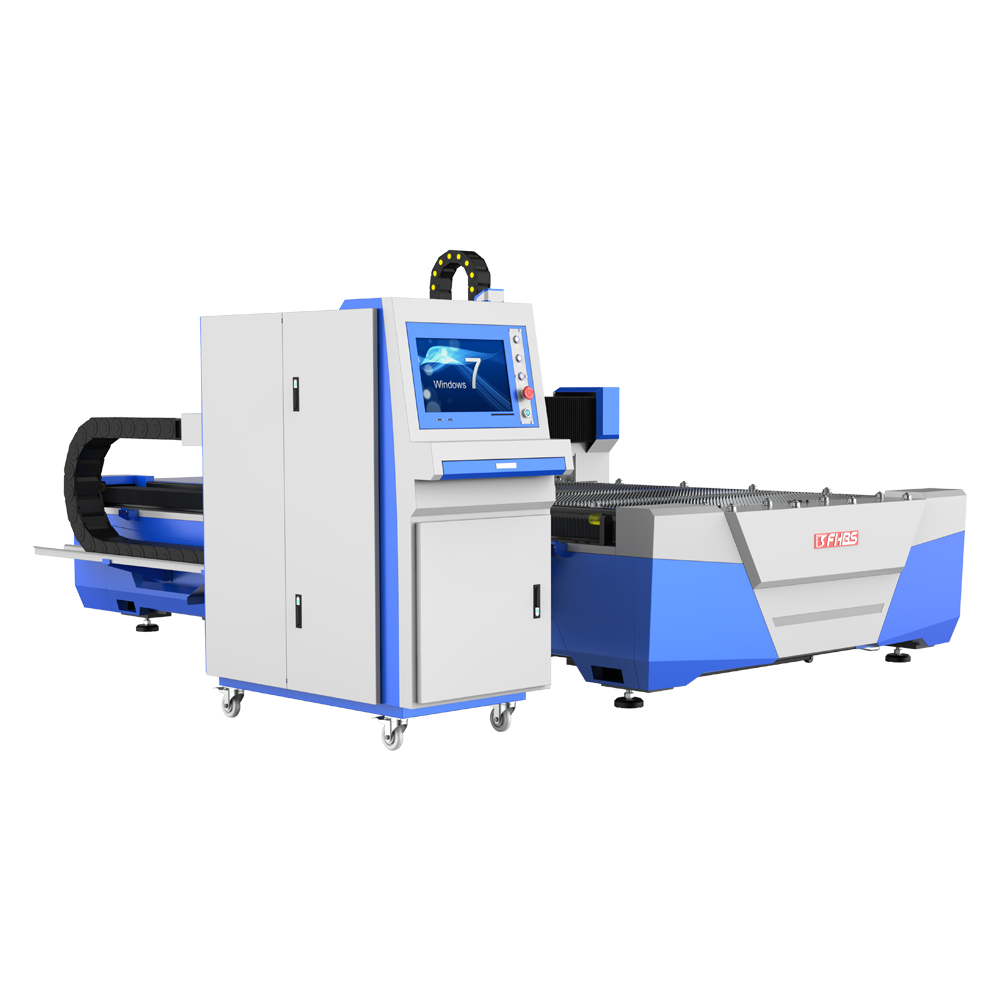

The E series fiber laser cutter improves upon the KE series with a more robust frame, premium components, and increased power options (up to 30KW) for more demanding production environments. Laser cut steel, aluminum, brass, copper, titanium and more. Includes IPG power source, onsite installation and training, and a full 2-Year warranty.

Save up to $1000 by talking to a sales rep!

CLOSER LOOK

Take an in-depth look at the KE series laser cutting machine.

• Multi cutting table size for options
• Up to 4724IPM (120m/min) cutting speeds
• Available in 1.5-30KW
• Up to 3.94’‘ (100mm) cutting thickness

MATERIAL CAPABILITIES

Laser cutters can cut all types of metals, from mild steel to stainless and also non-ferrous metals. The thickness of the metal can be anywhere up to 25 mm.

FEATURES

Machine Enhancements Designed to Increase Productivity

Single Platform Structure
Small footprint for shipping cost saving. Even a 40HQ cabinet can hold 6 KE series. More suitable for users with limited venues.

FSCUT Control System
Rich cutting process database & Simple operation.We will set all the parameters before delivery, and you can use it when you get it.

Aerospace Aluminum Beam
Adopting ultra-high pressure one-piece mold drawing process, it is faster, stronger and lighter, which ensures the accuracy of cutting.

High Performance Servo Motors
Equipped with software analysis, it can perform high-speed displacement and high-precision motion control.

TECHNICAL SPECIFICATIONS

Model: E SERIES
Power Range: 1.5-30KW
Work Area: 10' × 5' (3050mm × 1524mm)13' × 5' (4050mm × 1524mm)19.85' × 5' (6050mm × 1524mm)19.85' × 6.56' (6050mm × 2000mm)19.85' × 8.20' (6050mm × 2500mm)26.41' × 8.20' (8050mm × 2500mm) 39.53' × 8.20' (12050mm × 2500mm) 42.81' × 8.20' (13050mm × 2500mm)
X/Y Axis Positioning Accuracy: ±0.03mm/m
X/Y Axis Repeat Positioning Accuracy: ±0.02mm
Max Moving Speed: 120m/min
Max. Acc. Speed: 0.8G
