Medium-Thickness Sheet Metal Laser Cutting Machine

Category
Sheet Metal Laser Cutting Machine
Brand
FHBS Laser
Model
HDE Series
Country of origin
China

Product details

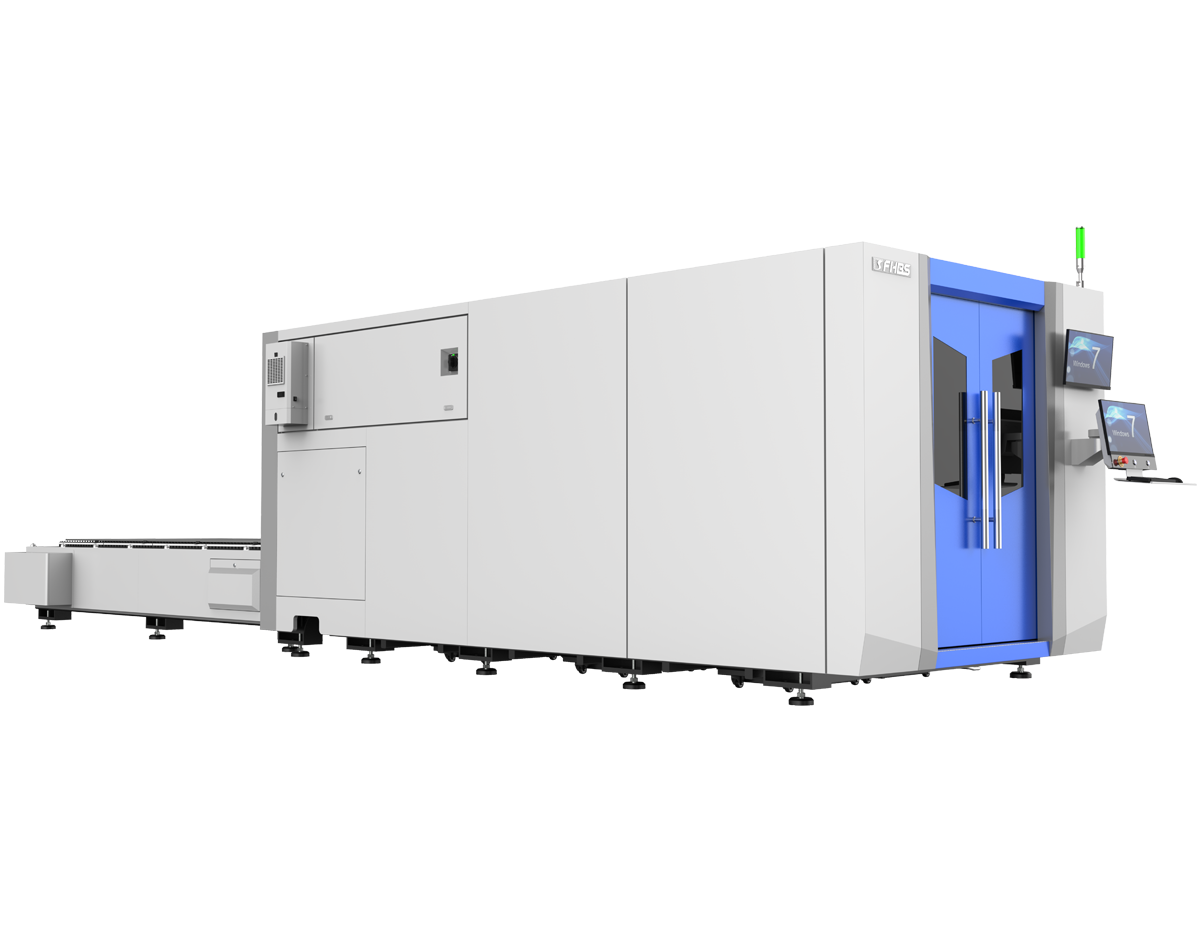

Classic Sheet Metal Laser Cutting Machine

HDE series fiber laser cutter improves upon the E series with a fully enclosed work area plus an patented exchange table. Choose up to 12KW of fiber power and laser cut stainless, carbon steel, brass, copper, titanium and other non-ferrous metals. Cut up to 50mm carbon steel and stainless steel. Includes IPG fiber power source, onsite installation and training, and a two (2) year warranty.

Save up to $1000 by talking to a sales rep!

CLOSER LOOK

Take an in-depth look at the HDE series laser cutting machine.

• 10' x 5‘ to 20' x 8‘ optional cutting table
• Up to 4724IPM (120m/min) cutting speeds
• Available in 1.5-12KW configurations
• Up to 2’‘ cutting thickness

MATERIAL CAPABILITIES

Laser cutters can cut all types of metals, from mild steel to stainless and also non-ferrous metals. The thickness of the metal can be anywhere up to 25 mm.

FEATURES

Machine Enhancements Designed to Increase Productivity

Climbing Exchange Platforms
Realize high-speed and stable exchange of two platforms within 10-15 seconds, which increases production efficiency by 20%

FSCUT Control System
Rich cutting process database & Simple operation.We will set all the parameters before delivery, and you can use it when you get it.

Aerospace Aluminum Beam
Adopting ultra-high pressure one-piece mold drawing process, it is faster, stronger and lighter, which ensures the accuracy of cutting.

High Performance Servo Motors
Equipped with software analysis, it can perform high-speed displacement and high-precision motion control.

TECHNICAL SPECIFICATIONS

Model: HDE SERIES
Power Range: 1500W-12000W
Work Area: 10' × 5' (3050mm × 1524mm)12.84' × 6.5' (4050mm × 2000mm19.84' × 6.5' (6050mm × 2000mm)19.84' × 8.2' (6050mm × 2000mm)
X/Y Axis Positioning Accuracy: ±0.03mm/m
X/Y Axis Repeat Positioning Accuracy: ±0.02mm
Max Moving Speed: 120m/min
Max. Acc. Speed: 1.5G
