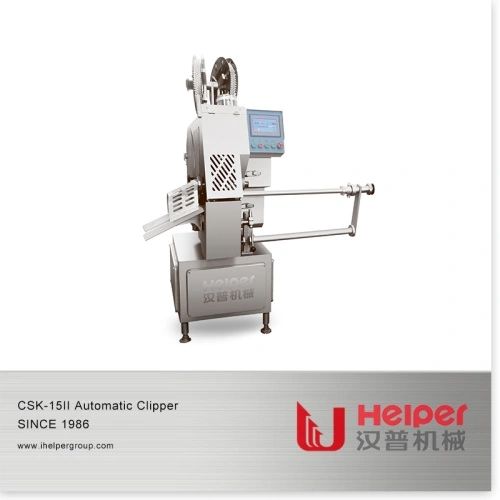

Industrial Automatic Sausage Double Clipper


Product Attributes:

Model No.: CSK-15II
Brand: Helper
Material: Stainless Steel
Automaticity: High
Packaging & Delivery
Selling Units: Set/Sets
Package Type: Seaoworthy wooden case

Payment Type: L/C,T/T
Min. Order: 1 Set/Sets
Transportation: Ocean

Automatic Sausage Double Clipper is designed independently for large-scale producers. It has great improvement compared with the first generation Automatic Double Clipper. Not to mention the function of Connecting to sausage filler to form an automatic manufacturing line, it is more suitable for long time continues working with upgrading of mechanical system and controlling system. The machine body, key parts and transmission parts are all made of excellent aluminum alloy and stainless steel, which meet all hygienic requirements. The original clips from Helper and together with CSK-15II Clipping Machine guarantee top quality, efficient, trouble-free production.

Features and characters:

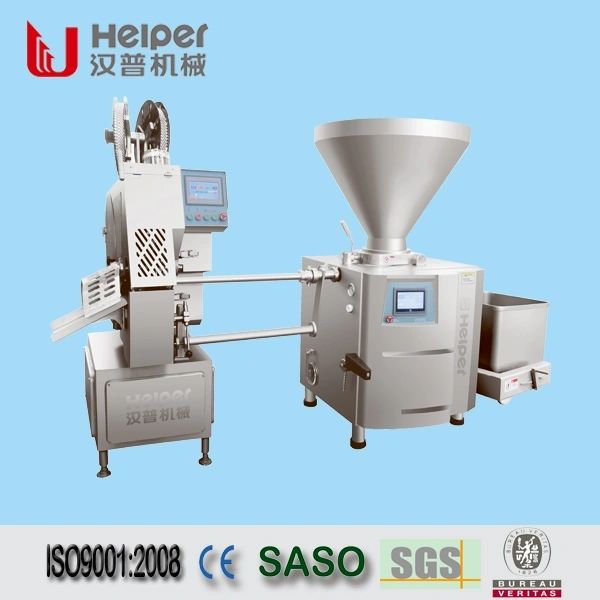

• Easy connected with various stuffing filling machines to realize automatic production.
• Quipped with automatic counting and cutting system, about 0-20 ties adjustable.
• Advanced control system of PLC.
• Simple one button operation with the pneumatic swing-off and swing-on.
• Automatic oil lubrication system to make for less impact force and lower noise.
• Unique design and work mode help on minimum maintenance.
• Easy change of clip without tools.
• Double vacuum filling horns system for changing of casing easily.
• Stainless steel structure and excellent surface treatment make for easy cleaning.

MAIN technical parameters:

Available clip: aluminium great wall clip 15-8,15-9.
Available casing: 30-120mm (semi perimeter)
Clip speed: 0-200 times / minute adjustable
Power: 2.7kw
Voltage: Alternating Current 220V
Air source: working pressure 0.5~0.6Mpa(for cutting knife)
Dimension: L×W×H=1090×930×1900mm
N.W.: 630kg
