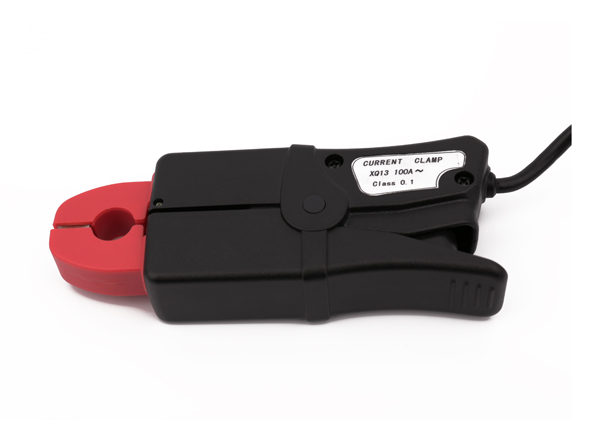

XQ13 100A High Performance AC Micro Amp Clamp On Current Probe

Product group Current Probe
Brand GFUVE
Model XQ13
Country of origin China
Listed on Jan 1, 2023

Supplier information

Supplier details
  • Bldg.2-1111, Joy Mansion, No.99 Chaoyang North Road, Chaoyang District, Beijing,100025, China
  • +86 10 85583577
  • Manufacturer
  • Established 2005

Description

Report this item

The model XQ13 100A clamp current probe is suitable for 0A-120A cable online measurement, it belongs to high performance transducer field. Up to 0.1% accuracy class, this current probe clamp is suitable for most oscilloscopes and multimeters. Current signal can be measured directly. Suitable for accurate measurement of AC current using the permalloy core material. Frequency range 10Hz-2MHz, with standard 2.5 meter cable with D01 connector, 4mm banana or BNC connector. According to EN 61010-1, EN 61010-2-032, IEC60044-1 Standard.

FEATURES
• UL, CE, CNAS mark
• Small, compact size
• 10Hz to 2MHz response
• Holding wire diameter: φ13mm
• Installation: clamp type design
• High content nickel metal core
• 1mA/A or 1mV/A AC output signals
• Measurement range of 1mA to 120A AC
• Low phase shift for power measurement
• Improved ergonomic design and easy operation
• Designed to EN 61010, 600V CAT III safety standard
• Designed for DMMs, loggers, recorders and oscilloscopes

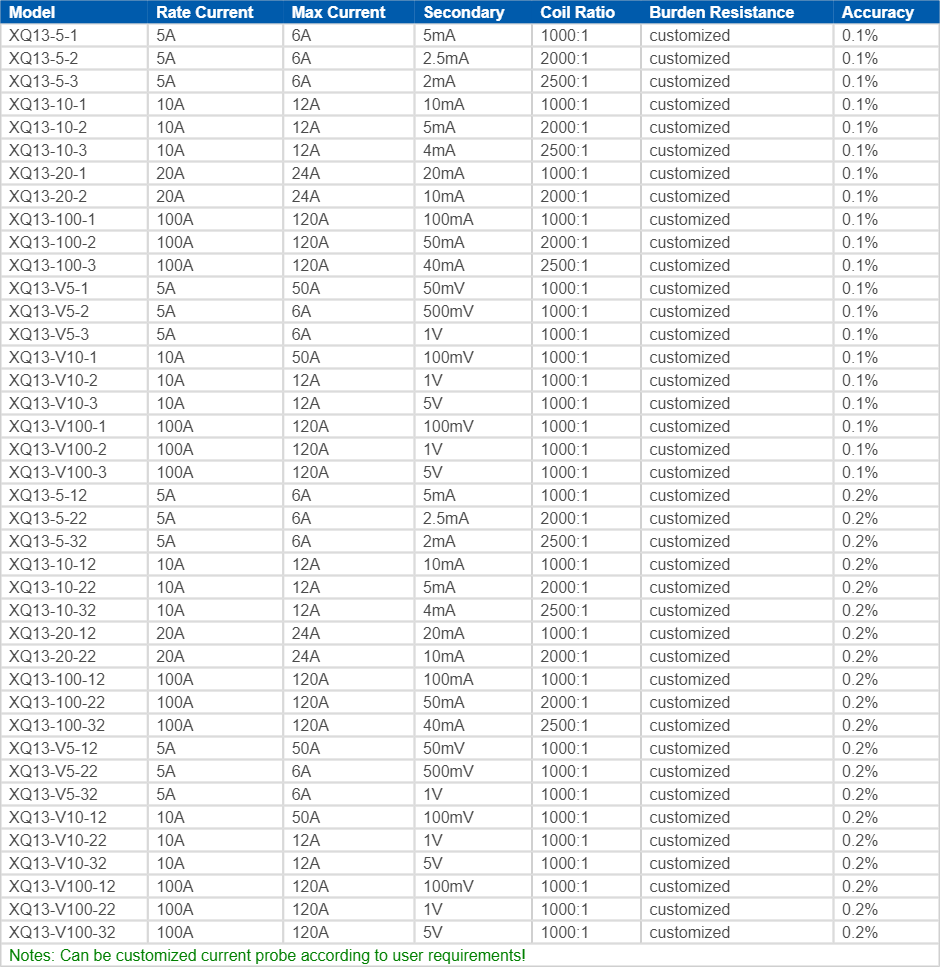

• Suitable for 5A, 10A, 20A, 50A, 100A cable online measurement

APPLICATION
• Multimeter
• Power meter
• Energy sub-meters
• Phase angle meter
• Digital multi-meter
• Oscilloscopes meter
• Power load monitoring
• Power quality analyzer
• Data logging/recording
• Power quality monitoring
• Power and harmonic meters
• Multi-function energy meter
• CT secondary current detection
• Measuring around cable bundles
• Energy meter calibrator (on site);
