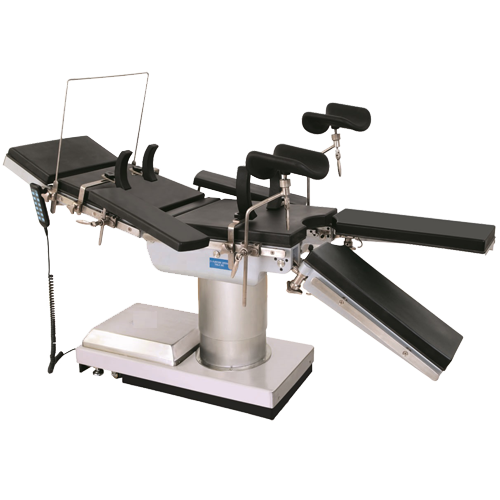

ECOH003-C Electric Operating Table

Electric Hydraulic Operating Table
Country of origin

Supplier information

Supplier details

Product description

Report abuse

This Electric Operating Table ECOH003-C is developed independently by our company wity innovativ and advanced technologies. The table is a compehesive one with high-quality and multi-purposes,which takes the leading position in the domestic market. The table can be used in almost all kinds of operations by means of speical design. The bedtop can be moved vertically and rotated horizontally. The tableboard is made from high-intensity synthesis panel. X-Ray transmissive, easy adjustment and easy use of C-arm make the table can be more capable for any operation. The operating table is controlled by Control Circuit, which is easy operation, low noise,reliable performance. 2000L operating table has almost the same functions with 99C, except that ECOH 003C-1 can't be moved in vertical direction.


Overall Length/ Width: 2050mm/500mm
Min Height/ Max Height: 580-930mm
Reversed Trendelenburg/ Trendelenburg: ≥20°/≥15°
Lateral Tilt: ≥15°
Backward and Forward Movements: ≥350mm
Adjustment of sections:
Head Section Raised /lowered from the horizontal:≥45°/≥90°
Back Section Raised / lowered from the horizontal: ≥75°/≥30°
Leg Section Lowered from the horizontal: ≥90°
Leg section opened:≥90°
Back rise(When optional):≥80mm
Horizonal ratation of tabletop:0~180°
Lifting speed:4~16mm/s
Safe working load: 250kg
Battery capacity is 14 AH Battery capacity ≥ 2.4AH
