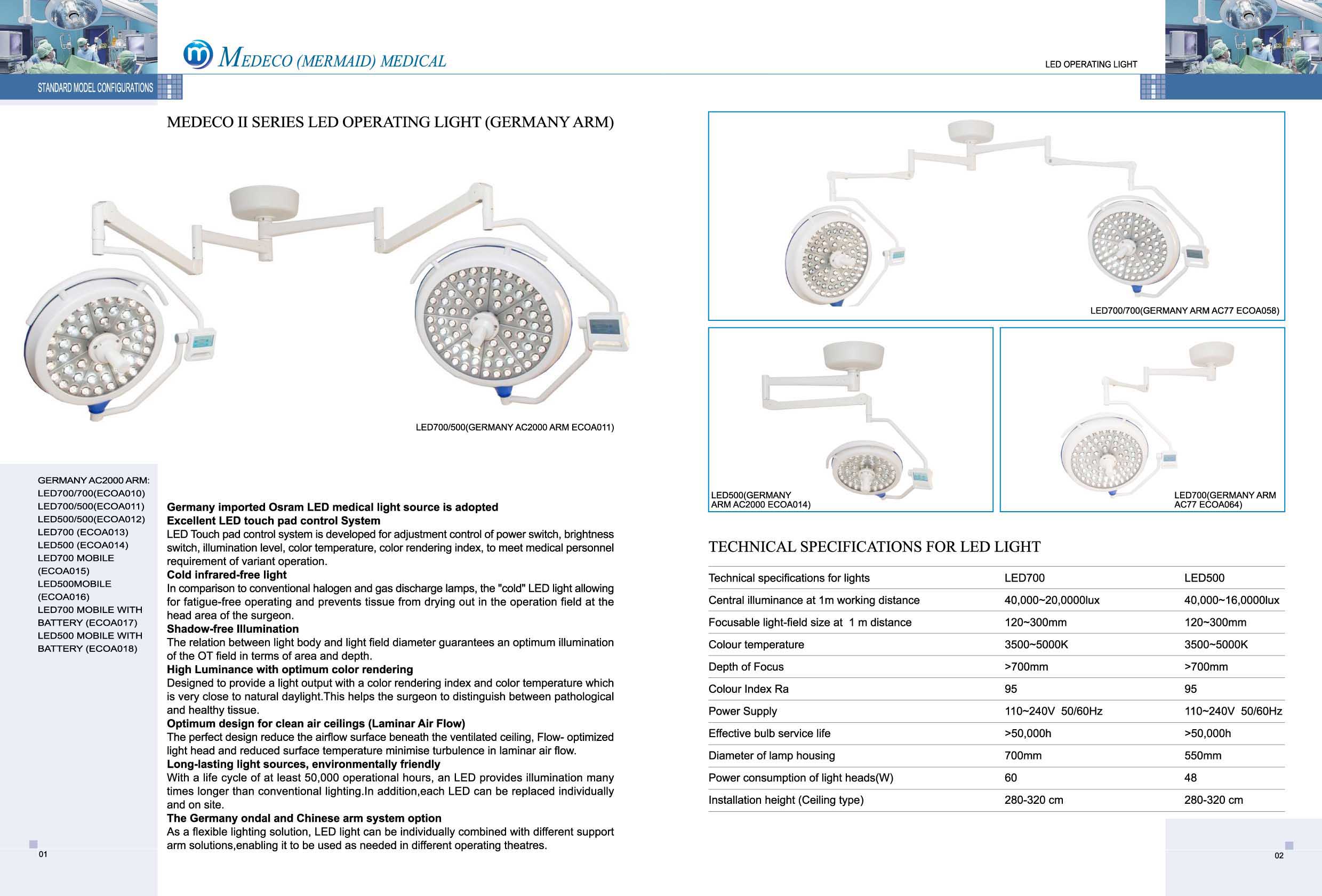

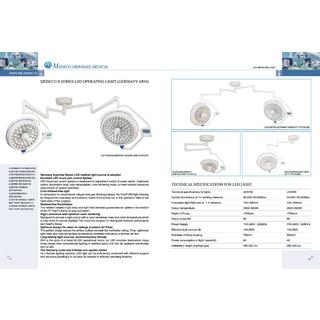

New LED Operating Light LED700/500 (Germany Arm)



Germany imported Osram LED medical light source is adopted

Excellent LED touch pad control System:
LED Touch pad control system is developed for adjustment control of power switch, brightness switch, illumination level, color temperature, color rendering index, to meet medical personnel requirement of variant operation.

Cold infrared-free light:
In comparison to conventional halogen and gas discharge lamps, the “cold” LED light allowing for fatigue-free operating and prevents tissue from drying out in the operation field at the head area of the surgeon.

Shadow-free Illumination:
The relation between light body and light field diameter guarantees an optimum illumination of the OT field in terms of area and depth.

High Luminance with optimum color rendering:
Designed to provide a light output with a color rendering index and color temperature which is very close to natural daylight.This helps the surgeon to distinguish between pathological and healthy tissue.

Optimum design for clean air ceilings (Laminar Air Flow):
The perfect design reduce the airflow surface beneath the ventilated ceiling, Flow- optimized light head and reduced surface temperature minimise turbulence in laminar air flow.

Long-lasting light sources, environmentally friendly:
With a life cycle of at least 50,000 operational hours, an LED provides illumination many times longer than conventional lighting.In addition,each LED can be replaced individually and on site.

The Germany ondal and Chinese arm system option:
As a flexible lighting solution, LED light can be individually combined with different support arm solutions,enabling it to be used as needed in different operating theatres.

Standard model configurations:

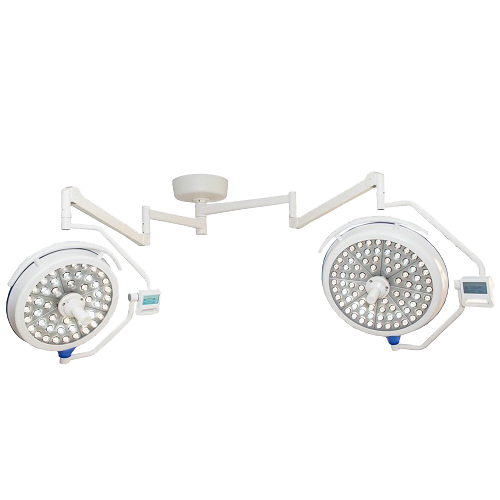

LED700/700(700mm+700mm Lamp Head)
LED700/500(700mm+550mm Lamp Head)
LED500/500(700mm+550mm Lamp Head)
LED700 (700mm Lamp Head)
LED500 (550mm Lamp Head)

Technical specifications for lights | LED700 | LED500
Central illuminance at 1m working distance | 40,000~16,0000 lux | 40,000~120,000 lux
Focusable light-field size at  1 m distance | 120~300mm | 120~300mm
Colour temperature | 3 500~5000K | 3500~5000K
Depth of Focus | >700mm | >700mm
Colour Index Ra | 95 | 95
Power Supply | 110~240V  50/60Hz | 110~240V  50/60Hz
Effective bulb service life | >50,000h | >50,000h
Diameter of lamp housing | 700mm | 550mm
Power consumption of light heads(W) | 60 | 48
Installation height (Ceiling type) | 280-320 cm | 280-320 cm


Country of origin
