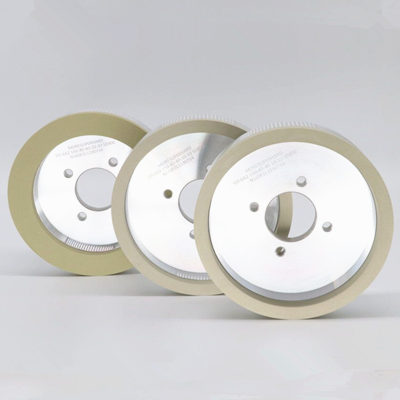

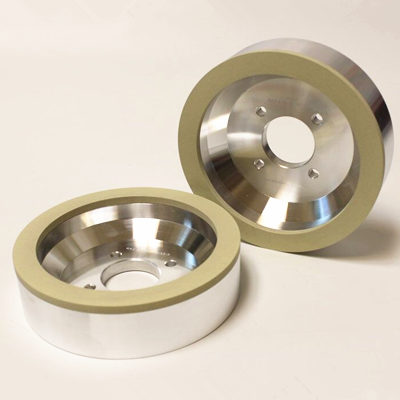

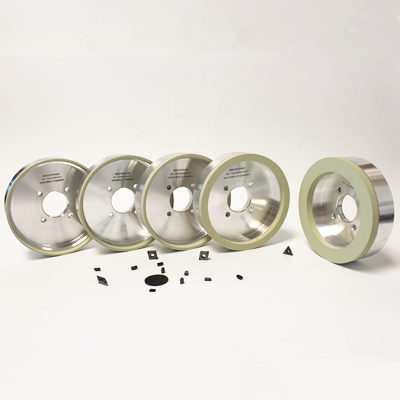

Vitrified diamond grinding wheels for PCD & PCBN tools

Category
Vitrified Bond Products
Country of origin
China
Manufacturer
China

Product details

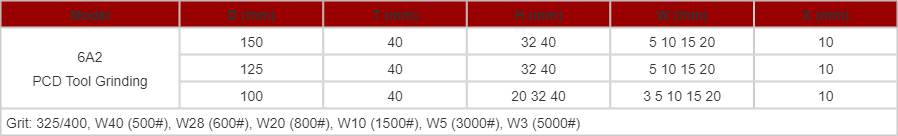

Diamond Width: 3mm, 5mm, 10mm, 15mm, 20mm

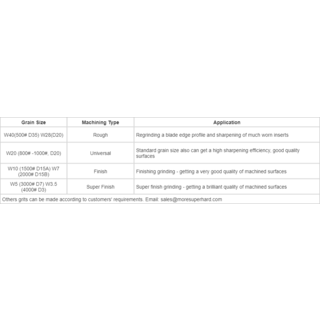

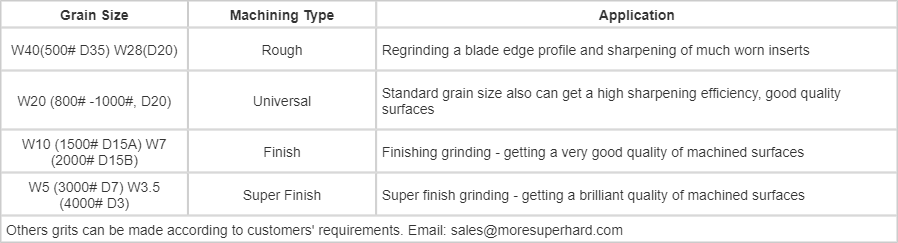

Grit Size: rough grinding (400#, 500#, 600#), medium grinding (800# and 1000#), finish grinding (1500#, 2000#), super finish grinding (3000#, 4000#, 6000#)

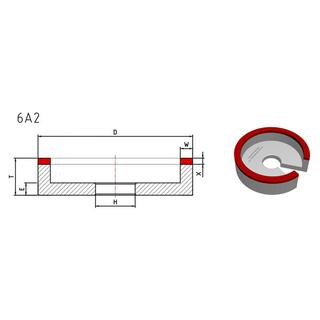

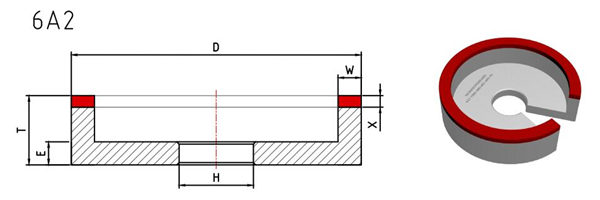

Model: 6A2 vitrified diamond wheel, resin diamond wheel, metal diamond wheel
Alias: vitrified bond diamond wheel, pcd grinding wheel
Application: PCD, PCBN, CVD tools grinding

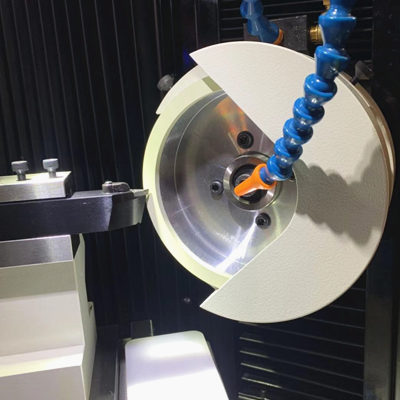

Applications of vitrified diamond wheels for PCD and PCBN tools:
PCD cutting tools, PCBN cutting tools, CVD tools, MCD tools, milling cutter, reamer, drill and regrinding, etc

Advantages of vitrified diamond wheels for PCD and PCBN tools:

• The porous structure of the abrasive improved diamond exposure and can prevent vertical streaks on workpiece and improve surface quality
• Accurately control geometric tolerances to make a good abrasive layer
• Good self-sharpening, high grinding efficiency,high wear resistance and less abrasive grain consumption
• High precision workpiece. pcd tools can reach high efficiency , good surface finish and edge no chipping
• Vitrified bond wheels offer tool life greater than 150 times that of a resin bond wheel and can be easily trued and dressed on the machine
