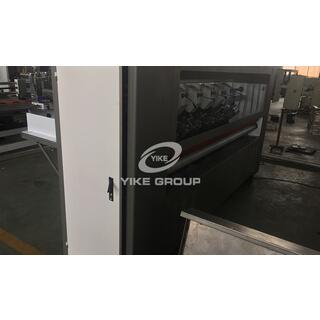

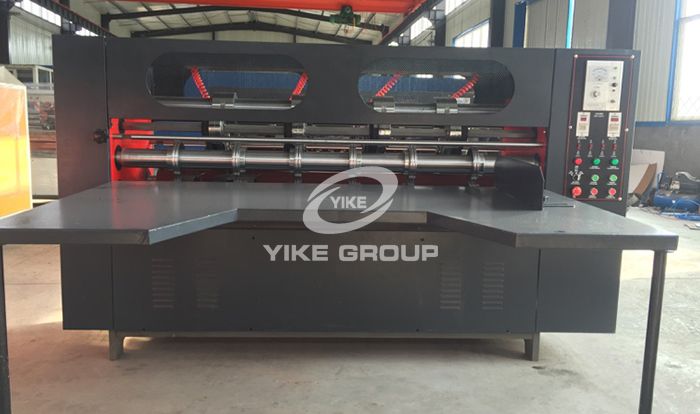

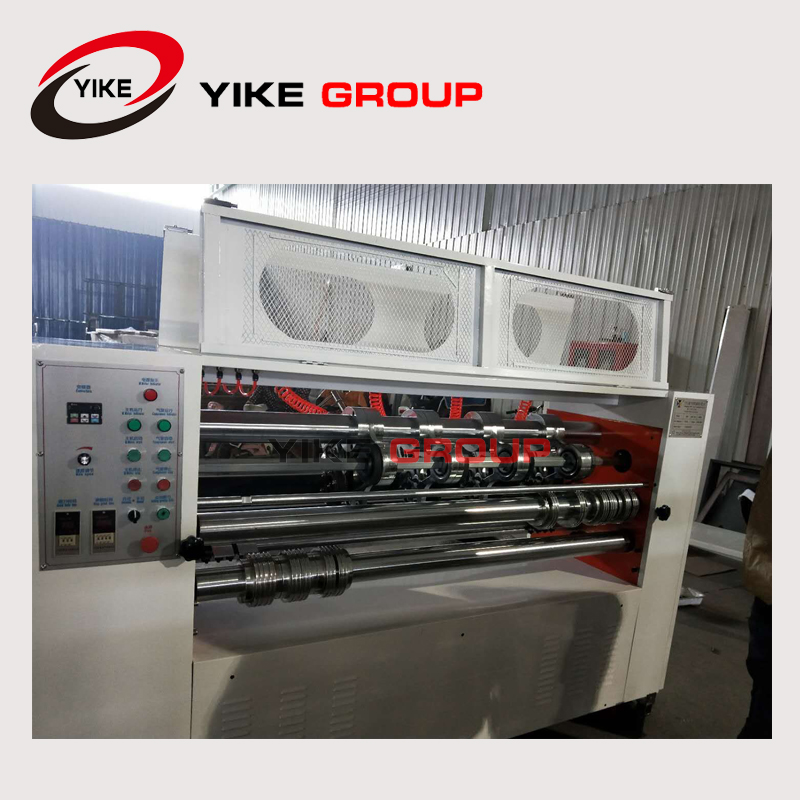

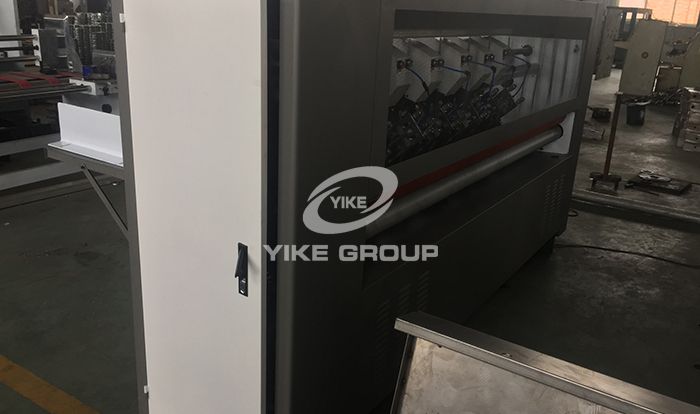

Manual Feeder Thin Blade Slitter Scorer Machine

Available from China Yike Group Co., Ltd.China

Description

• 1. Adopt six roll , two roll-rang feeding, then scoring ,easy to adjustment .It could be do slitting only without scoring, avoid error when scoring.

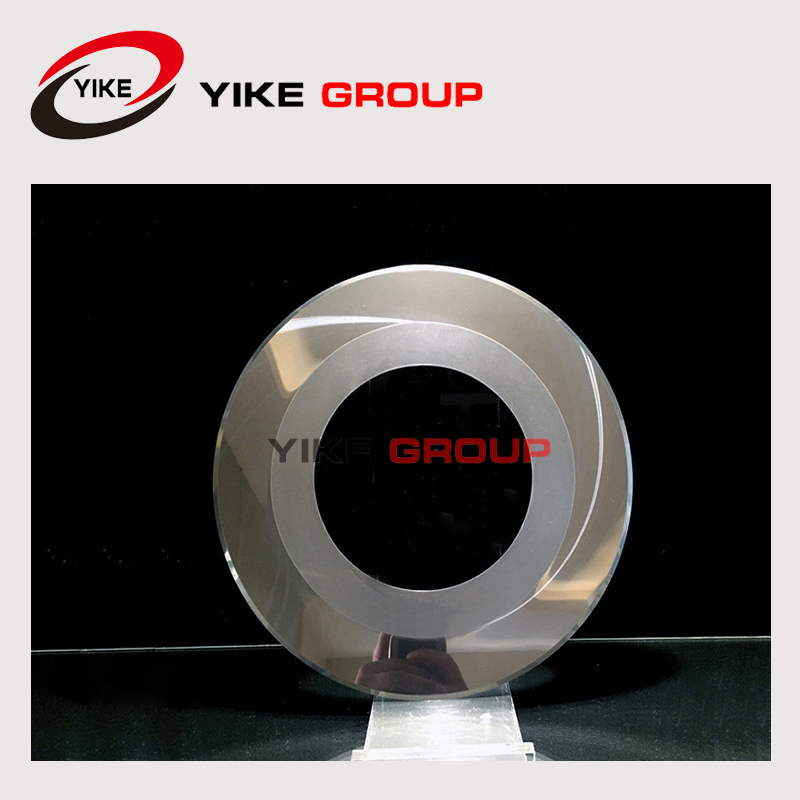

• 2. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
• 3. Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.

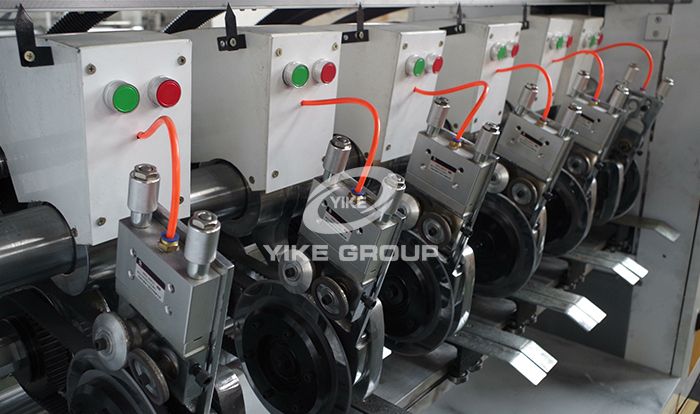

• 4. Grinding part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working, improve work efficiency.
• 5. Adopt China famous brand or imported element, dependable.

Manual adjust blades and lines. Adopt 4 blades, 6 lines.

Specification:

Name Unit Parameter
Width of passing paper board MM 2000
Speed of passing paper board M/MIN 60~80
Number of knives Piece 4
No. of track-pressing wheels Pair 6
Min. dividing width mm 130
Min. track-pressing width mm 30
Diameter of knife mm 105x190
Thickness of knife mm 1.2
Motor power kw 4
Size mm 2850x770x1700
Weight kg 1400

Specifications

Brand
YIKE GROUP
Model
YK-2000; YK-2500; YK-2800
Country of origin
China
