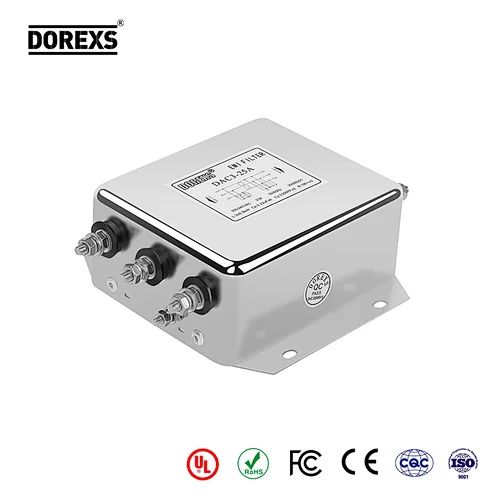

Compact 3 Phase AC Filter For Industrial Equipment

Product group Three-Phase EMI Filter
Brand DOREXS
Model DAC3 30-35A Low Leakage current
Country of origin China
Listed on Jan 10, 2023

Seller information

Visit store
  • No. 99, Jieneng Avenue, Huaikou Town, Jintang County, Chengdu City, China
  • +86 1991569450
  • Manufacturer
  • Established 2008

Description

Report this item

Rated Current:30A-35A
Compact, space-saving design, optimized for industrial machinery
Combines high attenuation performance with low leakage current
Certificate:cUL,CQC,CE,ROHS
Can be customize according to customer requirements.
Support free samples

Three-phase EMI power line filters reduce electromagnetic interference and noise into and out of equipment power lines to meet commercial and military emissions and susceptibility standards. DOREXS offers a wide range of standard and custom 3-phase EMI power line filters for various voltages and currents.

DOREXS' three-phase EMI power line filters deliver industry-leading performance by utilizing current material and design innovations to ensure compliance with the most stringent limits and requirements. In addition, our class-leading compact size saves installation space for all equipment, including inverters and motor drives. With single-stage and multi-stage configurations designed according to international safety standards, DOREXS provides customers with the correct EMI solution on time and within budget. Escort for customer EMCtesting.

Features and Benefits
• DAC3 family of three-phase and neutral line filters provides a cost-effective interference suppression solution for a wide variety of applications

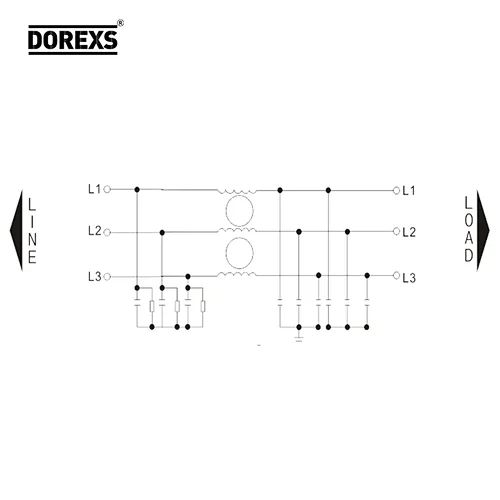

• Available in four versions, with current ratings from 30 to 35 A, the filters employ a single-stage four-wire LC circuit with saturating resistant chokes, and have a very low operational leakage current
• DAC3 3 three EMI filters are contained within an extremely compact metal housing, making them ideal for use in situations where space is at a premium

Technical Specifications
• Rated Voltage:380VAC-440VAC
• working frequency:50/60HZ
• Rated Current:30A-35A
• Withstand test voltage:2750VAC
• Temperature range:-25℃~85℃
• Certificate:cUL,CQC,CE,ROHS
• Fire resistance:UL 94V-0

Typical Applications
• Three-phase system power supply
• All kinds of three-phase system
• power electronic equipment
