High Performance Power AC Noise Filter

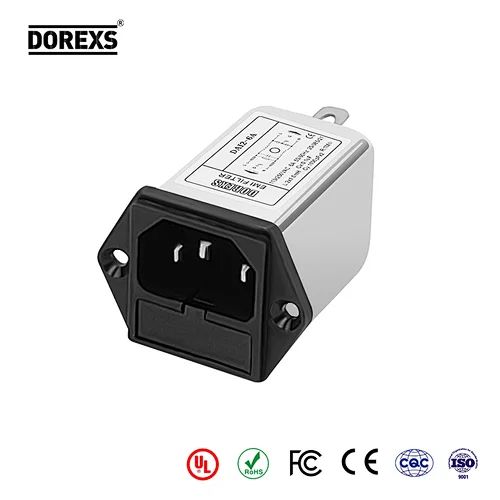

IEC Socket EMI Filter
DAI2 1-10A High Performance
Country of origin

Supplier information

Supplier details

Product description

Report abuse

Rated Current:1A-10A
Excellent attenuation performance
Can be customize according to customer requirements.
Support free samples

IEC intel EMI filters effectively suppress electromagnetic interference and noise entering and leaving equipment power lines to meet commercial and military emissions susceptibility standards. DOREXS offers a wide range of standard and custom single phase IEC EMI power line filters for various voltages and currents. Able to provide reasonable customized services according to customer needs.

DOREXS' Single Phase EMI Power Line Filters deliver industry leading performance by utilizing innovations in materials and design to ensure compliance with the most stringent limits and requirements. And, our class-leading compact size saves space for all equipment types. Our EMI filters are designed in single-stage and multi-stage configurations according to international safety standards, DOREXS delivered the right solution on time and within budget. Escort for the EMCtest of the product.

Features and Benefits
• Exceptional conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
• Wide mounting flanges available
• Rear/front or snap-in mounting
• Different output connections offering maximum flexibility for assembly
• Custom-specific versions are available on request

Technical Specifications
• Rated Voltage:110VAC-250VAC
• working frequency:50/60HZ
• Rated Current:1A-10A
• Withstand test voltage:1750VAC
• Temperature range:-25℃~85℃
• Certificate:cUL,CQC,CE,ROHS
• Fire resistance:UL 94V-0

Typical Applications
• Medical equipment
• Testing equipment
• Fire extinguishing system
• Monitoring and control system
