All-Welded Ball Valve

Product group Ball Valves
Model Q361F
Country of origin China
Listed on Jan 10, 2023

Supplier information

Supplier details
  • Yaoshan Industrial Area, Xingtai, Hebei, China
  • +86-319-8887466
  • Manufacturer
  • Established 2005
  • 140 employees

Description

Report this item

Q361F type all-welded ball valve(PN1.6-PN2.5) are widely used in many kind of industries, which has unique quality and stability which the general cast steel ball valves couldn’t reach. And also the working life of all welded ball valve is longer than cast steel ball valve.

12 month warranty

• Strict inspections before delivery
• Direct factory price
• Fast delivery

Product Name: All-Welded Ball Valve
Model No: Q361F

Brief Introduction of all-welded ball valve:

Q361F type all-welded ball valve(PN1.6-PN2.5) are widely used in many kind of industries, which has unique quality and stability which the general cast steel ball valves couldn’t reach. And also the working life of all welded ball valve is longer than cast steel ball valve.

Characteristics of all-welded ball valve:

1. There is no external leaking for all welded ball valve. The whole fabricating process will be tracked and inspected through digital detector to guarantee the high-precision of the ball body.
2. Because the valve body has the same material with the pipes, so there is no shape change when the earthquake happens or the car is passing.
3. The sealing ring is using the RPTFE material with 25% Carbon to guarantee zero-leaking.

Applications of all welded ball valve:

All welded ball valve is widely used in urban gas pipe system, city heating supply system, petrochemical industry, shipbuilding, iron and steel industry, regulator station, power station pipeline system, etc.

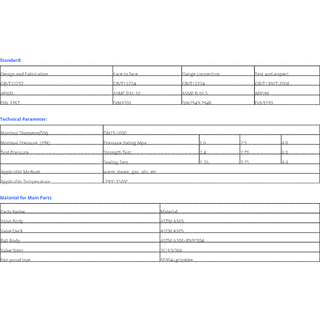

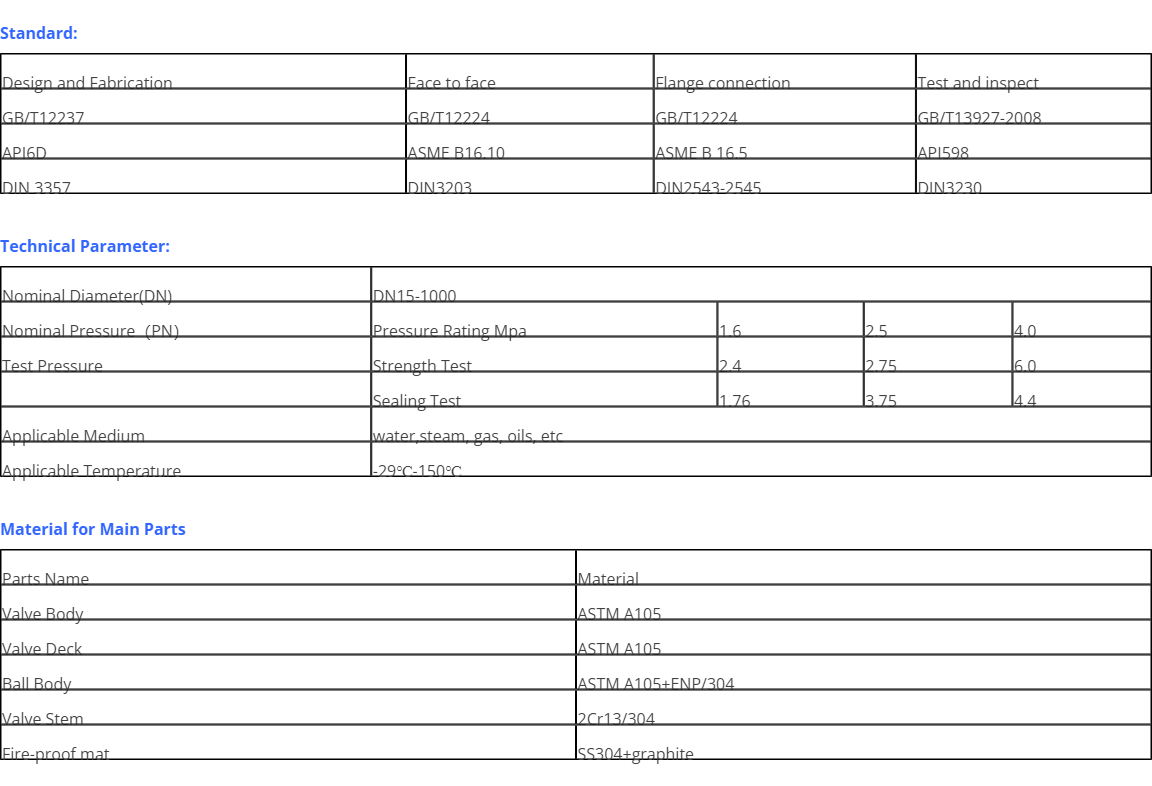

Additional information:

DN: 15-1000
PN: 1.6/2.5/4.0Mpa
Mediums: water,steam, gas, oils, etc
Working temperature: -29℃-150℃
