Description

Report this item

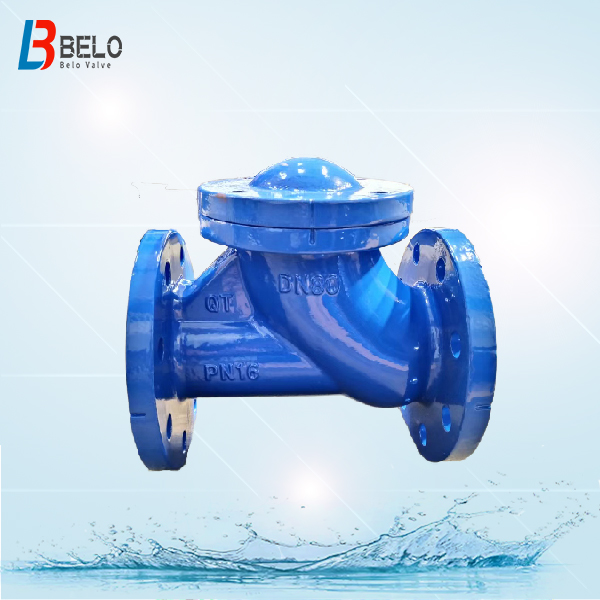

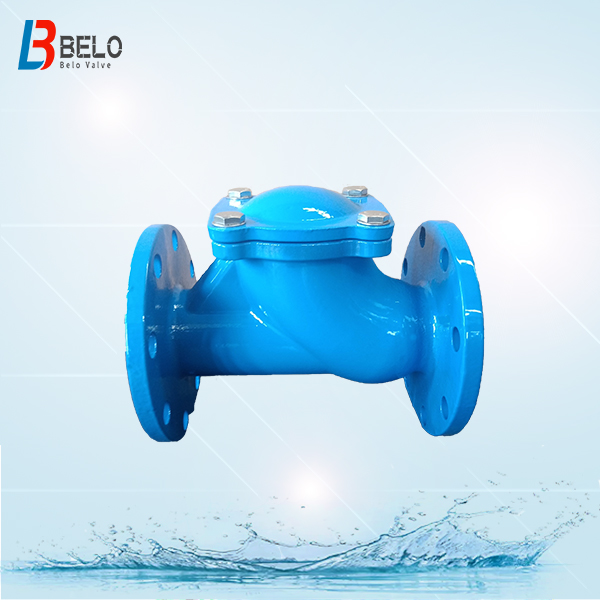

This wear-free ball type check valve uses a rubber-covered ball as the valve disc. Under the flow of the mediums, the ball can roll up, down, left and right on the integral slideway inside the valve body to open and Close the mediums. Silencing closing, no water hammer, reliable sealing performance. The valve body adopts a full water flow channel, with large flow, small flow resistance, 50% less head loss than the swing check valve. It can be installed horizontally or vertically.

12 month warranty

• Strict inspections before delivery
• Direct factory price
• Fast delivery

Product name: DIN ball type check valve
Model No.: (DIN) HQ41X-16Q-100

Brief introduction of ball type check valve:

This wear-free ball type check valve uses a rubber-covered ball as the valve disc. Under the flow of the mediums, the ball can roll up, down, left and right on the integral slide-way inside the valve body to open and Close the mediums. Silencing closing, no water hammer, reliable sealing performance. The valve body adopts a full water flow channel, with large flow, small flow resistance, 50% less head loss than the swing check valve. It can be installed horizontally or vertically.

Characteristics of ball type check valve:

short structure length, small in size, light in weight.
Rapid closing, small water hammer pressure.
Its easy to be installed horizontally or vertically.
Smooth flow channel and small flow resistance.
Applications of ball type check valve:

This ball type check valve can be used in cold water, hot water, industrial and domestic water pipe network systems, and also is suitable for submersible drainage and sewage pumps.

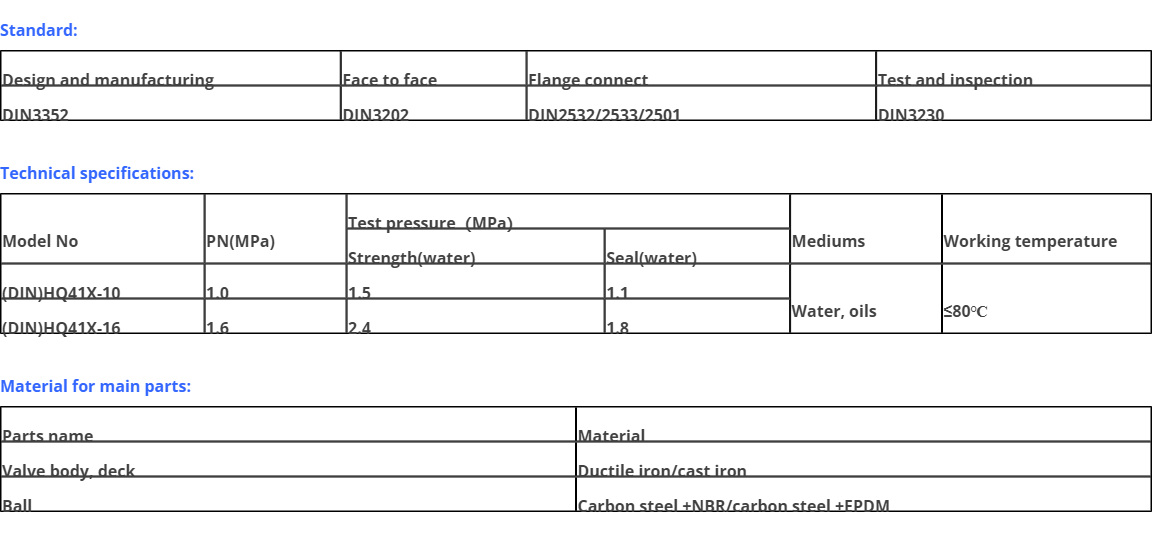

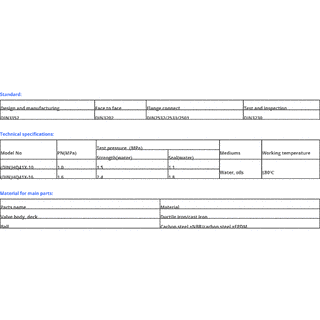

Additional information:

DN: 50-1200
PN: 1.0Mpa/1.6Mpa
Mediums: water, oils
Working temperature: ≤80℃
