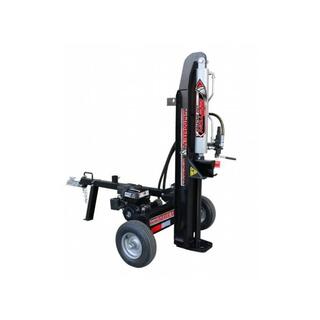

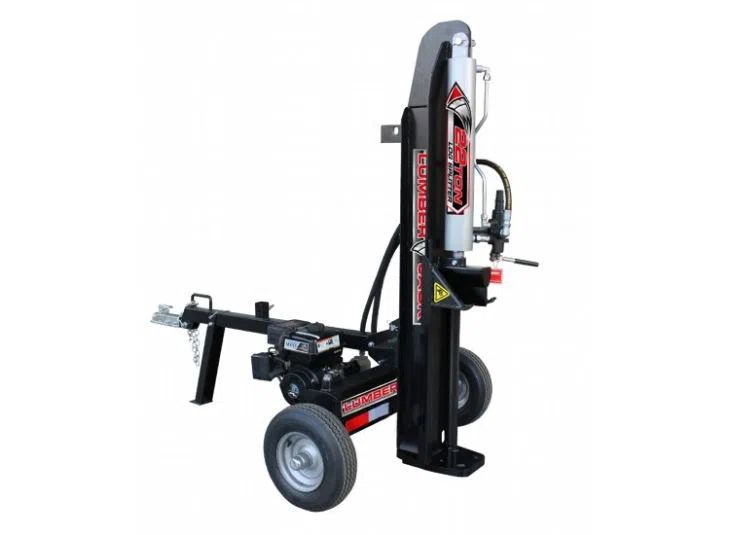

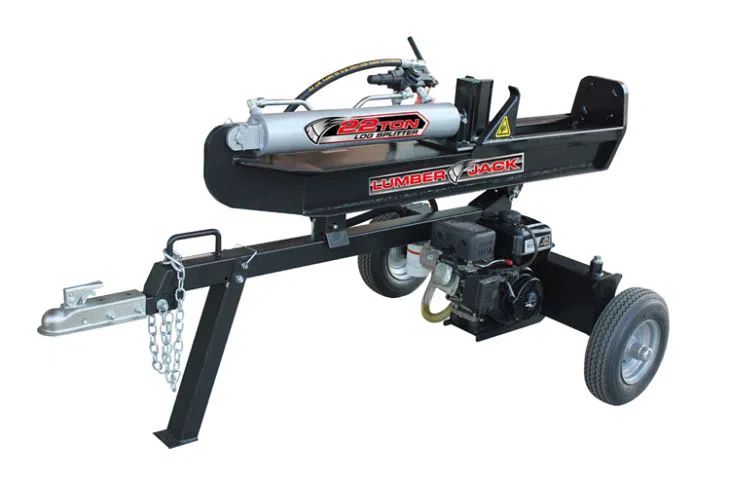

Automatic Return Hydraulic Log Splitter


The series hydraulic log splitter combines the robust and practical design of our larger models with the splitter easy to store. This splitter can develop 22ton of splitting power and can be used horizontally for easy to lift logs and vertically for larger tree rounds that physically cannot be lifted to the horizontal splitting height.


Max. Splitting Force: 22Ton
Cycle Time: 11.5s
Engine: 6.5HP engine
Max. Log Length: 26 inches (660mm)
Cylinder: 4” x24-1/2”
Pump: 11GPM, 2-Stage
Hydraulic Capacity: 6.5Gal / 24.6L
Wedge: 8” Hardened Steel
Valve: Auto-return
Wheel: 16” DOT. (4.8-8)
Filter: Spin-on replaceable
Max. Towing Speed: 45 mph
Net/Gross Weight: 408/475LBS (185/215.7KGS)
Package Dimensions: 75.2”x18.9”x29.5” (191x48x75cm)
Container Quantity: 80PCS/40’GP
