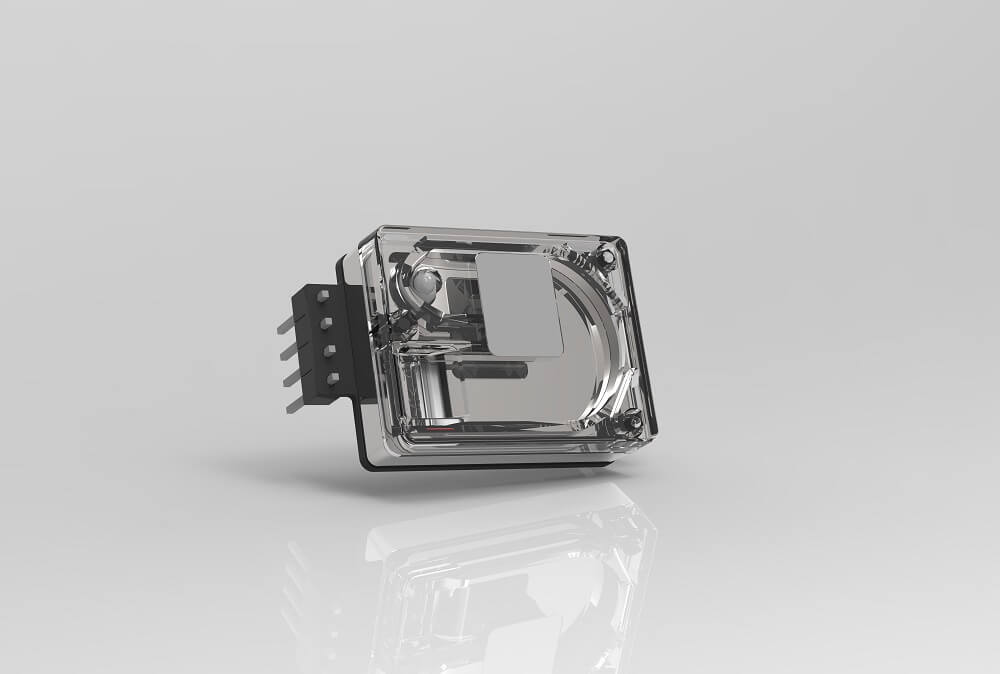

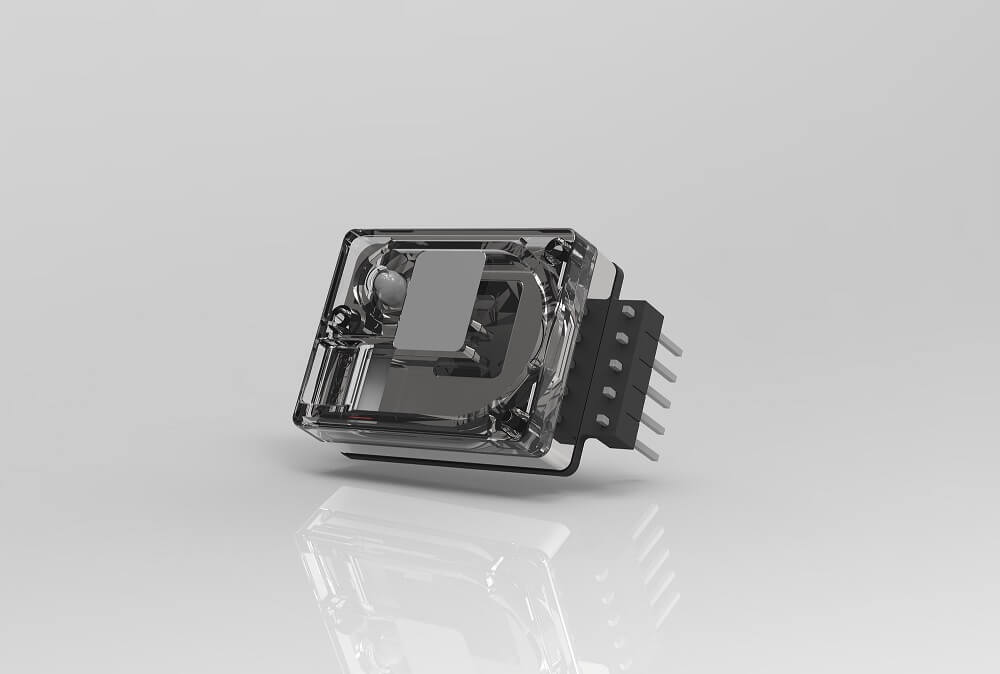

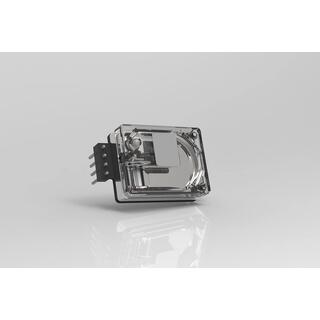

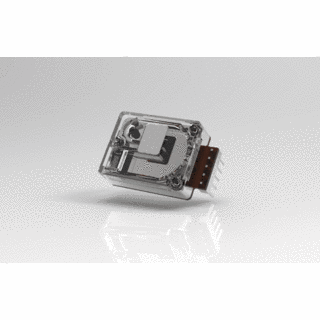

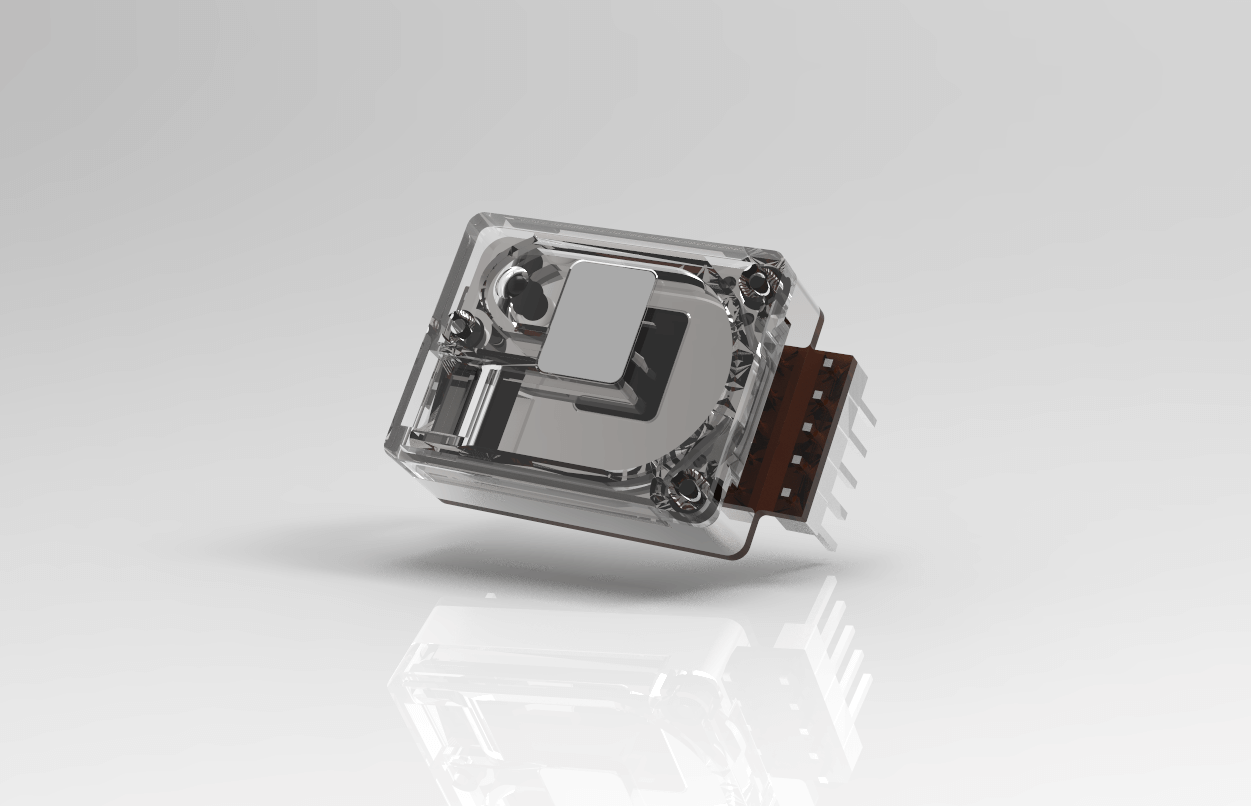

NDIR Carbon Dioxide Gas Sensor, Maintenance-free

CO2 Sensors
Country of origin

Supplier information

Supplier details

Product description

Report abuse


NDIR Carbon Dioxide Gas Sensor Provider: CO2 Gas Sensors, Non-dispersive Infrared (NDIR), Maintenance Free, Automatic Calibration, 400-5000ppm Range.

Features & Specifications:


• Non-dispersive infrared (NDIR) principle
• Easy to install
• Long service life (after strict reliability test)
• Automatic calibration
• Maintenance free
• High sensitivity to CO2
• Low power consumption
• High measurement range (Products with more than 10000ppm range can be customized.)
• Full range temperature compensation
• NDIR dual-channel technology

Application Environments:

• Fresh Air System
• Central Air Conditioning
• Breeding and Planting
• Industrial Monitoring
• Environmental Protection

Specification Parameters:

Measurement Range: 400-5000ppm
Measurement Precision: ±(50ppm + 5% reading)
Power-on Settling Time: 30s
Data Refresh Rate: 2s
Zero Setting Cycle: The sensor is automatically calibrated every 15 consecutive power-on days (optional). (Automatic calibration is not enabled by default in 15 days.)
Working Condition: -10-50℃; 0-95% RH (non-condensing)
Storage Condition: -30-70℃; 0-95% RH (non-condensing)
Working Voltage: DC (5.0±0.1) V, Ripple<50mV
Mean Operating Current: <40mA
Communication Interface: UART TTL (3.3V)
Size: 33 x 21 x 17.2 mm
Product Life: ≥10 years

Product Classification:

PN: CS200
Range (ppm): 400-5000
Product Type: CO2
Packing Specification: 90 pcs/layer, 7 layers/ctn
L*W*H (mm): 510*295*295
