High Performance Type Drag Chain Control Cable

Product group Drag Chain Control Cable
Country of origin China
Listed on Jan 21, 2023

Supplier information

Supplier details
  • 199 Hengxiang Road, Waigang Town, Jiading District, Shanghai, 201806, China
  • +86 13321979392
  • Manufacturer
  • Established 1998
  • 500 employees

Description

Report this item

High performance drag chain control cable with PUR sheath:

PUR sheath, TPEE insulation, extrusion structure.

Shielded cables have extruded inner sheath, 12 cores or more with double stranded structure.

Conductors : Type 6 copper wire.

This type of cable is mainly used in indoors environment, with a maximum speed of 8m/s, a distance of more than 50 meters, and a minimum bending radius of 7 times.

It has good oil and low temperature resistance and can be used in low temperature environment of -20℃, and resistant to hydraulic oil (for outdoor use and low temperature resistance of -40℃ can be customized).

Applicable industries: machine tools, laser cutting machine, CNC turret punch, high-speed long stroke truss manipulator, metallurgy, railway track crane, port machinery (need to be customized), etc

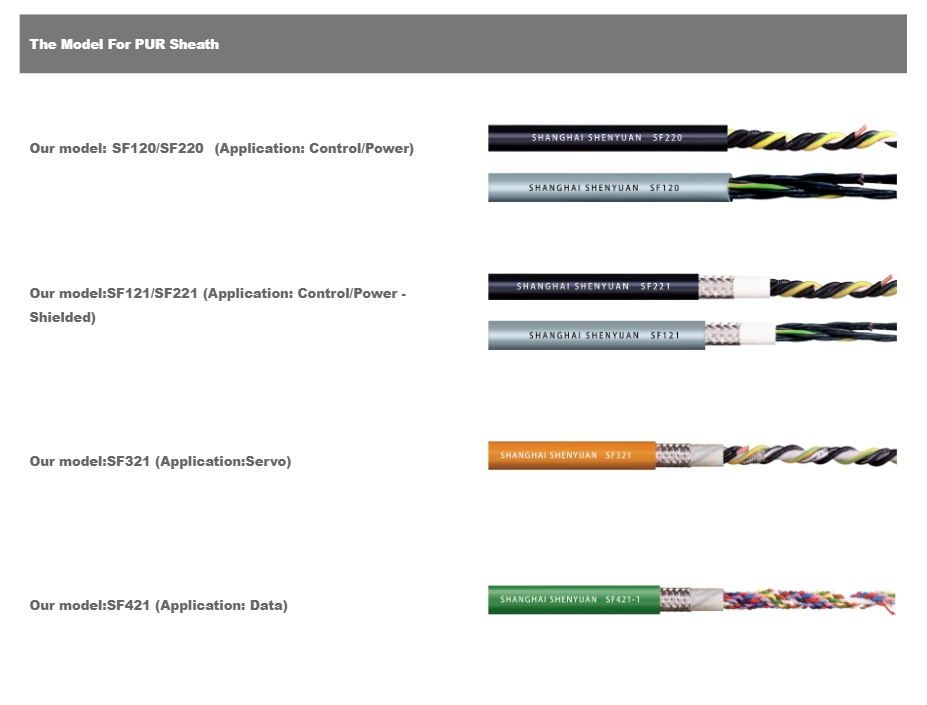

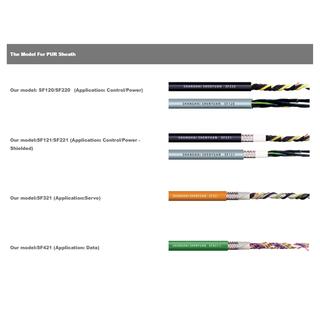

The Model For PUR Sheath :

Our model:SF120/SF220 (Application: Control/Power)
Our model:SF121/SF221 (Application: Control/Power - Shielded)
Our model:SF321 (Application:Servo)
Our model:SF421 (Application: Data)

High performance drag chain control cable with PVC sheath:

PVC sheath, PP/PVC insulation (PVC insulation for 6mm2 and above), extruded structure.

The cables with PVC shield have extruded inner sheath, 12 cores or more with double stranded structure.

Conductors: Type 6 copper wire.

This type of the cable is mainly used in indoors environment, the maximum speed can reach 5m/s, the best stroke is within 30m (the longest length is 50m), the minimum bending radius is 7.5 times, the low temperature resistance is general, the minimum temperature for mobile use is -5℃, the fixed installation is -20℃, oil resistance (oil resistance cable can be customized).

Suitable for using in the industry : machine tool, laser cutting machine, woodworking machinery, truss manipulator, textile machinery, etc

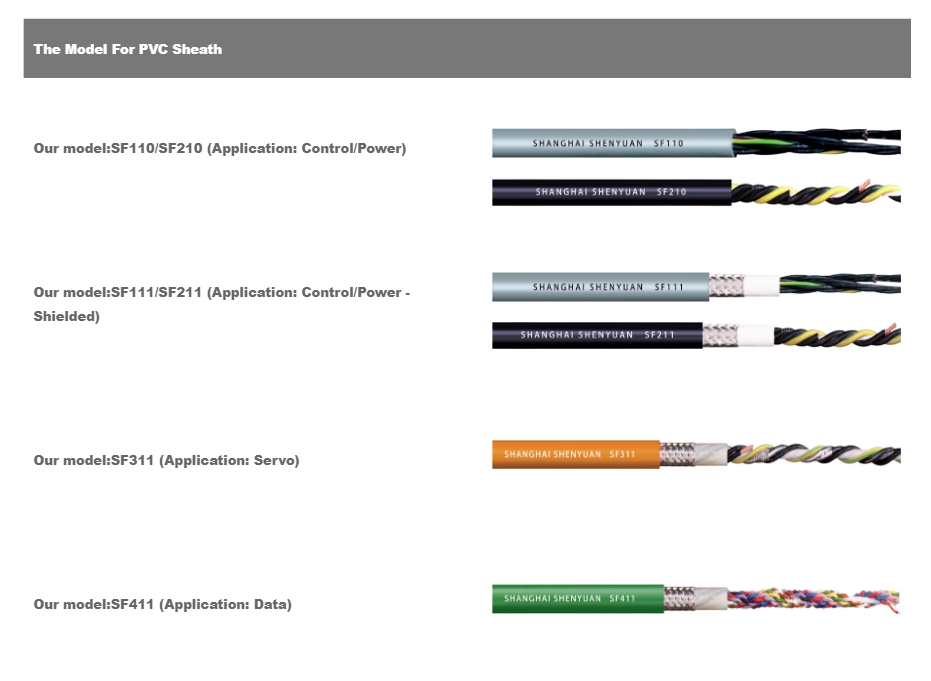

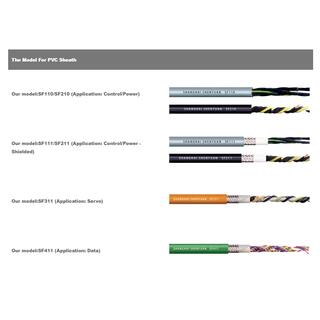

The Model For PVC Sheath:

Our model:SF110/SF210 (Application: Control/Power)
Our model:SF111/SF211 (Application: Control/Power - Shielded)
Our model:SF311 (Application: Servo)
Our model:SF411 (Application: Data)
