Lab Multi Layer Co-Extrusion Line

Category Lab Small Extruder
Brand Hantek
Country of origin China

Seller information

Visit store
Hartek Technologies Ltd
1st Floor, West Side of Building 1, No. 8 South Street, Agricultural Research Institute, Shiji Town, Panyu District, Guangzhou City, Guangdong Province, China
+86 20 34837127

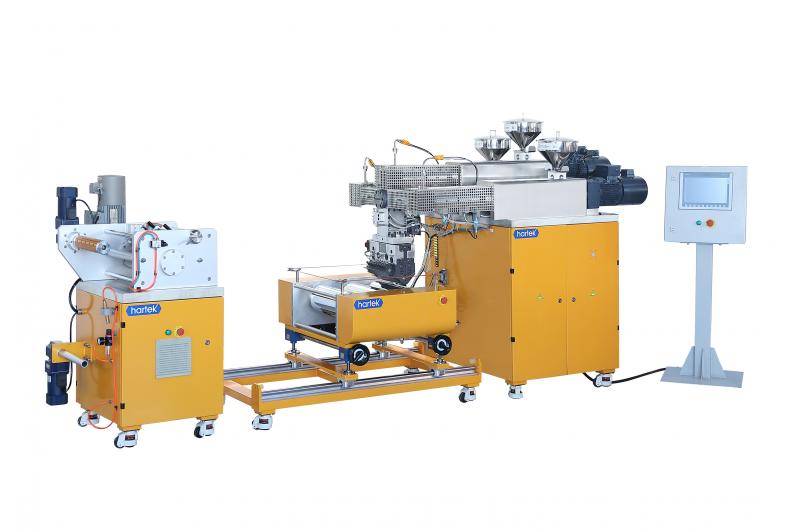

The Lab multi layer casting film co-extrusion line is composed of driving system, extrusion system, die head, roll system, traction system, winding system and electrical control system.

It is applied to the conventional plastic extrusion&molding. It is an ideal tool for research institute cause of it’s Miniaturization, intelligentize and high precision.

Main Function & Features:

1. Adopting international brand control motor for the extruder to make the plasticization stable and constant.
2. Using brand melt pressure and temperature sensor to ensure high accurate data.
3. Adopting Simens PLC control systems and friendly HMI which are highly intelligent and easy to operate
4. Formula Storage function.
5. Emergency stops and safety protection devices to protect the safety of the operator.

Technical Data:

Material Applicable: PP, PE, PET, compounding materials etc
Screw Diameter: 25mm
Screw L/D ratio: 28:01:00
Motor power: 4kW
Max. Output: Each extruder 0.5-5kg/h,total 1.5-15kg/h for 3 sets
Max.rotation speed/set: 120rpm
Film width: 20mm- 100mm
Film thickness: 0.1-1mm
Max. temperature: 350℃
Temperature control accuracy: ±1℃
Working voltage: 380 V±10%, 3 phases, 50 Hz
Control Method: Siemens PLC control
