Description

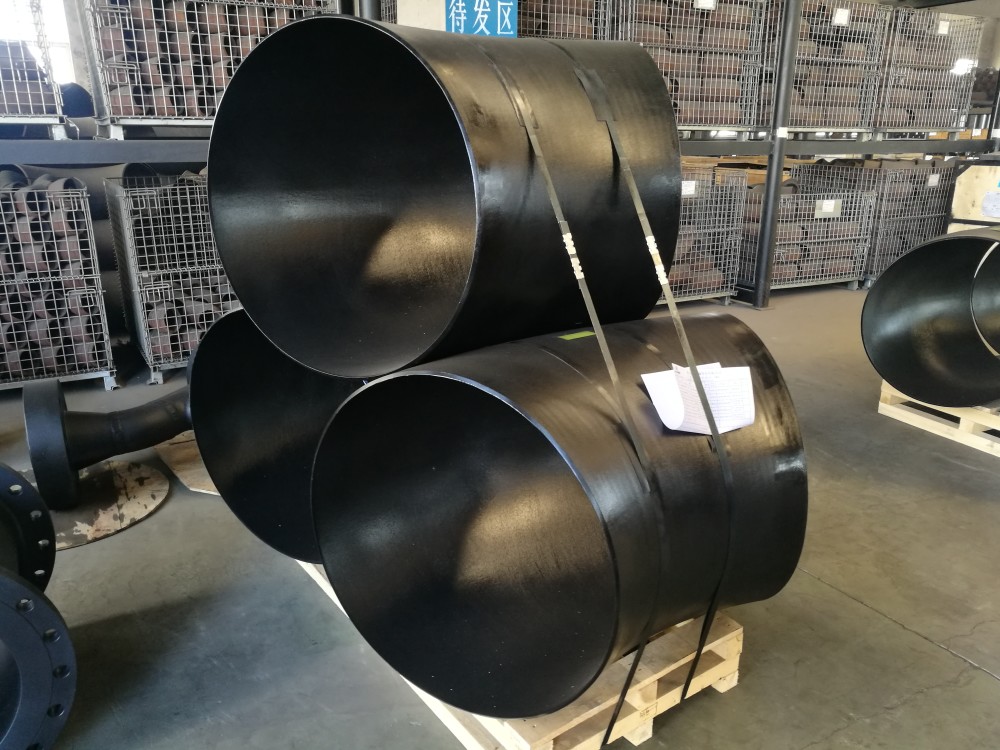

Elbow is a common connection in plumbing installation, used for the connection of the pipe bend, used to change the direction of the pipe.

Name: 90°long radius elbow,90°short radius elbow,45°long radius elbow,45°short radius elbow,180°long radius elbow,180°short radius elbow
Size: Seamless elbow: 1/2"-24" DN15-DN600./Welded Elbow: 4"-72", DN150-DN1800.
Wall Thickness: sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, sch120, sch140, sch160, xxs, std, sch5s, sch20s, sch40s, sch80s.
Standard: ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313
Material: Carbon Steel ASME / ASTM SA / A234 WPB, DIN 1.0405
Material: Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Surface: Anti-rust oil, clear lacquer, Black lacquer, Yellow lacquer,hot-dipped Galvanized

Specifications

Country of origin
China
