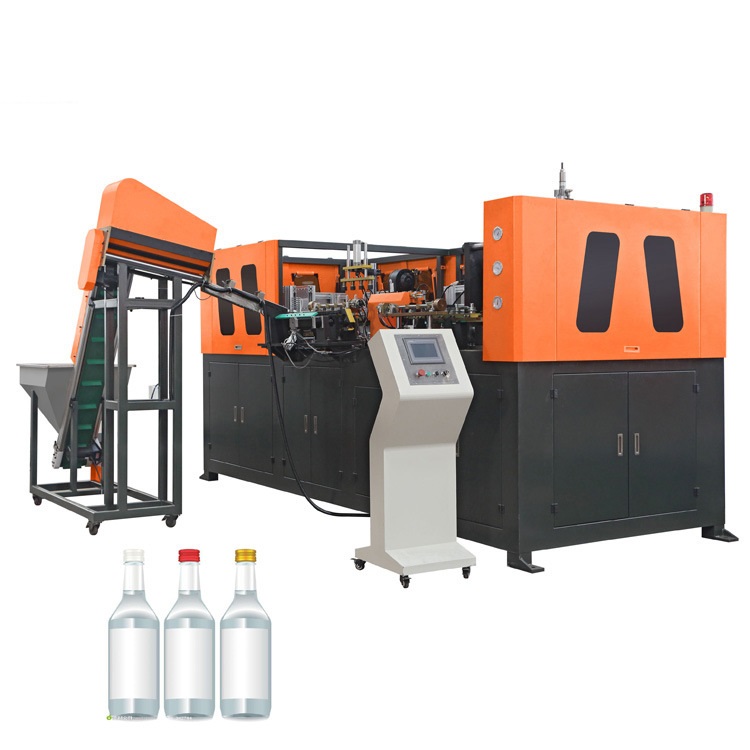

PLC Plastic Bottle Blow Molding Machine

Category
Blow Molding Machine
Country of origin
China

Supplier information

Supplier details
Manufacturer
China

Product description

Key Specifications / Features:

1. Fully automatic
2. Easy to operate and maintain
2. Stainless steel material
3. Separated control cabinet (touch screen, PLC)
4. CE, SGS, ISO 9001
5. Low cost
6. Ideal cooling system
7. Low rejection rate

Pet bottle blowing machine can make you receive a fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble-shooting, maintenance and other benefits. Stable performance with advanced PLC. Automatic preform conveyer to save human cost. Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improves the bottle shaping rate, increases the production. High adjusting performance to enable preheat the preforms perfectly by adjusting the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable. High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfectly safe environment, in case of the breakdown in certain procedure.

Theoretical output (PCS/H): 3300, 4500, 6500, 18000
Volume (L): 1.5, 5
Max.height (mm): 360
Max.diameter (mm): 105, 195
Number of cavities: 2, 3, 4, 6
Mould plate diminsion (mm): 430*360, 600*360, 820*360
Mould thickness (mm): 190, 280
Mould opending stroke (mm): 110, 200
Power: 220-380
Total power (kw): 18, 25, 35
Heating power (kw): 15, 22, 32
Operation Pressure (mpa): 0.8-1.0, 0.8-1
Action Air Consuming (m3/min): >1.6, >2
Blowing Pressure (Mpa): 2.6-3.0
Blowing air consuming (m3/min): >2.4, >3.2, >4.8, 3.4*1.9*2
Main body dimension (M): 2.7*1.45*2.0, 3.4*1.9*2, 4.4*1.9*2, 3.4*1.9*2.1
Main body weight (KG): 2000, 2600, 3200
Preform autoloabe (M): 1.6*0.85*2.2
Preform autoloader weight (KG): 200
