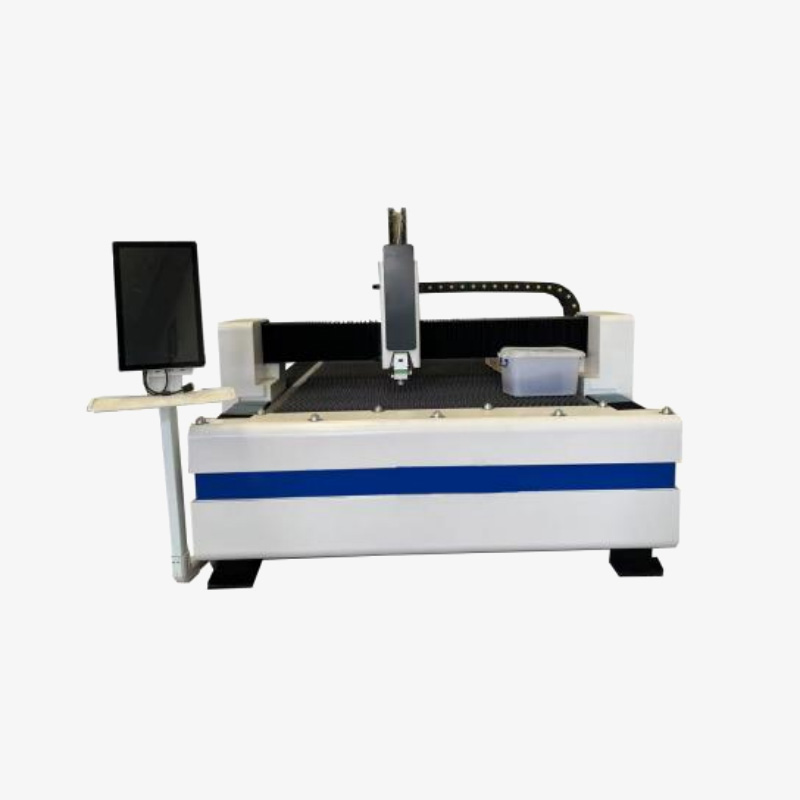

SRF-A Laser Cutting Machine

Category Fiber Laser Cutting Machine
Brand Jinan SR-Tech
Model SRF-A
Country of origin China

Seller information

Visit store
Jinan SR-Tech Machinery Co Ltd
Room 530A7, Building 3, University Science and Technology Park, No. 750, Xinyu Road, High-Tech Zone, Jinan City, Shandong Province, China
+8618765574978
Manufacturer
Established 2018
200 employees

Description

Technical parameters:

Model: SRF3015A/SRF4015A/SRF6015A/SRF4020A/SRF6020A
Working size: 1500*3000mm;4000*1500mm;6000*1500mm;4000*2000mm;6000*2000mm;
Laser power: 1000w,1500w,2000w,3000w,6000w,12000w as options
Laser source: Max/Raycus/IPG
Control system: Cypcut
Motors&drivers: Japan Fuji/Yaskawa
Laser head: Raytools/WSX/Germany Precitec
Acceleration: 0.8-1.4G
Max Movement Speed: 80-140m/min
Working voltage: 380V/3PH/50/60HZ

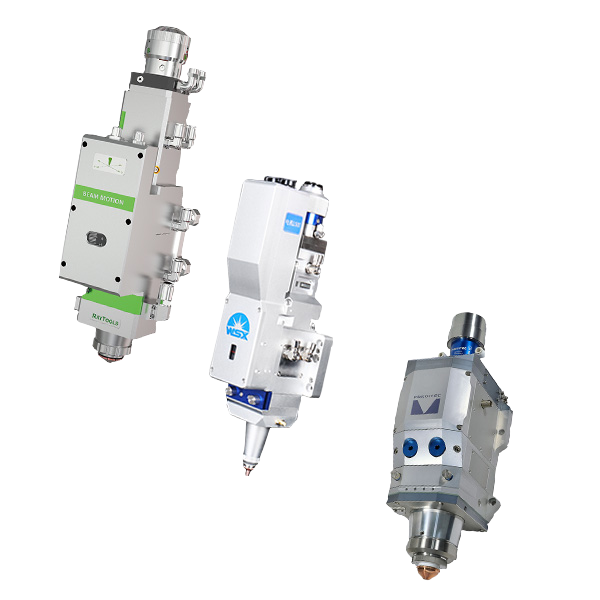

Laser head:

Excellent design:
Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency;

Auto focus:
Automatic focusing, reducing human intervention, automatic focusing range - 12~+10mm, focusing accuracy 0.05mm;

Optional brands:
Raytools, WSX, Germany Prcitec laser head as options.

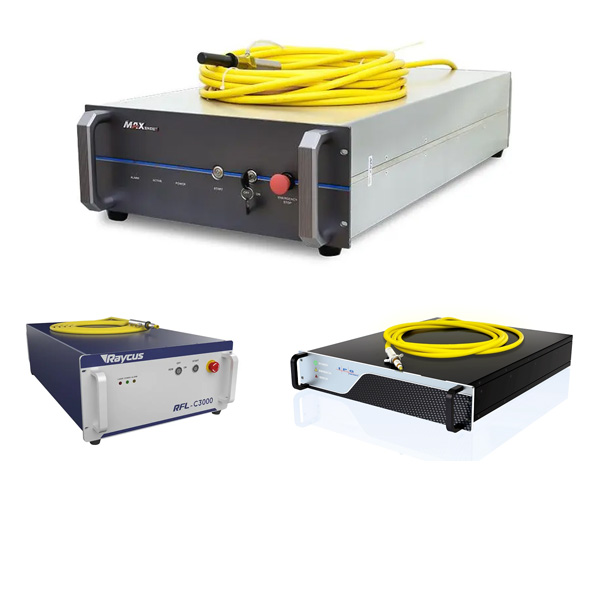

Laser source:

All the laser source has a long life span up to 100000 hours, and with warranty 2 years.
Max, Raycus, IPG source as options.

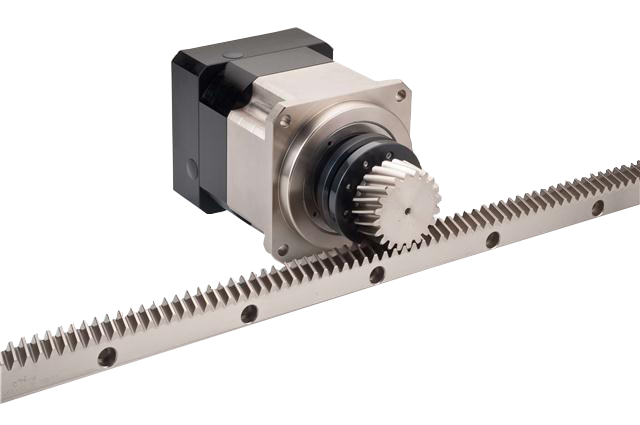

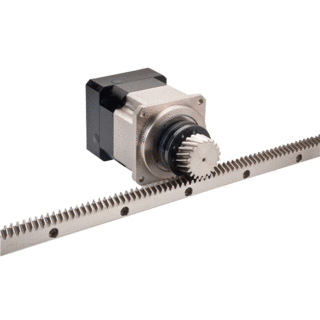

Rack & Pinion:
The machine transmit with Taiwan YYC rack, high precision and ensure the machine fast speed.

Applications:

Materials: Cutting a wide variety of metal plates, tubes, mainly applicable to stainless steel, carbon steel, manganese steel,galvanized sheet, a variety of alloy plates, rare metal and other materials cutting.
Industry: kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc.
