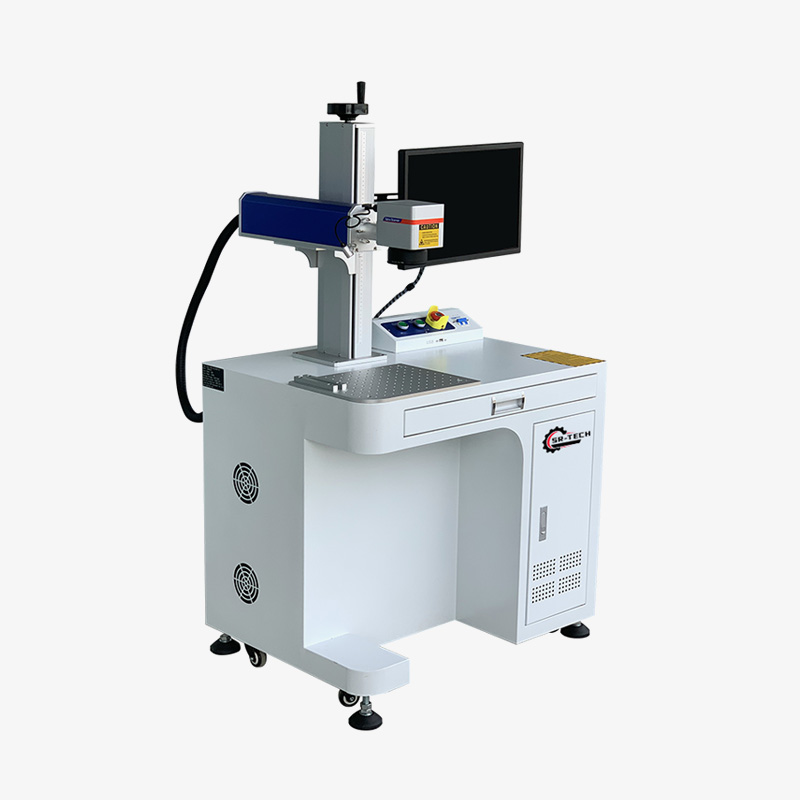

SR-D Fiber Laser Marking Machine


Technical parameters:

Model: SR-D
Working area: 70*70mm, 100*100mm, 200*200mm, 300*300mm (as options)
Laser source: Max/Raycus/JPT/IPG (as options)
Cooling mode: Air cooling
Control system: BJCZ
Marking speed: ≤7000mm/s
Minimum line width: 0.02mm
Resetting position accuracy: ±0.01mm
Support graphic format: DXF, PLT, AI, BMP, JPG, etc.
Working voltage: AC 220V 1Ph 50HZ(support customize)

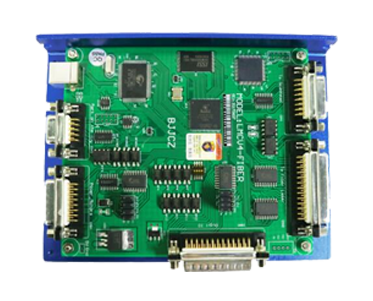

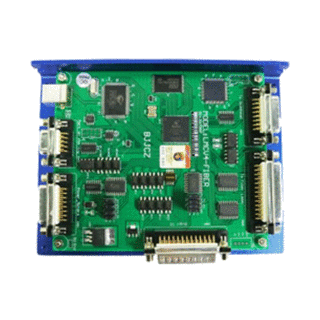

EZCAD Controller:

Support Windows system, stable, easy to operate and install.


Best brand Sino, Digital signal, high precision and speed.

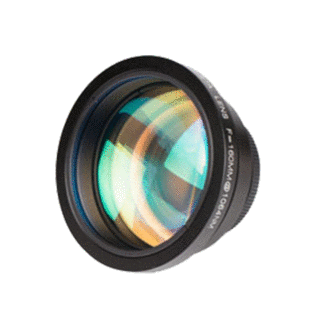

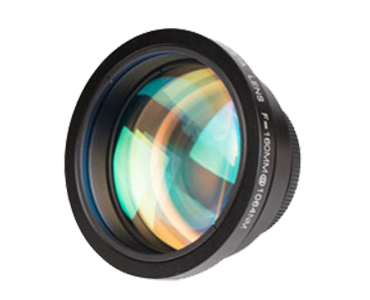

Filed lens:

Famous brand lens to provide precision laser,
Multiple working area as options: 75*75mm, 110*110mm, 175*175mm, 200*200mm, 300*300mm etc.


Logos, certification symbols, barcodes, serial codes, and 2-D data matrix code
Simple custom text, serial numbers, bitmaps, graphic and CAD-files (HPGL)
Rapid marking on precious metals with heat-sensitive materials
Plastic materials: day & night design for items such as mobile phone keyboards, dashboards, and other illumination components for aerospace and automotive markets
