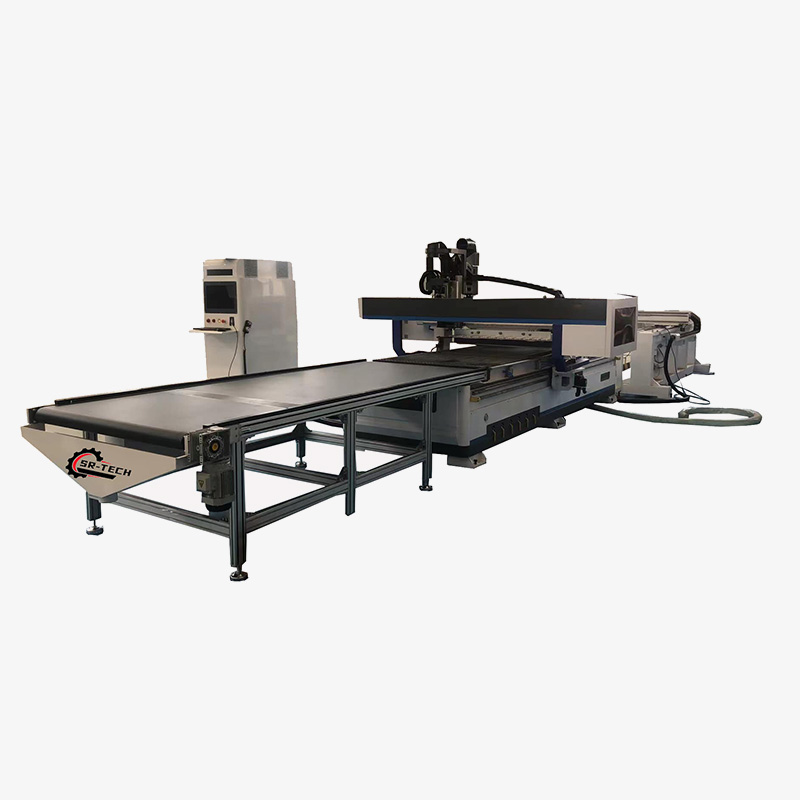

SRC1325AF Auto Feeding CNC Router Machine

Description

Technical parameters:

Model: SRC1325AF/SRC1530AF/SRC2030AF/SRC2040AF
Working size: 1300*2500mm;1500*3000mm;2000*3000mm;2000*4000mm
Z-axis clearance: 200mm/300mm
Processing Accuracy: ±0.2mm
Spindle power: 9kw
Spindle speed: 0-18000mm/s; 0-24000mm/s
Max.working speed: 25000mm/min
Inverter: 11kw Folin Inverter(Taiwain Delta as options)
Table: T-slot working table/Vacuum working table
Transmission: Helical rack
Repeatability: ±0.03mm
Woking Command: G code
Voltage: 380V/3ph/50/60HZ

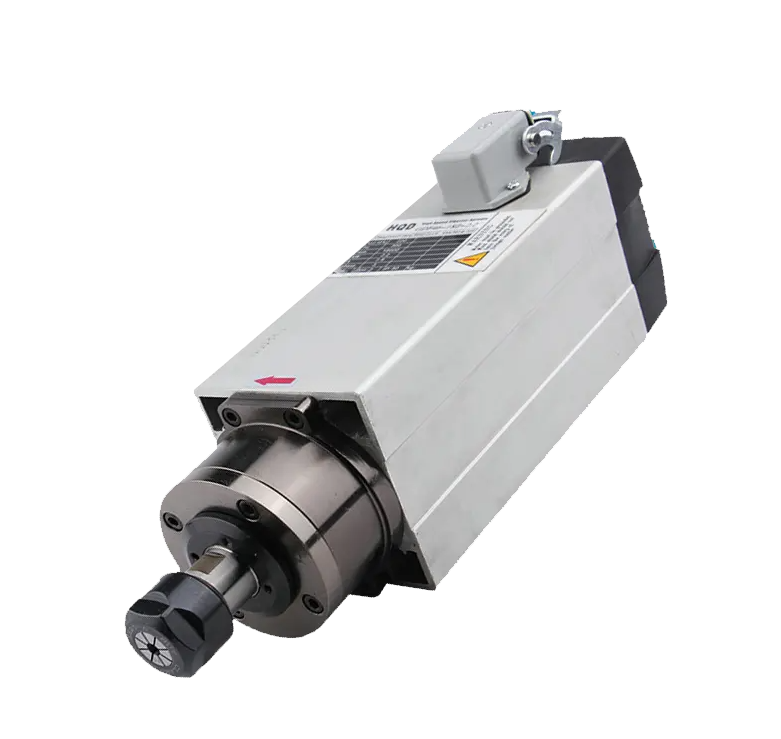

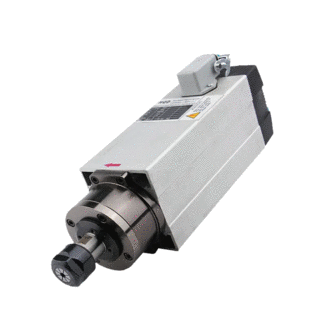

Air cooling spindle with auto tool change:

9KW High Quality air cooling spindle with 24000rpm to make sure accurate cutting and drilling
Linear auto tool change/disc tool change as options

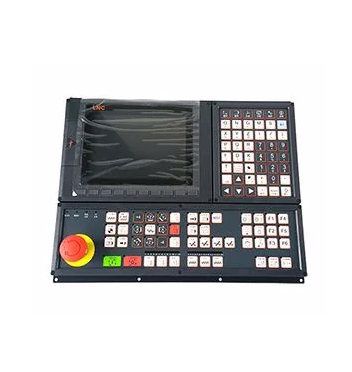

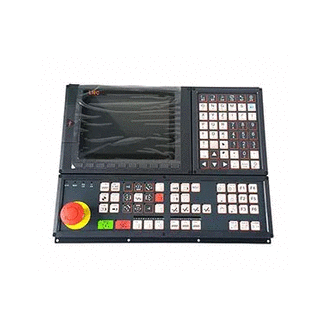

Taiwan LNC control system:

Intelligent Control System with PC Monitor which is very easy to processing

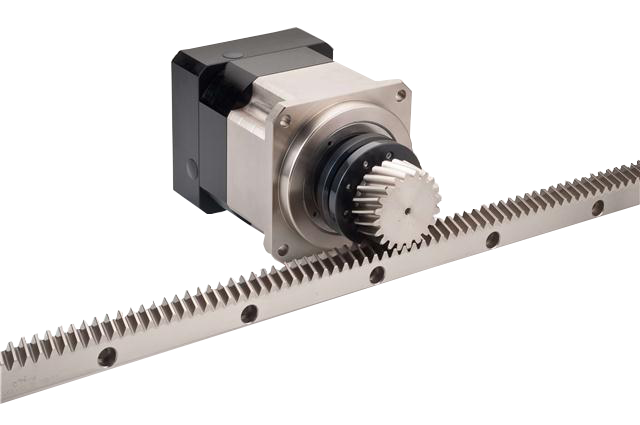

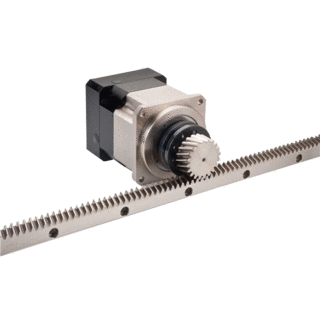

Rack&Pinion:

Helical rack transmission ensure the machine work stable in a high speed.

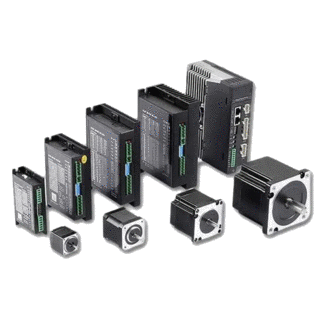

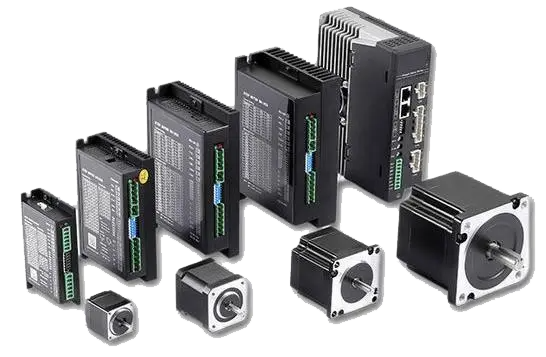

Motors and drivers:

AC Servo Motor with high working speed to improve working efficiency

Applications:

Woodworking Industry: MDF, wood, acrylic, PVC, double-color board, brass, aluminum, marble, crystal.
Advertising Industry: advertising billboard, sign making, acrylic cutting, graphic mold forming and processing of many kinds of advertising terms.
Architectural Model Industry: metal models of copper, aluminum, iron etc, and non-metal models, such as artificial marble, grave, plastic board, PVC, board etc.

Specifications

Brand
Jinan SR-Tech
Model
SRC1325AF
Country of origin
China
