1200a 2MHz Bandwidth Oscilloscope AC Current Clamp on CT S50

Category
AC Current Clamp
Brand
GFUVE
Model
S50
Country of origin
China

Supplier information

Supplier details
Manufacturer
China

Product description

Report abuse

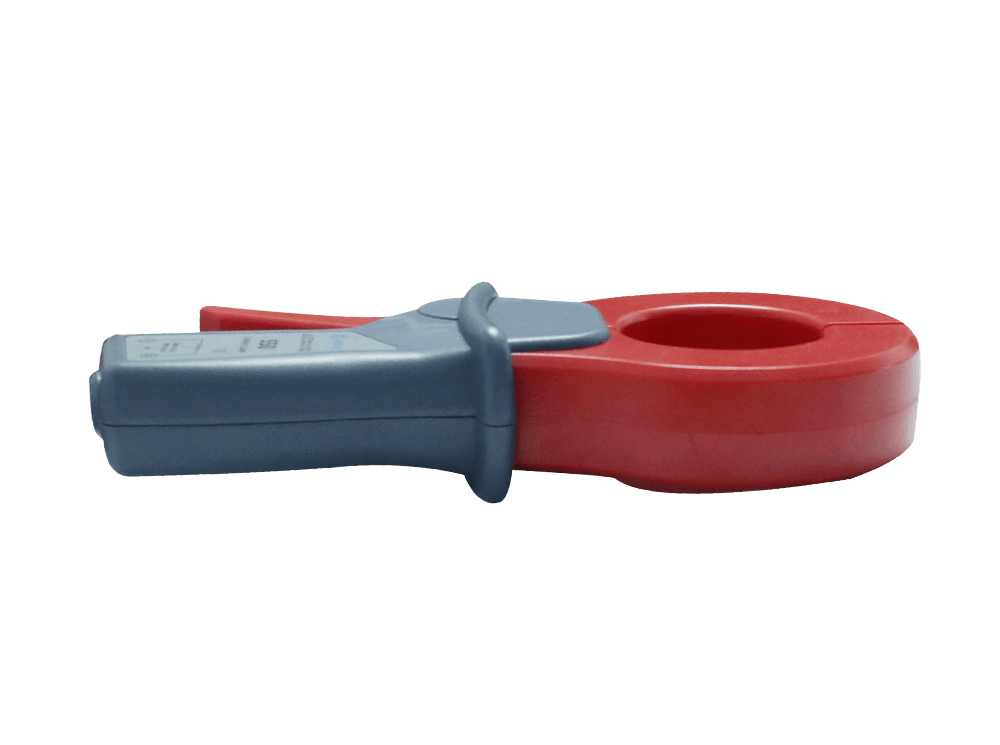

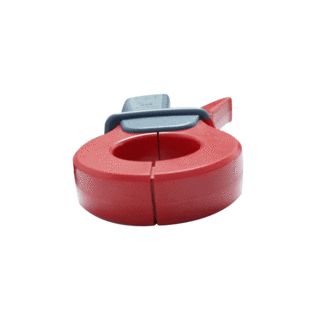

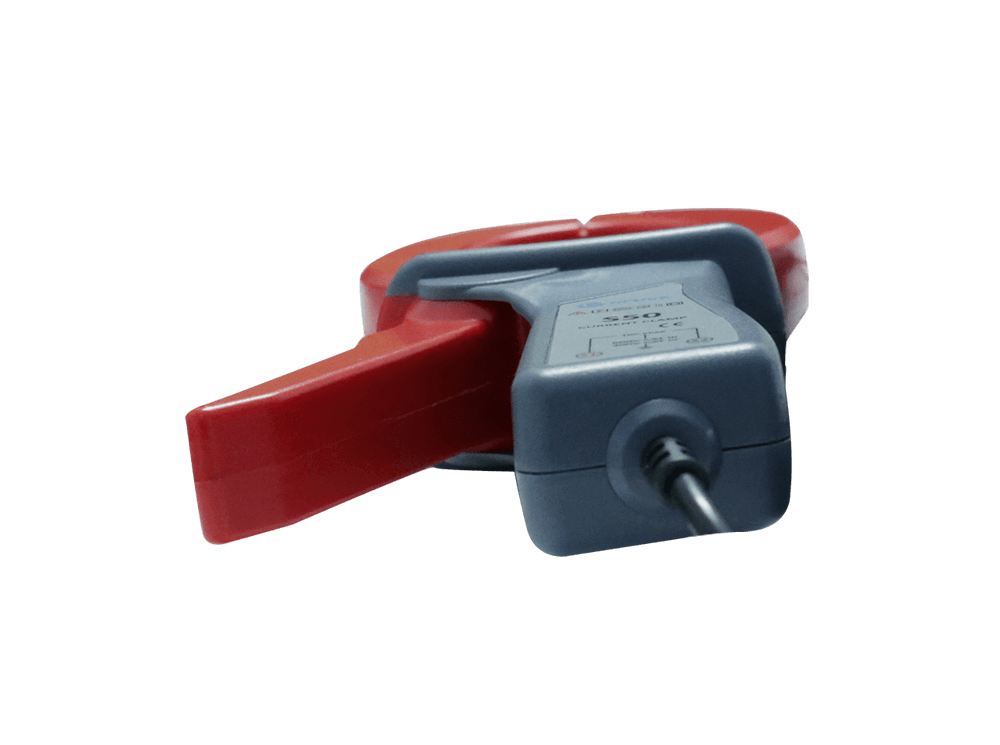

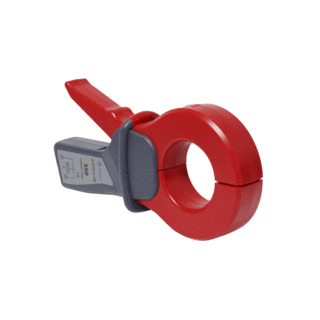

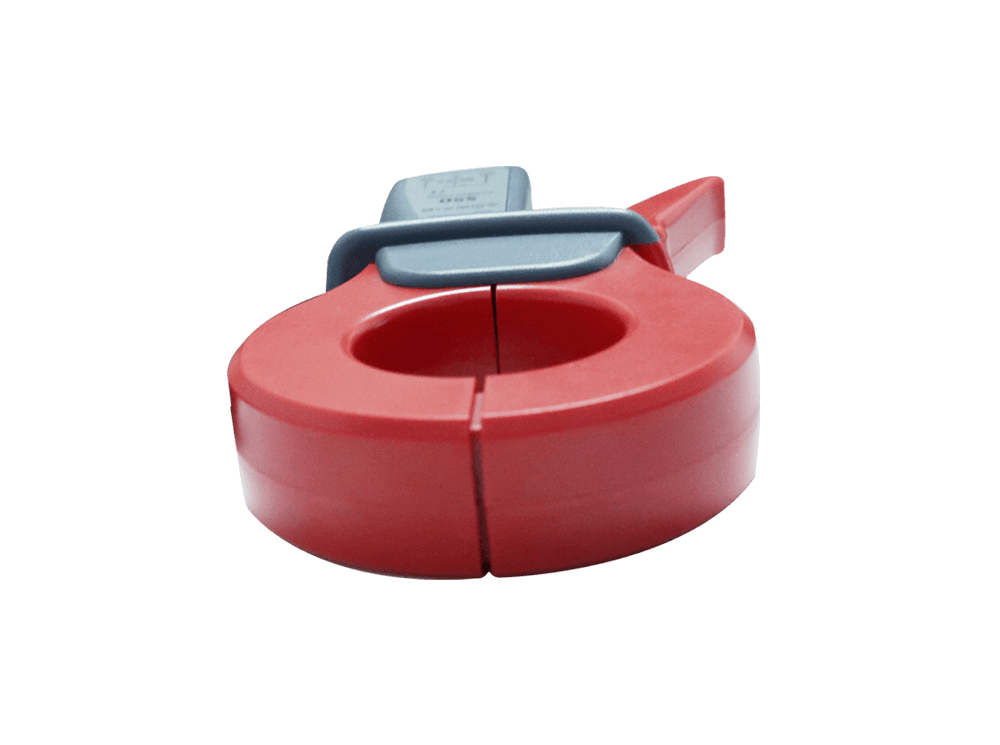

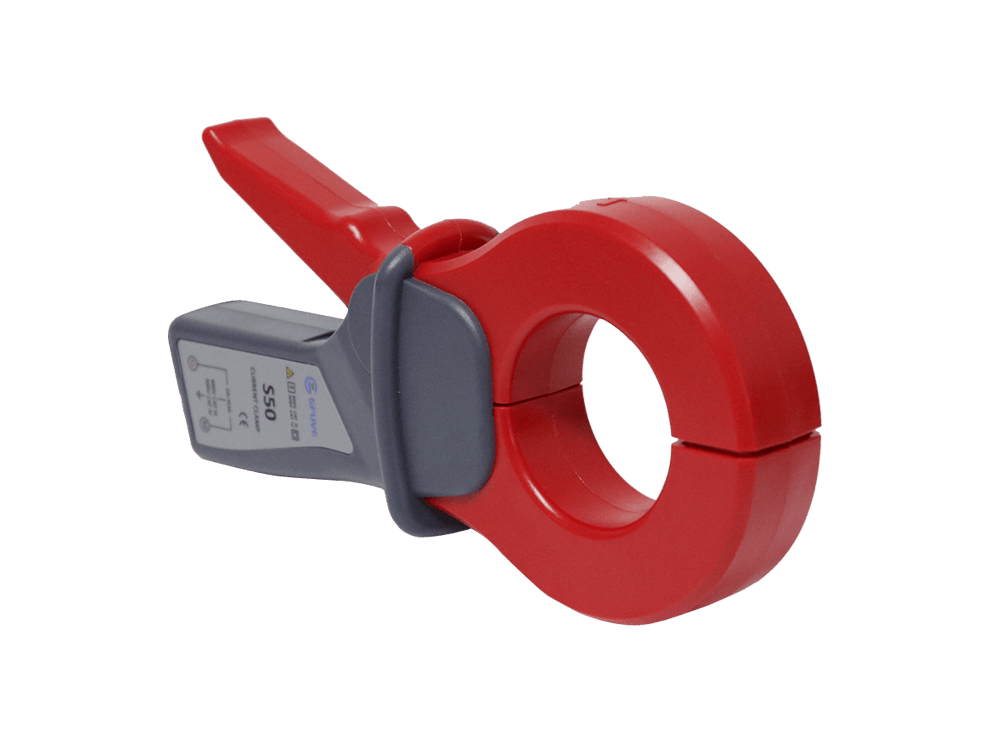

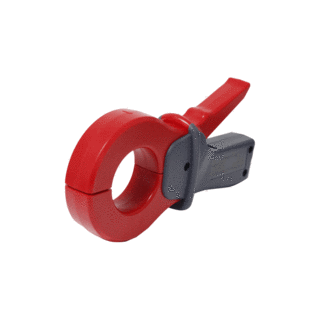

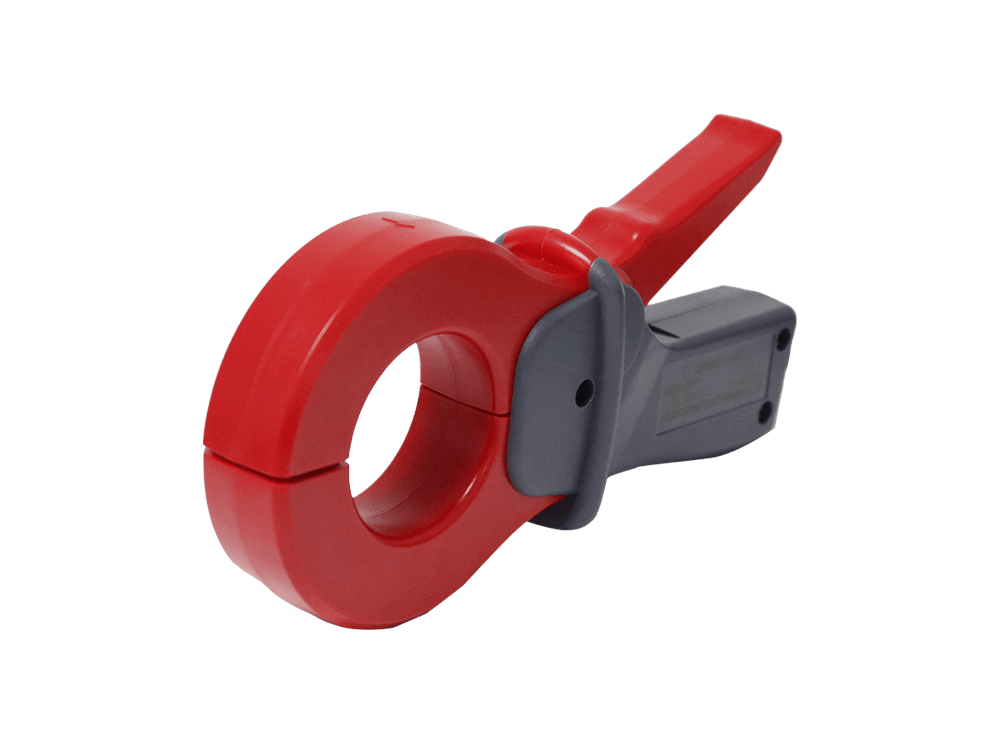

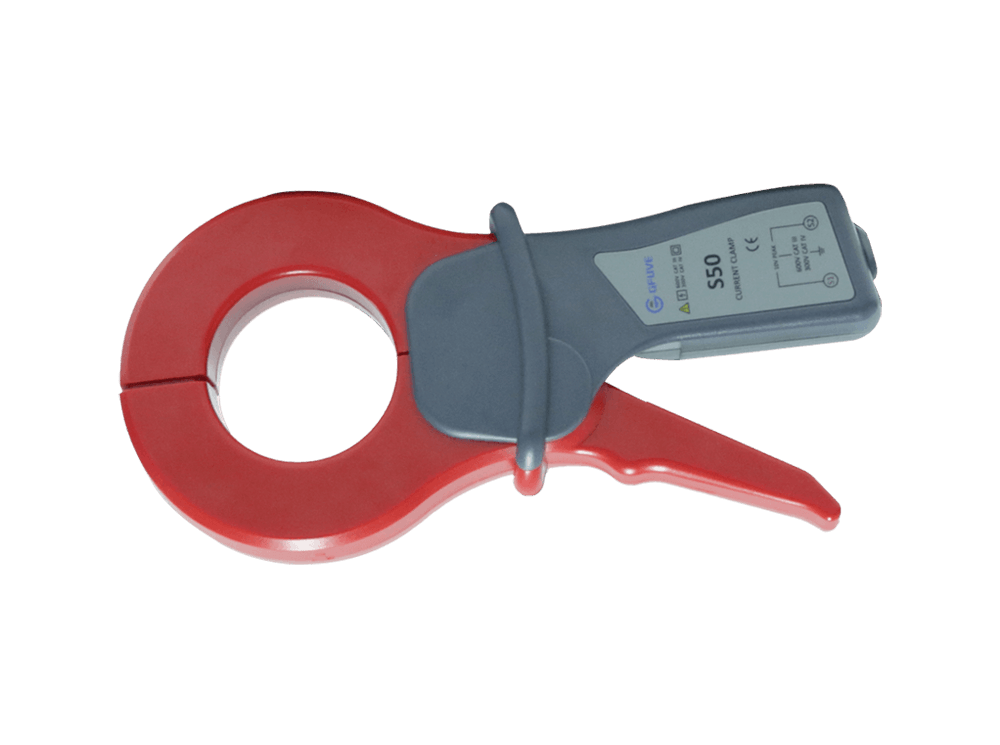

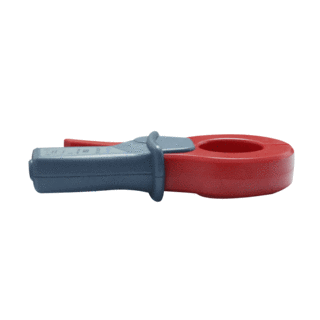

The round jaw design on the S50 Series AC current clamp on CT along with the high content permalloy core makes them well suited for power quality applications where high accuracy and low phase shift along with wide frequency are important from 10Hz to 10MHz. Measurement range is 1mA to 1200A. The S50 clamp on ct is a general purpose 1200A AC current clamp designed for use with DMMs & BNC, power loggers and energy meter calibration instruments that have a current input. It has a 1000:1 ratio and output of 1mA per amp or 1mV per amp measured in the jaw. The S50 clamp on CT has an integral 2.5m lead terminated. The rounded jaw design on this current clamp makes it well-suited for power applications where high accuracy 0.1% and low phase shift and wide frequency response are important.

APPLICATION:
• Power meter;
• Phase angle meter;
• Energy sub-meters;
• Cable fault analysis;
• Power load monitoring;
• Large industrial loads;
• Data logging/recording;
• Energy meter calibrator;
• Earth resistance meter;
• Power quality monitoring;
• power and harmonic meters;
• Power quality analyzer(PQA);
• CT secondary current detection;
• Measuring around cable bundles;
• Waveform analysis(oscilloscopes meter);

FEATURES:
• UL, CE CNAS mark;
• High content permalloy core;
• Holding wire diameter: φ52mm;
• Frequency 10Hz-10MHz Bandwidth;
• Conforms to EN 61010, 600V CAT III;
• Measurement range of 1mA to 1200A AC;
• Low phase shift for power measurement;
• Industrial design & beautiful appearance;
• Improved ergonomic design & easy operation;
• High precision 0.1% for current measurement;
• Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters;

PARAMETERS:
Electrical parameters:

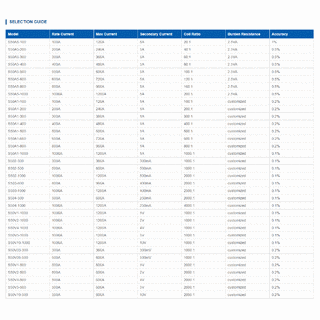

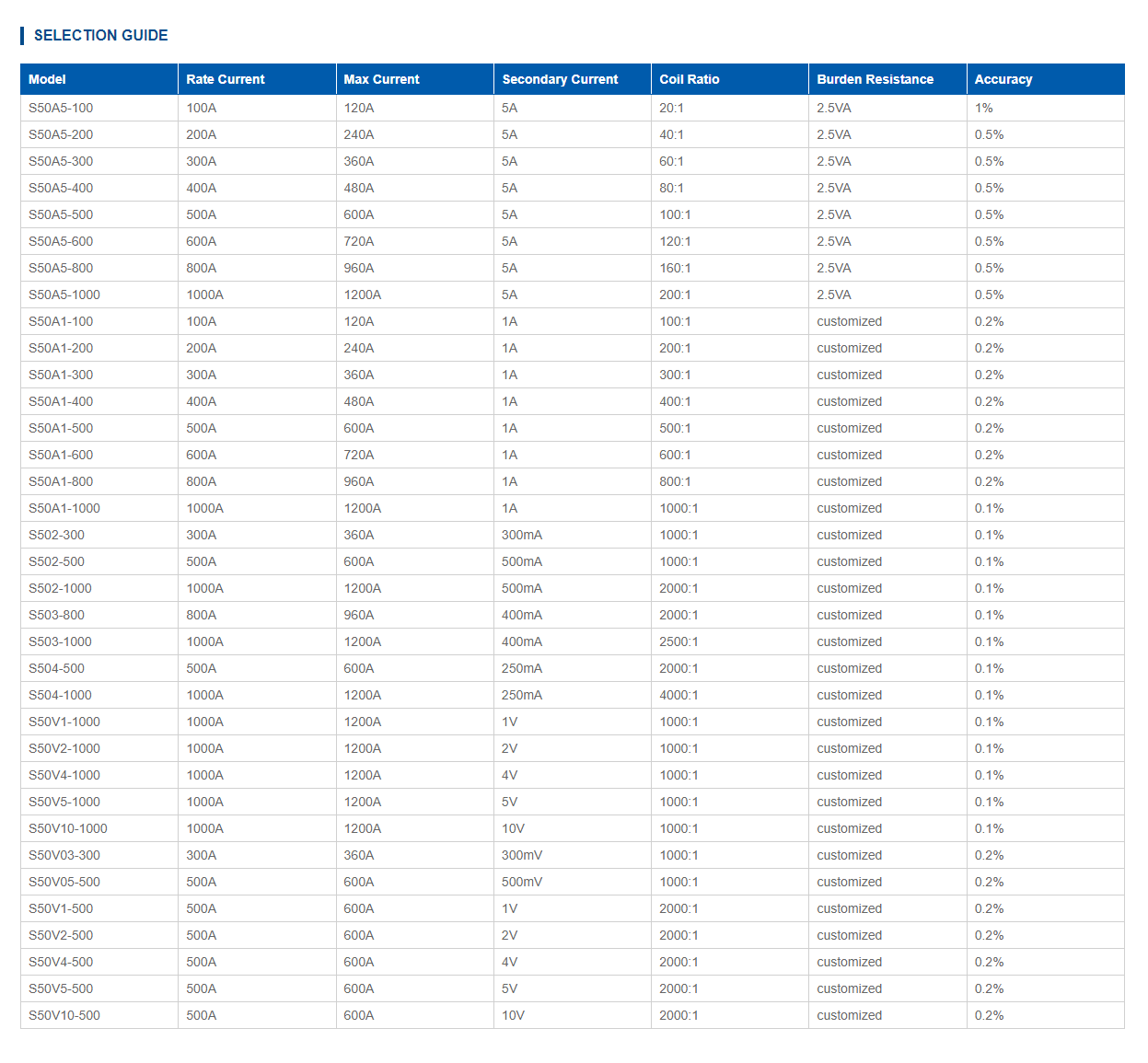

Ratio: 1000: 1 , 2000:1, 1000:5 (customized)
Accuracy class: 0.1%, 0.2%, 0.5%
Primary current: 0 - 500A AC and 0-1000A AC
Signal output: 1mV/A, 1mA/A
Secondary voltage: 0 - 0.5V AC and 0 - 1V AC;
Secondary current: 0-1A or 0-5A AC
Max. Cont. Input current: 1200A
Load capacity: ≤20Ω, standard 4Ω
Over voltage category: CAT III 600V
Frequency range: 10Hz-10MHz
Dielectric strength: 3KV 50Hz/60Hz at 1minute
Temperature range: -40°C to +55°C

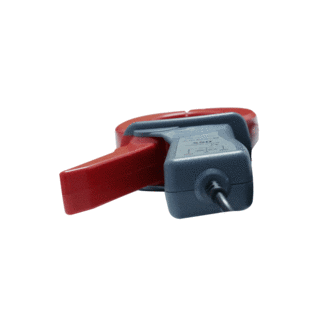

Output: 2.5 meter cable with D01 or BNC connector
Max. voltage not insulated conductors: 600 V
Standard: EN 61010-1, EN 61010-2-032, EN 61010-2-031
IEC60044-1, & IEC61869-2, 600V CAT III
Installation: clamp type
Range: 10A, 100A, 1000A optional
Output mode: lead output(2.5m)
Connector: BNC, 4mm banana, signal cable(2 cores),customized

Accuracy (1000A Range):
0-10A: ≤0.5%
10-100: ≤0.2%
10-1200A: ≤0.1%

Phase Shift(1000A Range):
0-10A: ≤0.5°
10-100: ≤0.2°
10-1200A: ≤0.1°

Mechanical parameters:
Dimensions (L x W x H) (mm): 105 x 218 x 30
Weight (g): 650
Holding wire diameter (mm): φ52
Max. jaw opening (mm): 52
Jaw color: Red & Grey
Material: PC+ABS, UL94 V0
