THY Hydraulic Slurry Pumps

Category
Hydraulic Slurry Pumps
Brand
Hydroman
Model
THY
Country of origin
China

Supplier info

Supplier details
Manufacturer
China

Product details

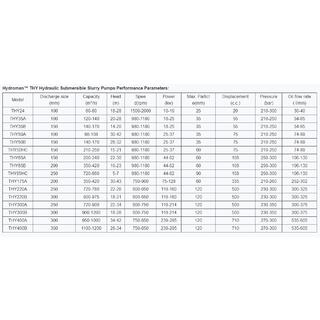

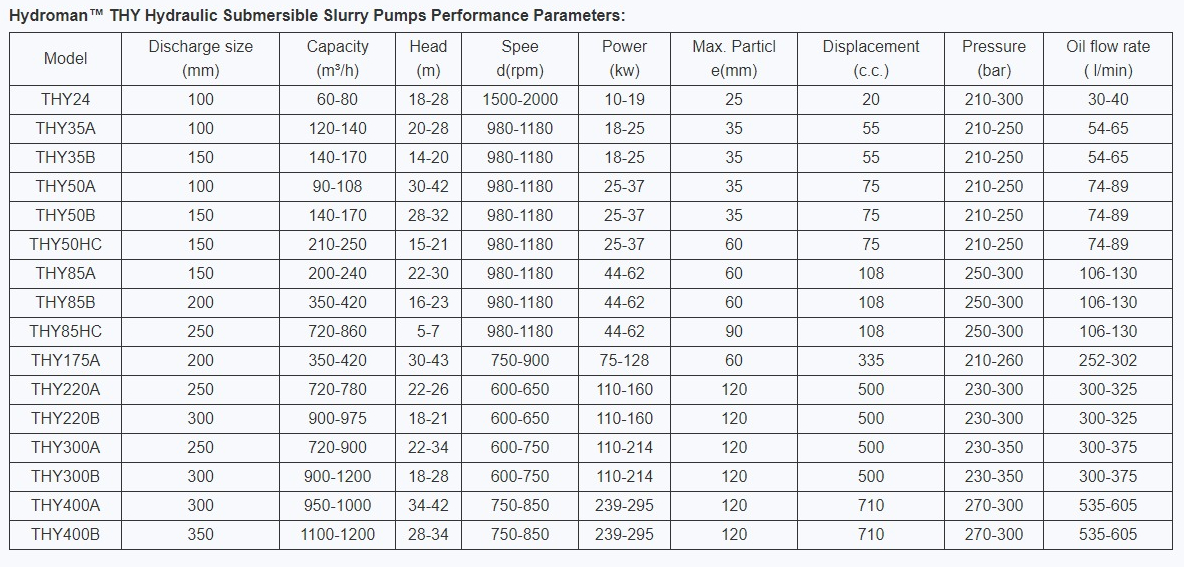

Specifications:

Size: 100-350mm
Capacity: 60-1200m3/h
Head: 5-43m
Max. particles: 120mm
Max. concentration: 70%
Temperature Range: ≤80°C
Agitator or Cutterheads: Available
Sealing arrangement: Double mechanical seal
Materials: High chrome, Hyperchrome, SS304, SS316L, CD4MCu, 2205 etc

Product Details:

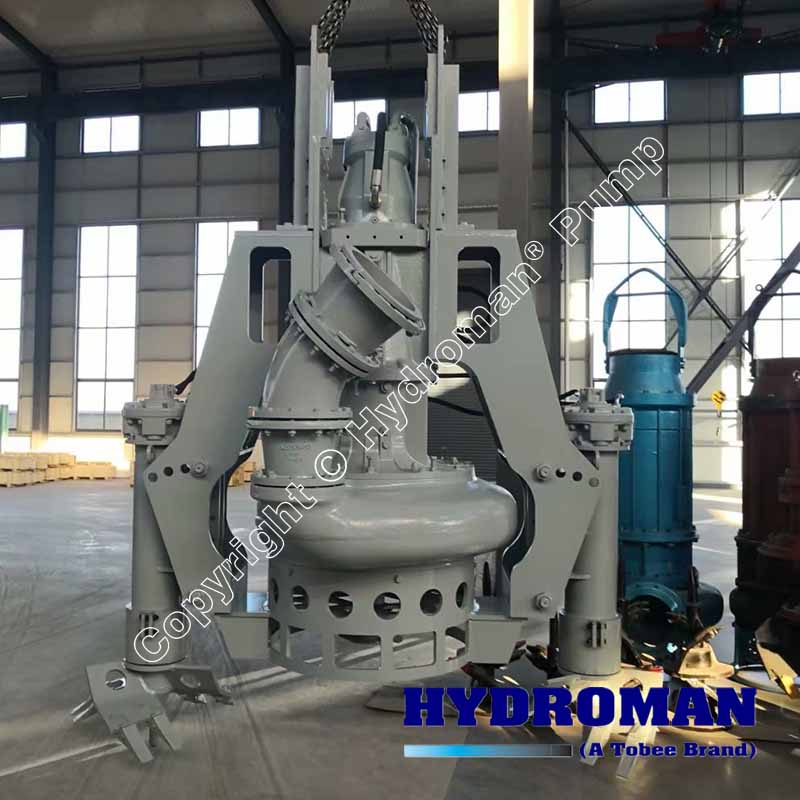

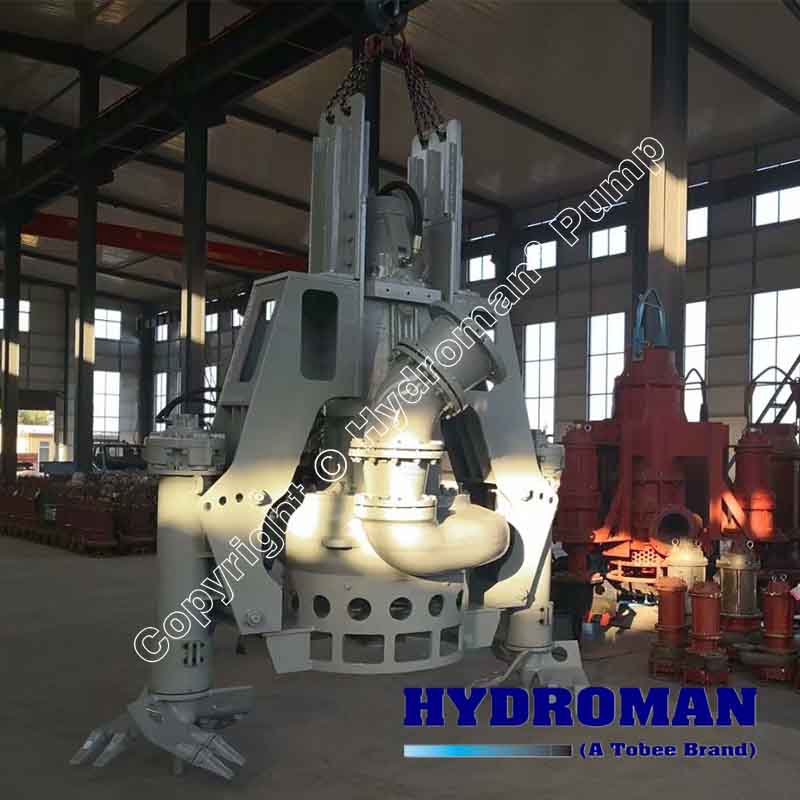

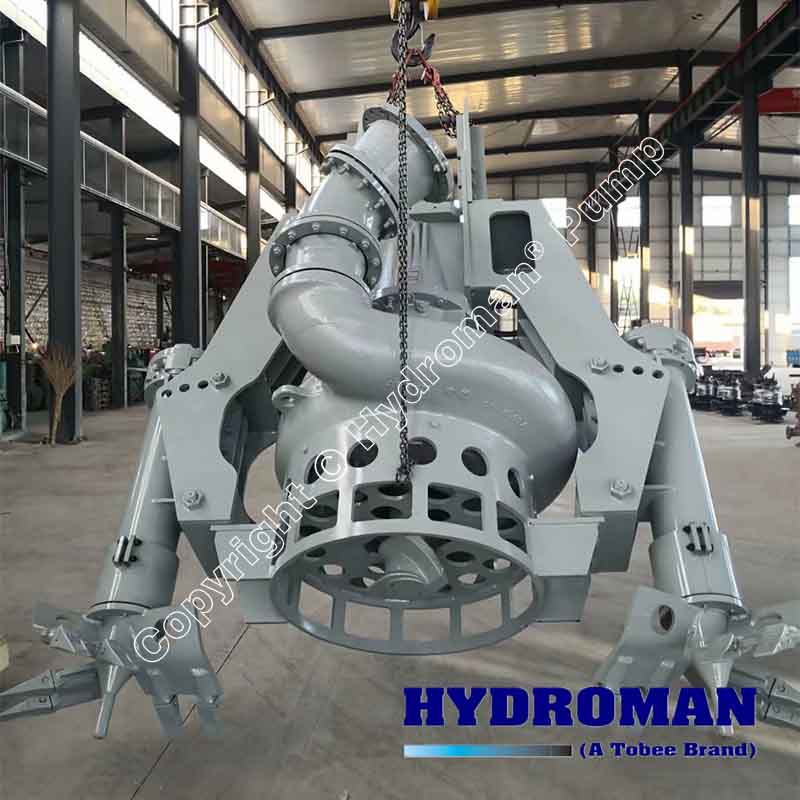

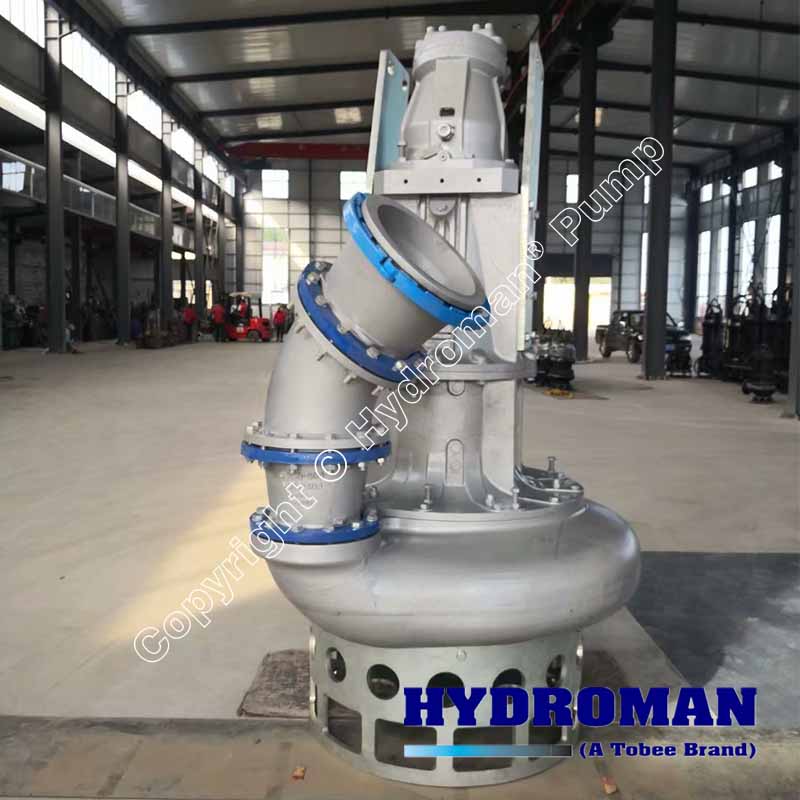

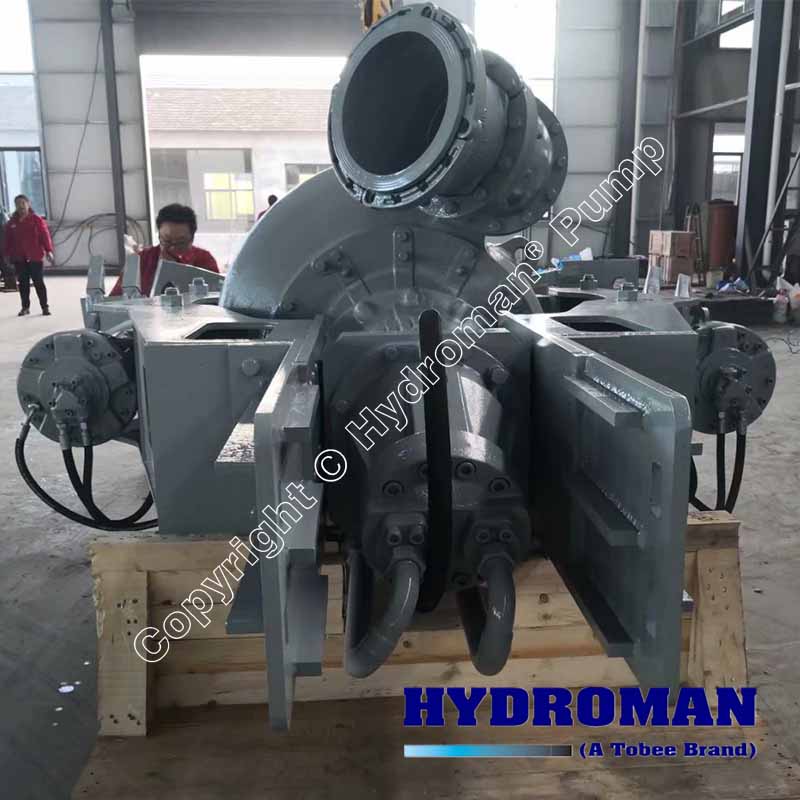

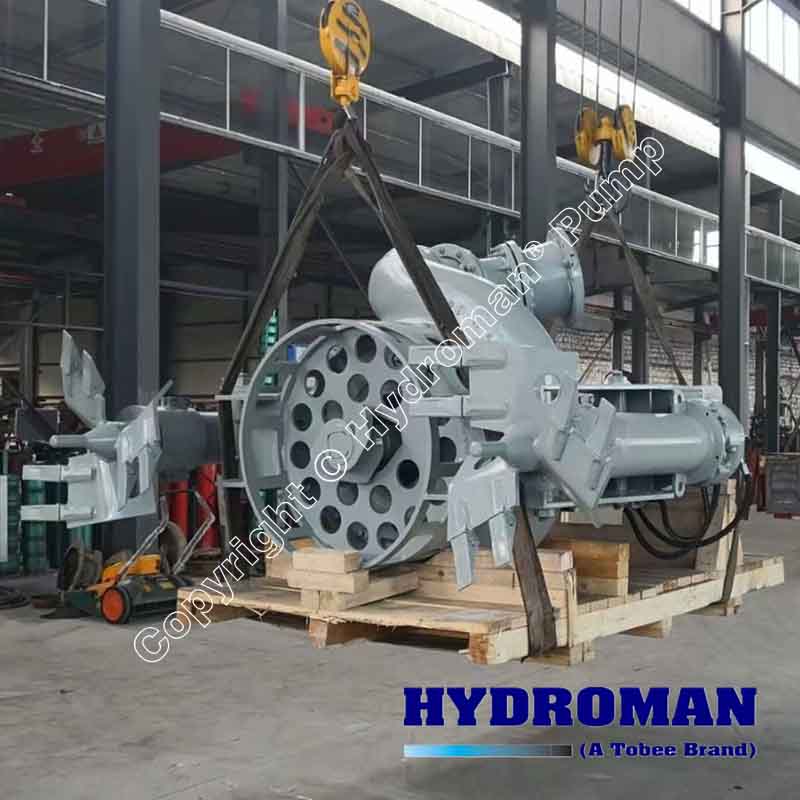

Hydroman™ THY Hydraulic Submersible Slurry Pump is designed for handling rocks, slurry, gravel, sand, stone, minerals, bentonite and others, with the shortest delivery times. Hydroman pumps deliver massive solids production at very low operational costs. The THY hydraulic slurry pump can install cutters or agitators on various excavators to work like submersible dredging pumps, It can be also used in various hydraulic stations.

Design Features:

▪ Submersible heavy duty agitator pump, hydraulic driven with variable RPM
▪ All Pumps have standard high efficiency agitator to lift settled solids.
▪ High abrasion resistance with high chrome wear parts.
▪ Low rotation speed to reduce wear effect.
▪ Agitators, Cutters, Excavators are available for options
▪ Able to handle up to 70% solids by weight.

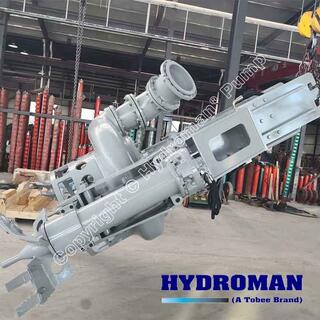

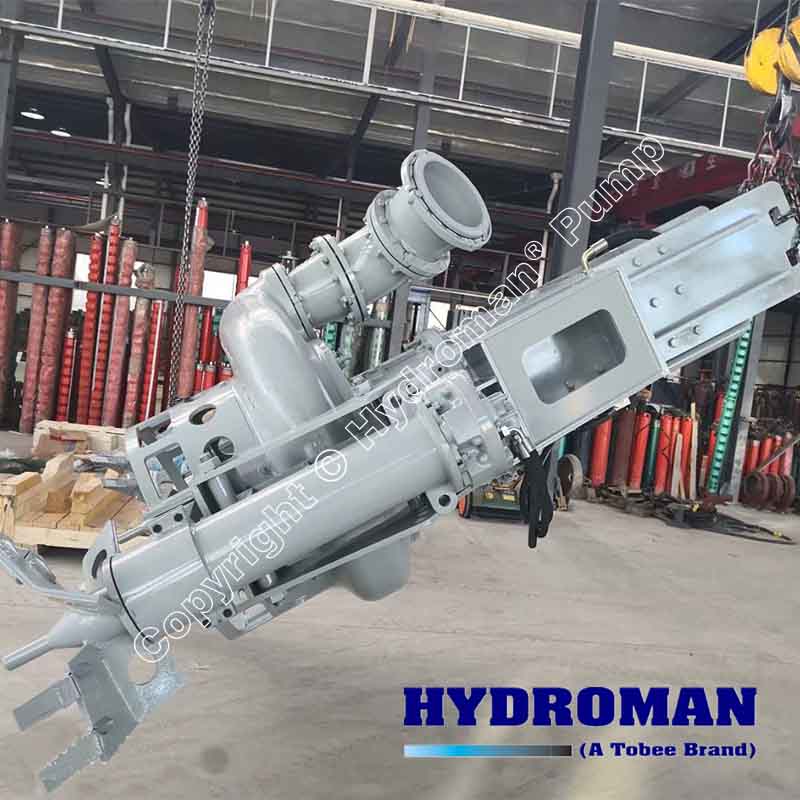

▪ Easy installation on the boom of hydraulic excavators.

Hydroman™ THY Hydraulic Submersible Slurry Pumps Applications:

Industry: Pumping industrial waste, extraction of slag, forge scale, cal-cines, sludge, setting sludge, petroleum and tar residues, Thermal Power plants – Ash pits, Construction and public works, Inert wash sludge, Marble dust, All types of effluent with solids in suspension, Sewage, De-watering etc
Dredging, Sand & Gravel: Sand extraction and transport, Sand and gravel mining, Dredging harbors and marinas, Port maintenance, Dredging of canals and harbors, Clean-up of rivers, lakes and lagoons, Dam dredging, Beach reclamation, Heavy soils etc
Mining: Mining and tailings reclamation, Clean-up of setting tanks, Extraction of coal, minerals and sand etc.
Offshore: Underwater work, Ecological recovery, Clean-up of locks, Emptying of caissons and bulkheads, Barge transfer etc
