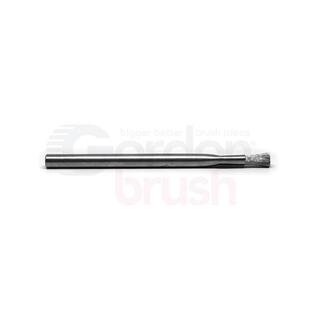

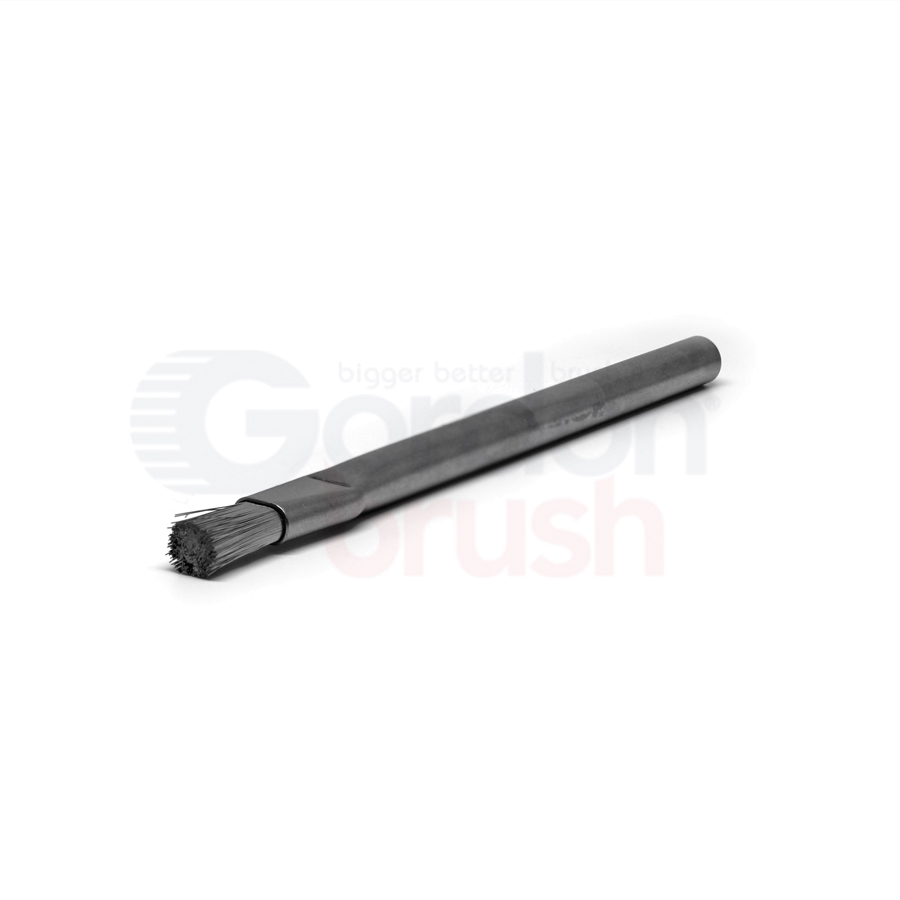

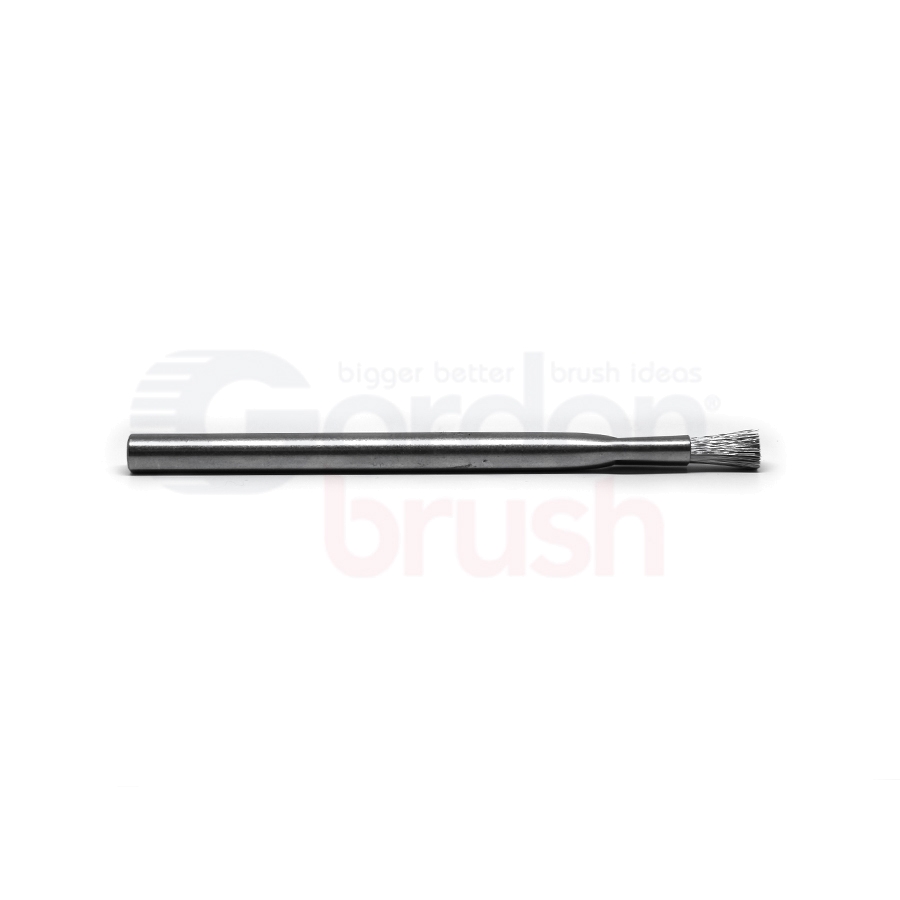

Conductive Applicator Brush — 0.006" Stainless Steel Wire / 3/8" Diameter Stainless Steel Tube Handle

Category Single-Ended Applicator Brushes
Brand Gordon Brush
Model 146644
Country of origin United States

Seller information

Visit store
Gordon Brush Mfg Co Inc
3737 Capitol Avenue, City of Industry, California 90601, United States
323-724-7777
Manufacturer
Established 1951

Description

This conductive applicator brush has 0.006" stainless steel wire and a lightweight, chemical resistant, non-magnetic, stainless steel handle. All components of this brush are FDA and RoHS compliant. Manufactured using strong mechanical clamping for maximum wire retention, and is adhesive-free to prevent contamination on surface areas that could be caused by leaching. This high quality brush has a trim of 5/8", handle dimensions of 5-3/8" length x 3/8" diameter, and a brush face width of 3/8". This brush has a maximum use temperature of 900°F.

Conductive brushes have a surface resistivity range of 10²Ω/cm – 10⁴Ω/cm and are used to remove static buildup from the work surface. Conductive brushes will act as a conduit between the charged surface and the path to ground. Made with fully conductive materials that are active static eliminators. Use conductive brushes with a wrist strap or other mechanism to provide a path to ground.

Specifications:

ESD Category: Conductive
Fill Material: Stainless Steel
Handle Material: Stainless Steel
Handle Length: 5-3/8"
Handle Diameter: 3/8"
Bristle Diameter: 0.006"
Trim: 5/8"
Max Temperature: 900 F
Brush Face Diameter: 3/8"
Brush Face Width: 3/8"
Additional Part #s: 146644G-12
