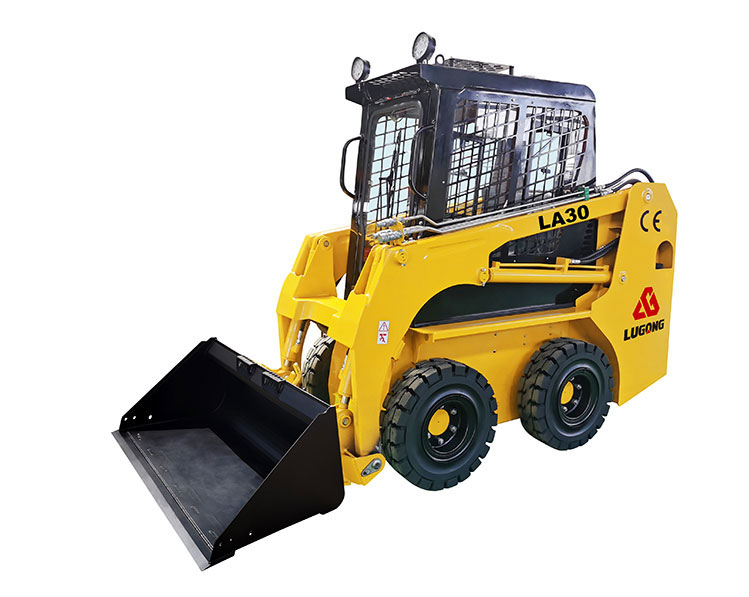

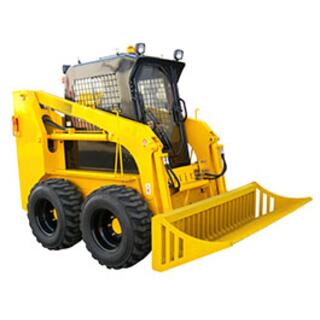

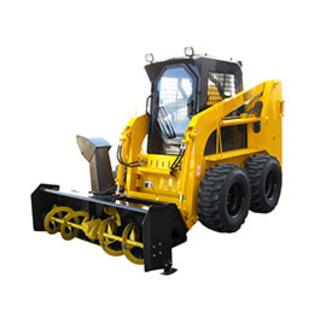

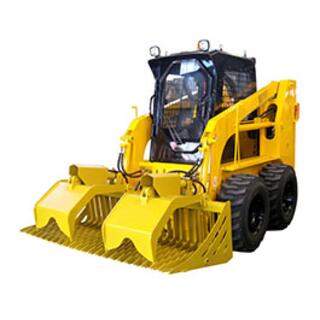

LA30 Skid Steer Loader

Category
Skid Steer Loader
Brand
Lugong
Model
LA30
Country of origin
China

Supplier information

Supplier details
Manufacturer
China

Product description

Main Technical Parameters:

Operating load (kg): 300
Max Speed (km/h): 9
Rated flux (L/min): 50
Tire (track) model: 23×8.5-15
Rated power (Kw): 18.4
Fuel tank capacity (L): 25
Self weight bucket (kg): 1500
Bucket capacity (m³): 0.2
Overall operating height (mm): 3590
Height to bucket hinge pin (mm): 2650
height to top of cab (mm): 2050
Height to bottom of level bucket (mm): 2470
Overall length without bucket (mm): 2430
Overall length with bucket (mm): 3170
Dumping angle at maximum height (°): 40
Dumping height (mm): 1920
Dumping reach (mm): 720
Rollback o bucket on ground (°): 30
Rollback of bucket at full height (°): 104
Wheelbase (mm): 801
Ground clearance (mm): 180
Angleof departure (°): 20
Front turning radins without bucket (mm): 971
Front tuning radius (mm): 1681
Rear tuning radius (mm): 1371
Rear axle to bumper (mm): 940
Tread width, enterline to centerline (mm): 882
Width (mm): 1110
Bucket width (mm): 1150
