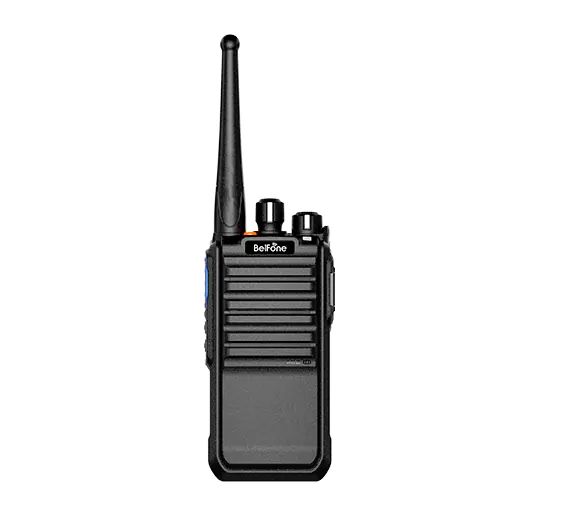

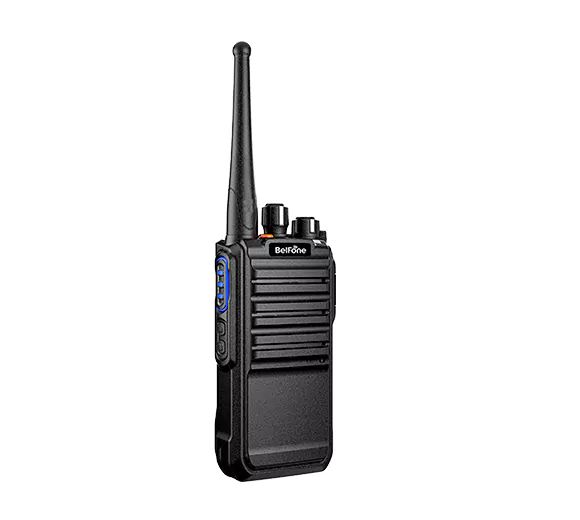

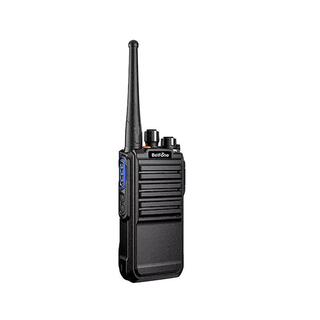

BF-TD516LF License Free Portable Radio

Category
Portable Radios
Brand
BelFone
Model
BF-TD516LF
Country of origin
China

Product details

BF-TD516LF is an entry-level DMR portable radio designed for customers who want to enjoy radio communications without having to apply for frequency licenses. With loud and crystal-clear audio, a longer battery life, and of course a higher spectrum efficiency delivered by a 12.5KHz channel spacing, BF-TD516LF gives you a whole package of basic digital features and wonderful user experience.

Features & Benefits:

License Free to Save Cost: Utilizing unlicensed spectrum is a great benefit for users to save cost of frequency and to enjoy digital communication efficiency at same time.

Migrate from Analog to Digital Effortlessly: It operates in both digital and analog modes so that the existing analog system keeps running while being ready for migration to digital.

Slim, Discreet and Ergonomic: Small-size and light-weight, it fits easily in your hands. You can move freely and comfortably without feeling a burden. Sleek and compact, it blends well with the business attire.

Specification:

General:
Frequency Range: UHF: 446.0-446.2MHz
Channels: 64
Zones: 4
Channel Spacing: 12.5KHz
Working Voltage: DC7.4V (±20%)
Frequency Stability: ±1.5ppm
Antenna Impedance: 50Ω
Battery Capacity: Real 1800mAh
Battery Average Working Time(5/5/90): Digital 18 hours; Analog 14 hours
Dimension: 35(L)* 59.7(W)* 114(H) mm
Weight: 259g (including battery pack)
Transmitter:
Power Output: High power: 5W; Low power: 1W
4FSK Modulation: 12.5KHz data only: 7K60FXD; 12.5KHz data and voice: 7K60FXE
FM Modulation: 12.5KHz: 8K50F3E/ 25KHz: 16KφF3E
Modulation Limitation: +/- 2.5KHz @ 12.5KHz; +/- 5KHz @ 25KHz
FM Noise: -40dB
Spurious Emission: -36 dBm≤1GHz; -30 dBm≥1GHz
Adjacent Channel Power: ≤-60dB
Frequency Response: +1/-3dB
Vocoder: AMBE+2™
Audio Distortion: ≤3%
Receiver:
Digital Sensitivity: 5% BER: 0.25 uV
Analog Sensitivity: 0.25 uV (12 dB SINAD)
Intermodulation: 60dB
Adjacent Channel Selectivity: 60dB
Spurious Suppression: 60dB
FM Noise: -40dB
Frequency Response: +1/-3 dB
Audio Power: 1.5W
Audio Distortion: 3% (typical)
Conduction Radiation: -57dBm
Environmental Specifications:
Operating Temperature: -20℃~+60℃
Storage Temperature: -30℃~+85℃
Water Proof: IP54
Shock & Vibration: MIL-STD-810C/D/E/F

Accessories:

Standard Accessories:

• BF-A51- 2000mAh Battery
• BF-RA503L
• BF-BS806
