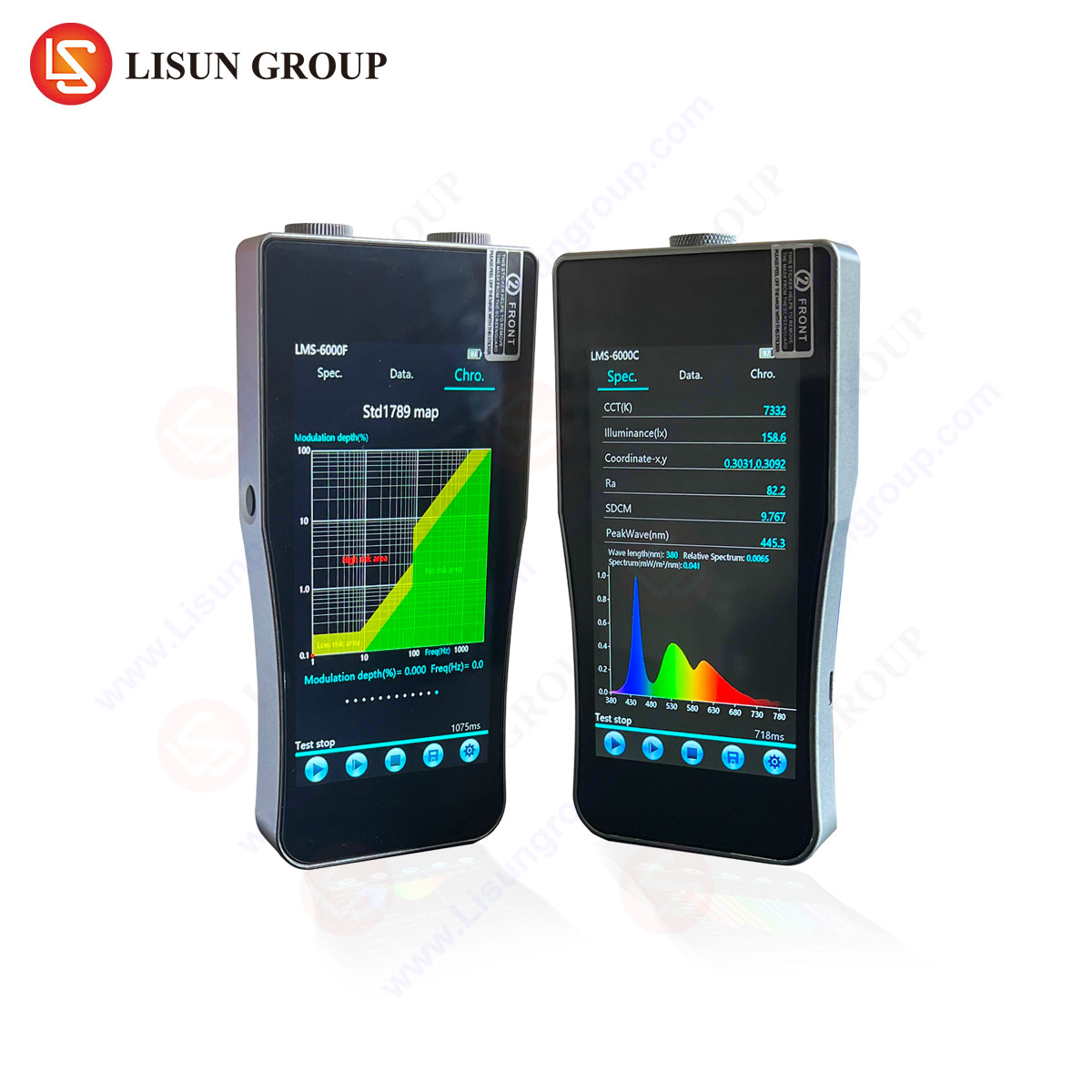

Portable CCD Spectroradiometer

Available from Lisun Instruments LimitedChina

Description

The Portable CCD LED Colorimeter Spectroradiometer has the following versions which can measure different parameters:
LISUN Model Function Wave Range
LMS-6000 illuminance, E(Fc), Ee(W/m2), Tc (K), Duv Correlated Color Temperature (CCT), Chromaticity Coordinates, CRI, TM-30 (Rf, Rg), Purity, Peak Wavelength, Dominant Wavelength, Half Bandwidth, Center Wavelength, Centroid Wavelength, Total Color Difference, Brightness Difference, Red-Green Degree, Yellow-Blue Degree, CCT Difference, SDCM Diagram, Spectrum Diagram 380-780nm
LMS-6000C LMS-6000 parameter without PC software and TM-30 (Rf, Rg) 380-780nm
LMS-6000UV UV-A, UV-B, UV-C and UV total Radiant Irradiance (0.1-500,000μW/cm² ±0.01μW/cm²), UV hazard irradiance, UV spectrum, Dominant Wavelength, Peak signal, Start wavelength, End wavelength. Please click here to see the LMS-6000UV Test Report. 200-400nm
LMS-6000F LMS-6000 Parameters+Flicker test 380-780nm
LMS-6000L Brightness (0.1-500,000cd/m²±0.1cd/m²), fL, Tc (K), Duv Correlated Color Temperature (CCT), Chromaticity Coordinates, CRI, TM-30 (Rf, Rg), Purity, Peak Wavelength, Dominant Wavelength, Half Bandwidth, Center Wavelength, Centroid Wavelength, Total Color Difference, Brightness Difference, Red-Green Degree, Yellow-Blue Degree, CCT Difference, SDCM Diagram, Spectrum Diagram 380-780nm
LMS-6000B LMS-6000 Parameters+Blue Light Hazard Weighted Irradiance according to GB/T20145, CIE S009/E:2002 350-800nm
LMS-6000BF LMS-6000B Parameters+Flicker test 350-800nm
LMS-6000P LMS-6000 Parameters+PAR, PPFD (0.1-500,000umol/m².s ±0.01umol/m².s) , YPFD, Blue-purple irradiance Eb, Yellow-green irradiance Ey, Red-orange irradiance Er, Ratio of red and blue radiation Erb_Ratio 380-800nm
LMS-6000S LMS-6000P Parameters+Blue Light Hazard Weighted Irradiance according to GB/T20145, CIE S009/E:2002 350-950nm
LMS-6000SF Full functions: LMS-6000S parameters+Flicker Test 350-950nm
LMS-6000I Input and Output Control via RS485 380-780nmStandards:
Fully meets CIE 177, CIE-13.3 , Optical-Engineering-49-3-033602, and IEEE.The Chroma Meter Specifications:
• Spectral resolution: ±0.2nm, Reproducibility: ±0.5nm
• Accuracy of chromaticity coordinate (Δx, Δy): ±0.005
• Correlated color temperature CCT: 1, 500K ~ 100, 000K (±0.6%)
• Illuminance range: 0.1~500,000lx (±0.1lx)
• LCD screen: 5inch high definition IPS capacitive touch screen and resolution is up to 480*854
• With 4000mAh rechargeable Li-ion battery which can continuously work for 20 hours
• Dimensions: 135mm*80mm*23mm
• Connect to PC via USB cable. English version software can run on Win7, Win8, Win10 and Win11

Specifications

Brand
LISUN
Model
LMS-6000
Country of origin
CHINA
