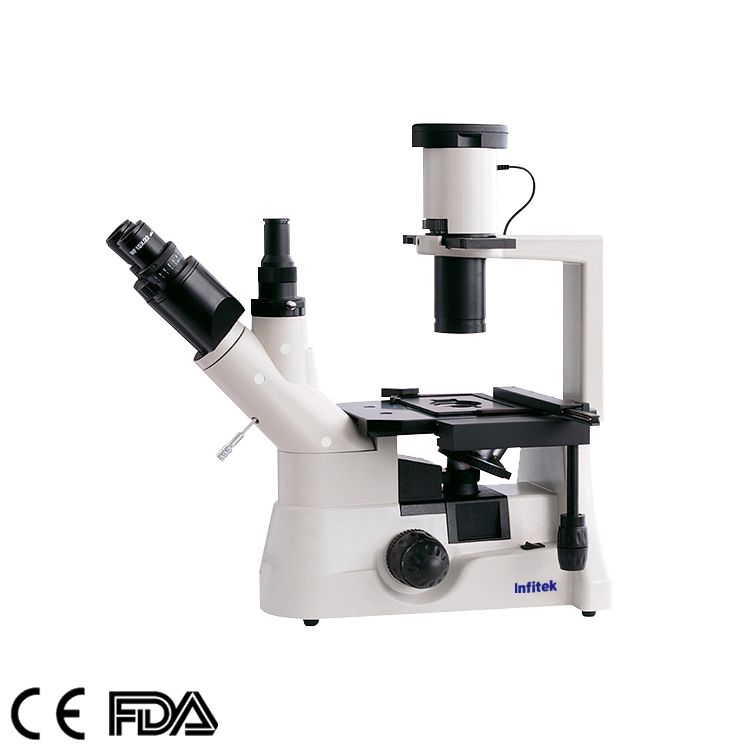

Inverted Microscope MSC-IV403

Available from Infitek Co., Ltd.China

Description

Specifications:

Model: MSC-IV403
Viewing head: Trinocular Head Inclined at 45°, Interpupillary Distance 50-75mm
Eyepiece: WF10X/ 20mm
Objective: LWD Plan ObjectiveLWDPL4X\10X\20X\40X
Stage: Double layers mechanical stage,Stage size: 242mmx 172mm, Central stage: Φ110mm, Moving range: 75mm × 50mm
Condenser: N.A.0.3Abbe condenser W.D .75mm
Focusing: Coaxial coarse&fine focusing adjustment with rack and pinion  mechanism Fine focusing scale Value 0.002mm
Phase contrast sliding plate: Center of phase contrast ring plate adjustable
Centering telescope: Centering telescope
Filter: Blue,green, yellow and froster glass
Light source: Halogen bulb12V/30W,Adjustable brightness
*Fluorescence attachment: B.GWave band, 220V(110V)/100W Mercury lamp
*Optional: Photograph connecting tube, adapter with MD or PK mount, 4X photograph eyepiece
Packaging Size(mm): 760*310*170
Net/ Gross Weight(kg): 12/ 13

Specifications

Brand
Infitek
Model
MSC-IV403
Country of origin
China
