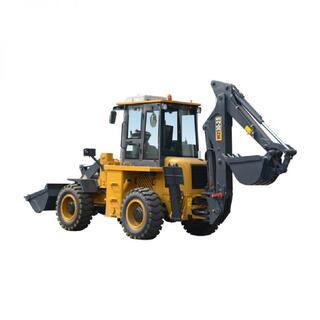

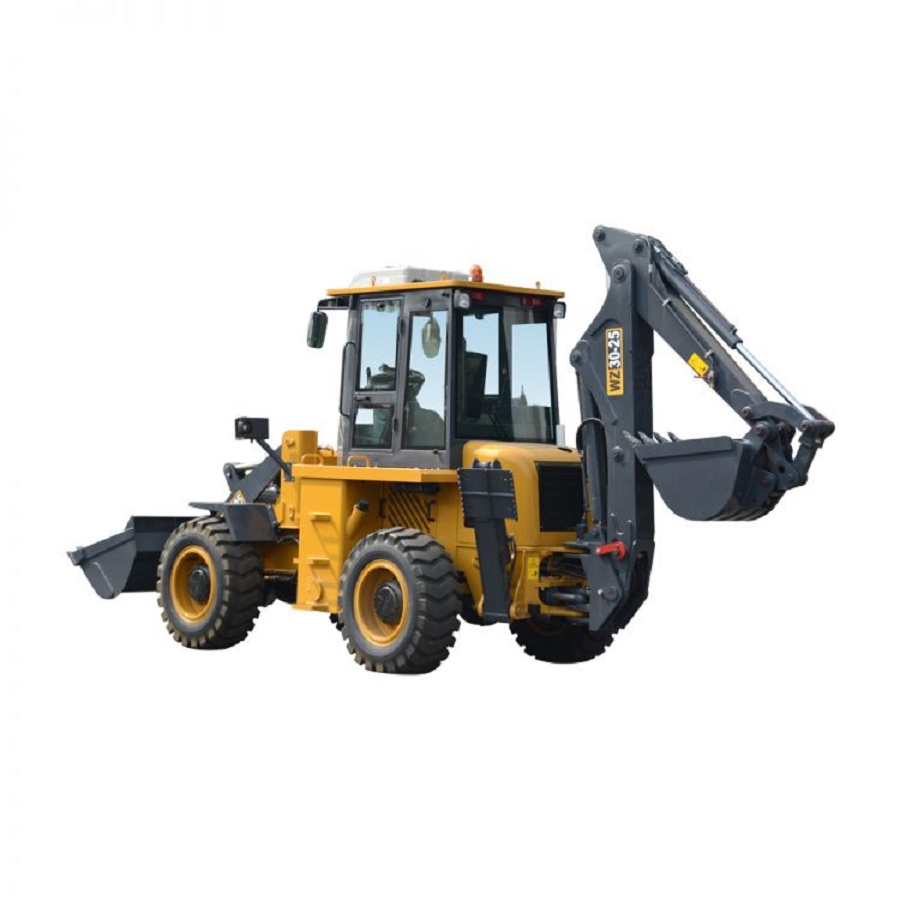

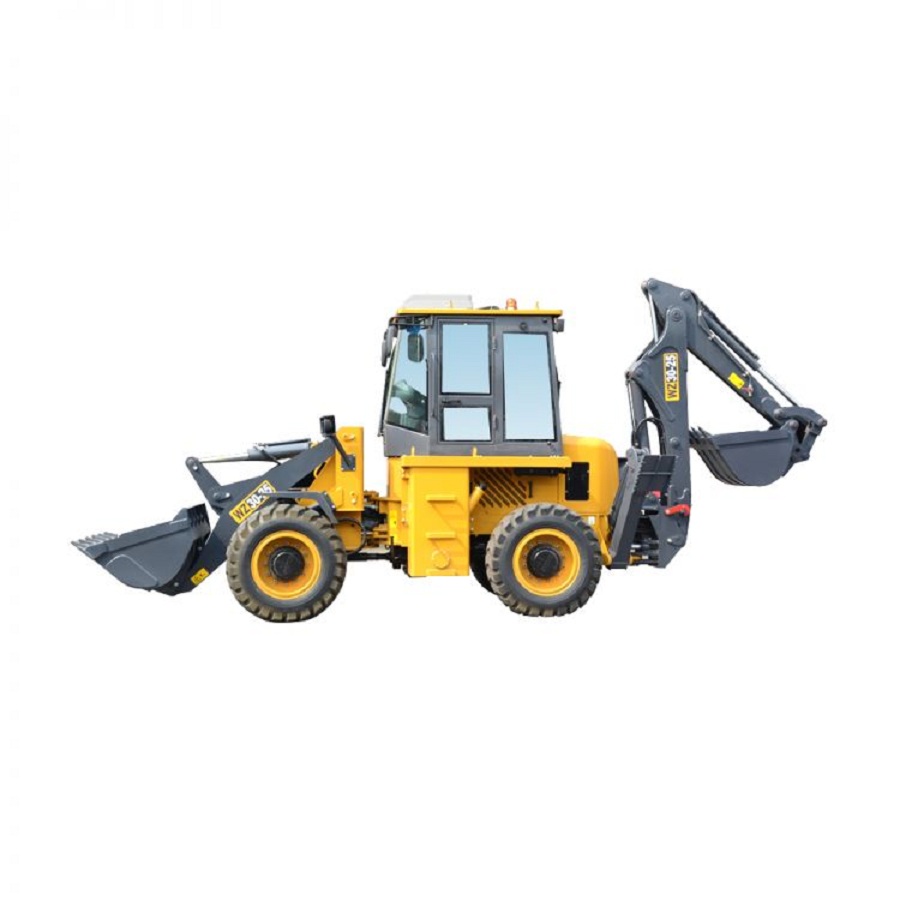

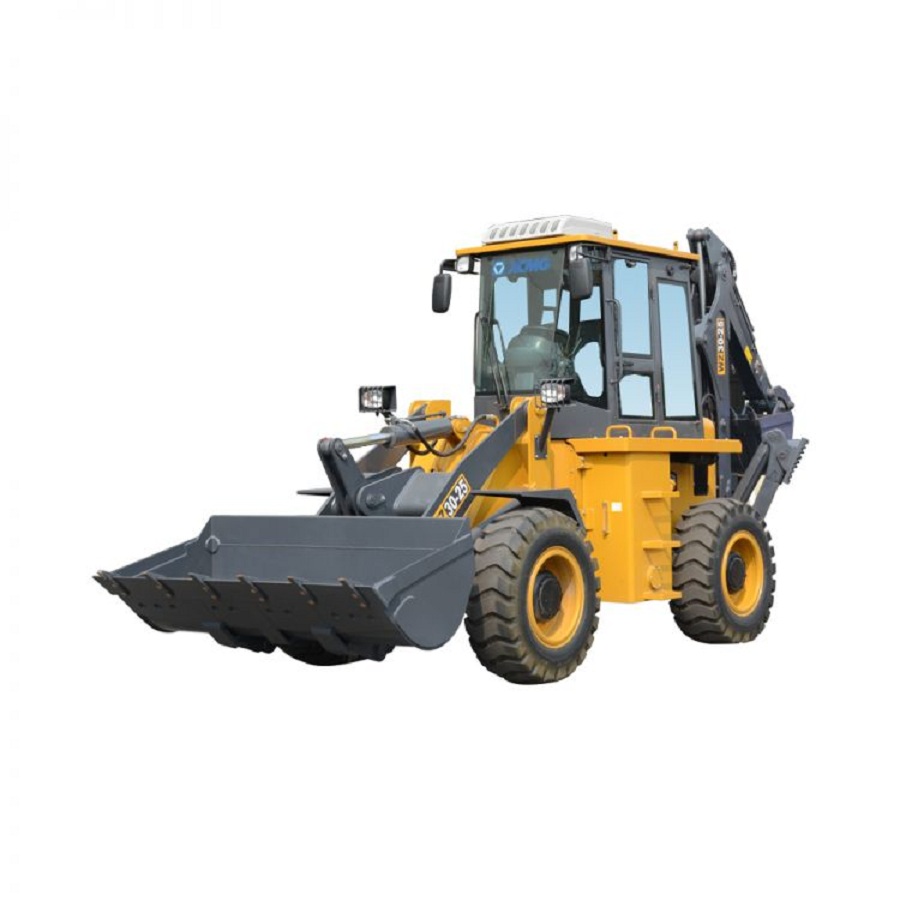

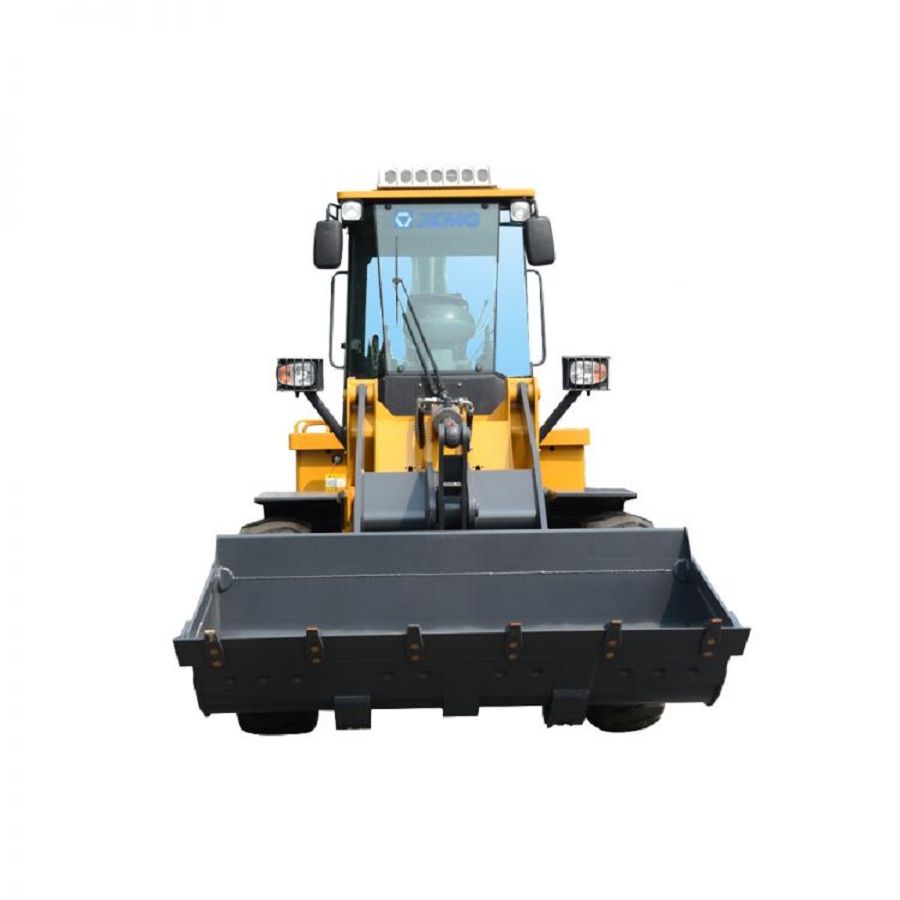

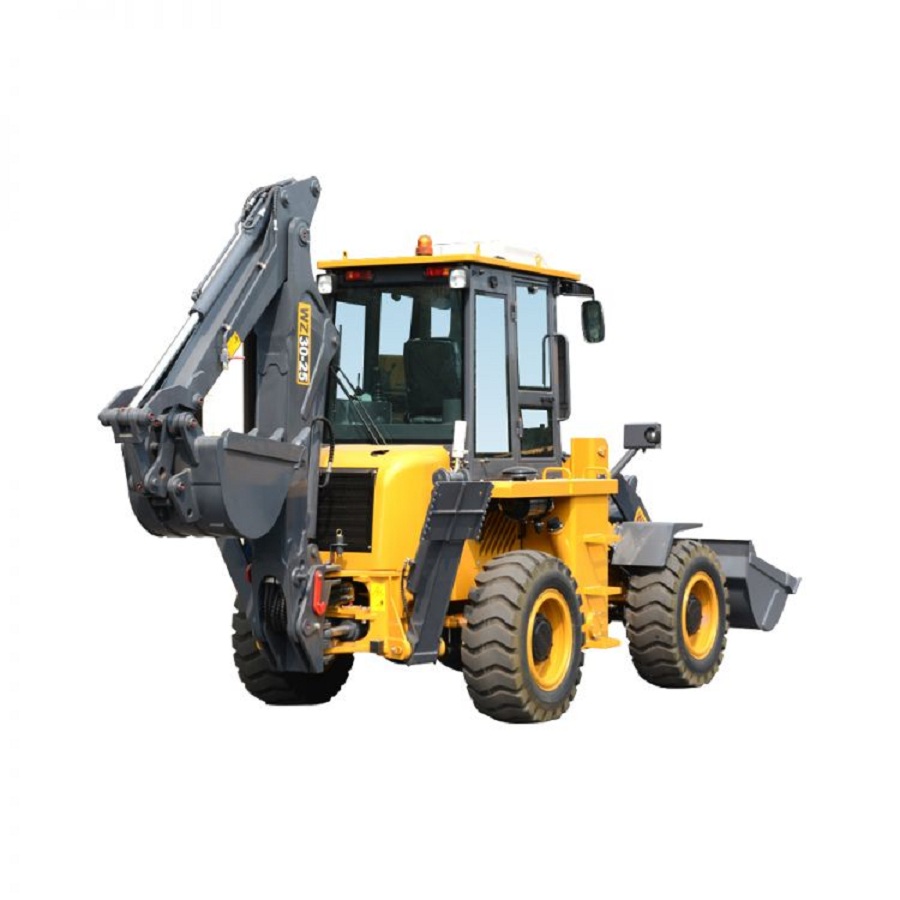

WZ30-25 Backhoe Loader with 1cbm Bucket

Category
Backhoe Loader Machine
Brand
XCMG
Model
WZ30-25
Country of origin
China

Product details

Price:

$21000-$40000 / EA

1 Unit / EA (Min. Order)

1. The WZ30-25 is a new multi-function engineering machine which gathering the loading and excavating in the integral whole machine.

2. It is the new generation model of the development based on the same kind product technique in domestic and international.

3. Having adopted four wheel drive, hydraulic torque converter, hydraulic steering system, hydraulic.

4. It is extensively used in the road maintenance, farms and developments, getting clay for making brick, piping builds, the cable builds, parking virescence and the excavating of the road opens to dig,breaking up.etc.

5. This machine has below characteristics: The Yuchai engine: low noise, low exhaust gas, low west, green environmental protection, driving motive, good reliability.

6. The spirit valve control take type brake system and parking brake system move two unite as one, when there is trouble in the gas brake system, it can make in time brake automatically, so it is more safety.

Specification:

Bucket capacity: 1.0 m³
Digging Capacity: 0.3 m3
Dumping Clearance: 2650 mm
Dumping Reach: 930 mm
Max. steering angle: ±35°
Max. steering angle of dig working device: ±85°
Tracing Speed I/II/III/IV: 0-6.2 / 0-12 / 0-20 / 0-30 Km/h
Back I/II: 0-8 / 0-28.5 Km/h
Diesel Engine Model: YC4A110-T310/YC41390-T20
Modality: 4-stroke water-cooled inline type/4-stroke water-cooled inline type
Rated Power: 73.5 (Turbocharged)/65 kW
Rated Speed: 2200 r/min
Wheel Base: 2600 mm
Tread: 1700 mm
Tyre size: 17.5-25-12PR 16/70-24
Max.digging depth: 4400 mm
Max.digging radium: 5471 mm
Operating Weight: 9500 kg
Overall Dimension: 8000×2310×3424 mm
