Green Press FX Servo

Available from Ermaksan MakineTurkey

Description

• 1.6 - 2- 2.6 - 3 m length options
• 40-…- 100 ton capacity options
• Standard 6 axes - Y1, Y2, X, R, Z1, Z2
• Body guard light curtain
• ER99, Delem 66T
• 98% energy saving in standby

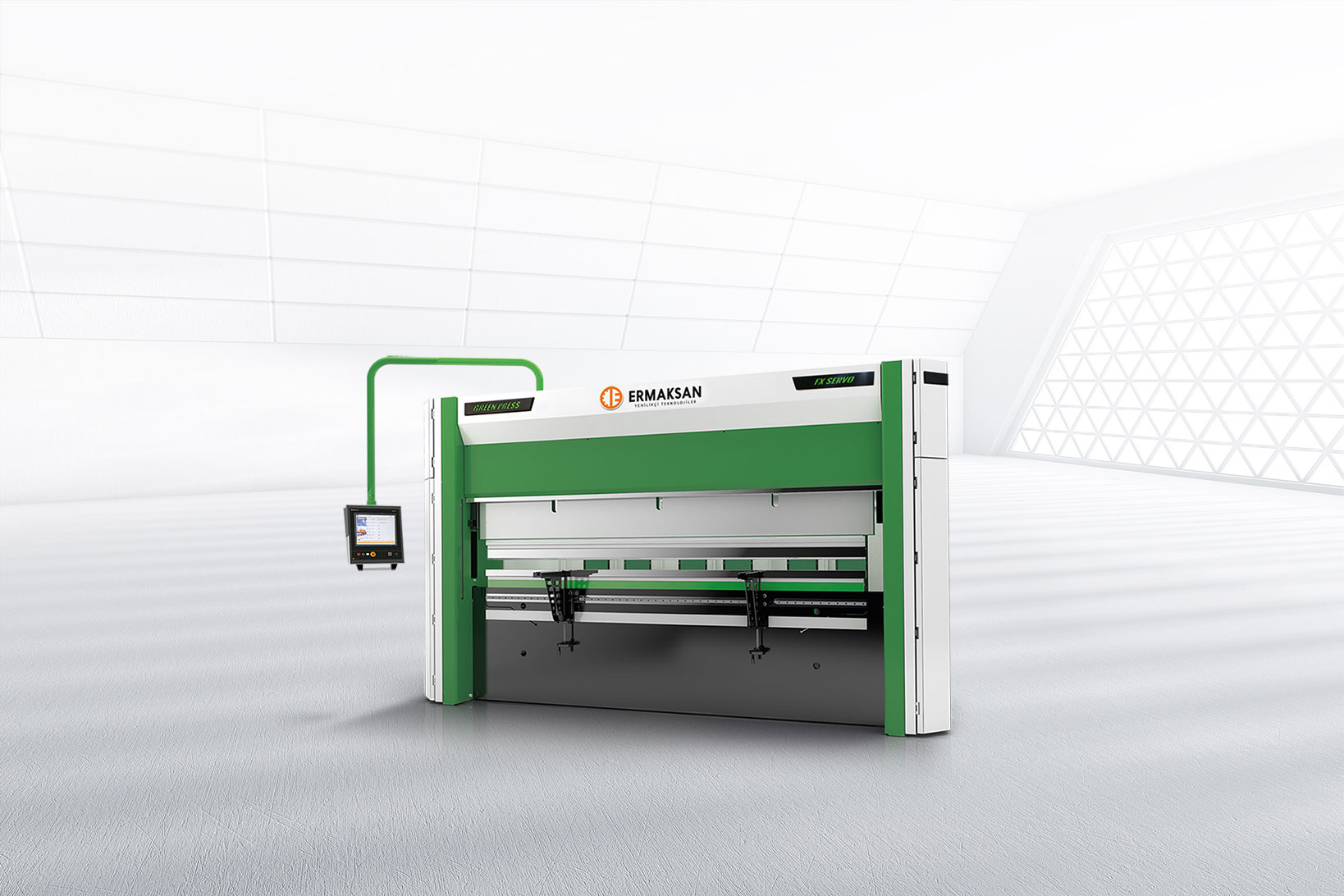

SERVO MOTOR ELECTRIC PRESS BRAKE

Environmentally Friendly Technology...

Green Press FX Servo press brake, one of our green press group machines with its quiet operation and low energy consumption features, consumes approximately 69% less energy than hydraulic press brakes.

The machine does not require hydraulic oil to operate. The maintenance cost is minimal since there are no hydraulic system components such as hydraulic filters and sealing elements. In addition, it does not cause the problem of contamination of the working environment due to oil leakage.

The sheet metal can be easily controlled from the front by the operator with the sensitive carriage and the sliding front support arms that can move left and right on the rail. Moreover, the lengths of the pieces can be measured thanks to the rulers mounted on the front support arms. The sheet metal can be fixed from the front with the help of the latch mounted inside the T channel.

QUIET OPERATION:
The beam’s downwards and return movements are ensured by means of springs. Thus, the machine works silently and does not create any noise pollution that may disturb the environment.

LOW MAINTENANCE COST:
Hydraulic system and cylinders are not used in the machine. Since it is a completely mechanical machine, you can use it with less maintenance cost.

ENVIRONMENTALLY FRIENDLY:
Since a servo motor with high energy efficiency is used in the machine, which does not require industrial oil, it is an environmentally friendly machine, standing out with its high power and low energy consumption.

UNLIMITED FULL LENGTH BENDING:
Contrary to the known press brake, this machine does not have a throat. Performs full-length bends between the feet. It has no restrictions according to the hydraulic press.

LOW ENERGY CONSUMPTION:
An energy efficient servo motor is used. Motors do not operate when the upper beam is not moving. It provides an energy saving of 69%.

RIGID CONSTRUCTION:
It has a strong body with dynamic and static rigidity processed with high precision.

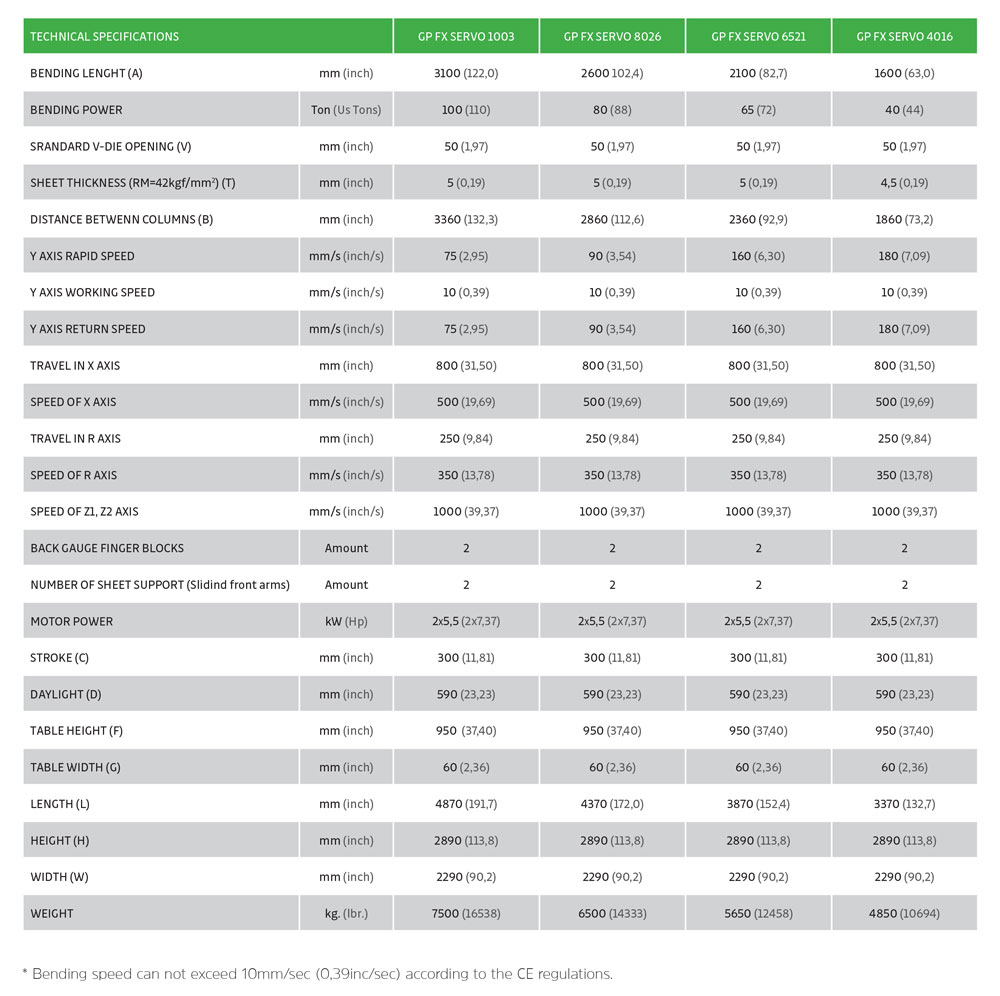

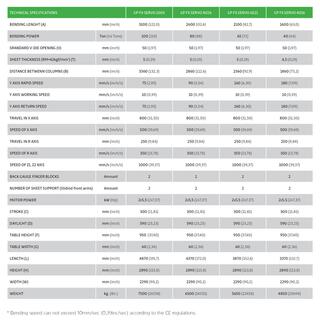

Specifications

Brand
Ermaksan
