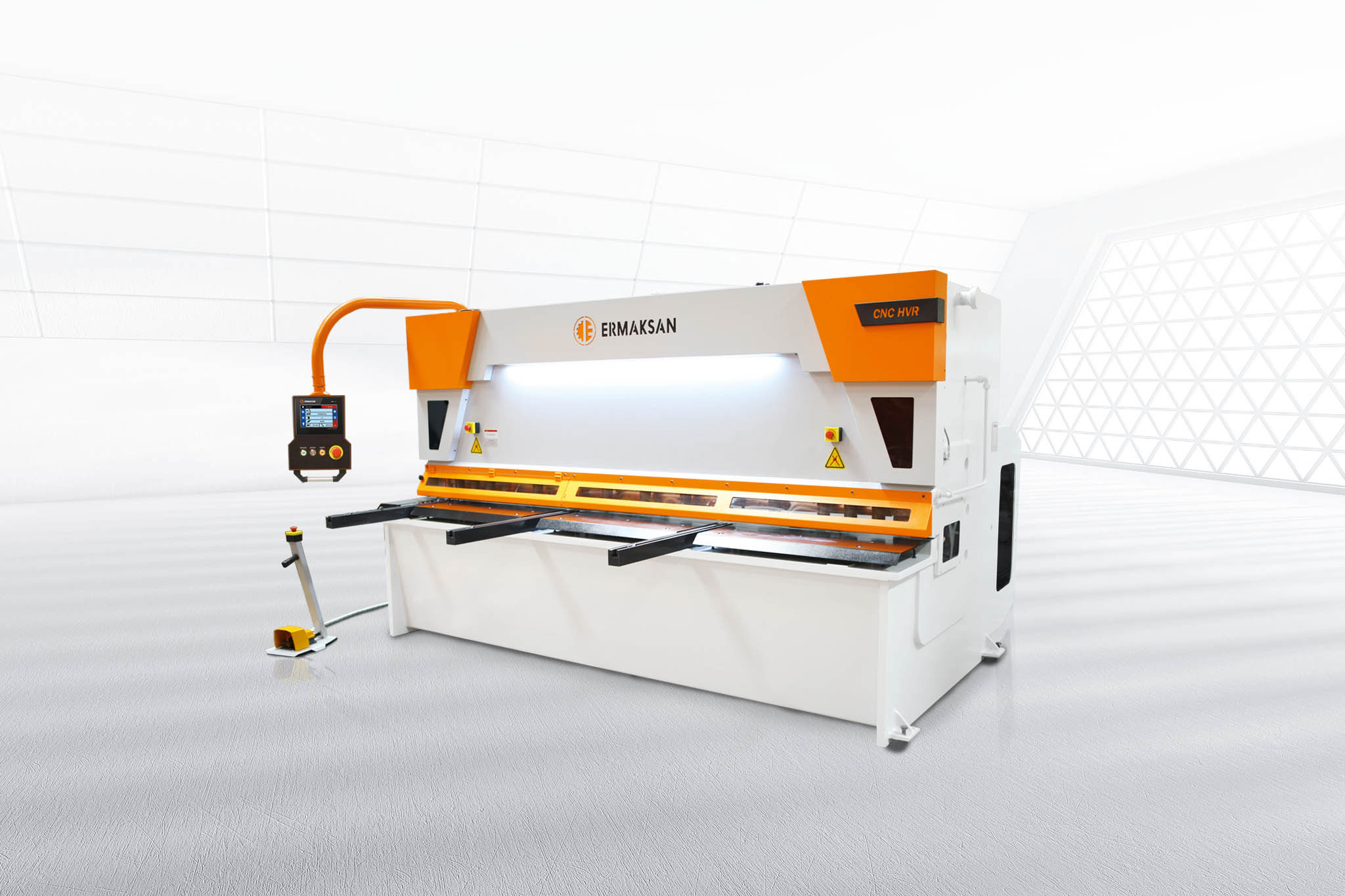

CNC HVR Shear

Category
Shear Cutting
Brand
Ermaksan
Manufacturer
Turkey

Product details

• 3 - 4 - 6 - 8 (opt.) m length options
• 6 - ... - 40 mm capacity options
• ErCut7 Controller
• 350 mm throat depth
• Automatic hydraulic cutting angle adjustment
• Automatic hydraulic feeler adjustment

UTOMATIC ANGLE ADJUSTABLE HYDRAULIC GUILLOTINE SHEARS

Automatic Solutions, Perfect Cuts...
When you enter length, thickness and type of the metal sheet to be cut into easily programmable controller; blade gap, cutting angle and cutting length are automatically and instantly adjusted. This provides flexibility for various production requests, and prevents time losses completely by aiming high efficiency.

By selecting CNC HVR model developed by ERMAKSAN engineers; you will bring up to date technology to your company with maximum safety, high accuracy and unique ease of handling.

LED FITTED BODY:
The led fitted body adds aesthetics to the machine, and allows operator to perform cutting operations using the light of machine, without any need to workshop lights.

7” CONTROLLER:
With its intuitive interface, 7” touch screen controller developed by Ermaksan with its advanced engineering and sector experience is the closest friend of the operator.

CENTRAL LUBRICATION:
Automatic lubrication of the parts that require lubrication for extended lifetime of the machine by central lubrication system, without the need for an operator.

RTS (Return To Sender):
This is the system to remove cut sheet metal automatically from the front part of the machine for performing several operations on the same sheet metal in a minimum time.

ANTI TWIST SYSTEM:
Anti-twist system keeps the material being cut stable during top blade moves, and prevents twisting while cutting thin and strip-shaped sheet metals.

PNEUMATIC SHEET METAL SUPPORT SYSTEM (X Type):
Pneumatic X-type arms, which prevent wide and thin sheets from sagging, work parallel to the ground from the bottom, and support the cut sheet during the cutting operation. Thus, more precise cuts are obtained.
