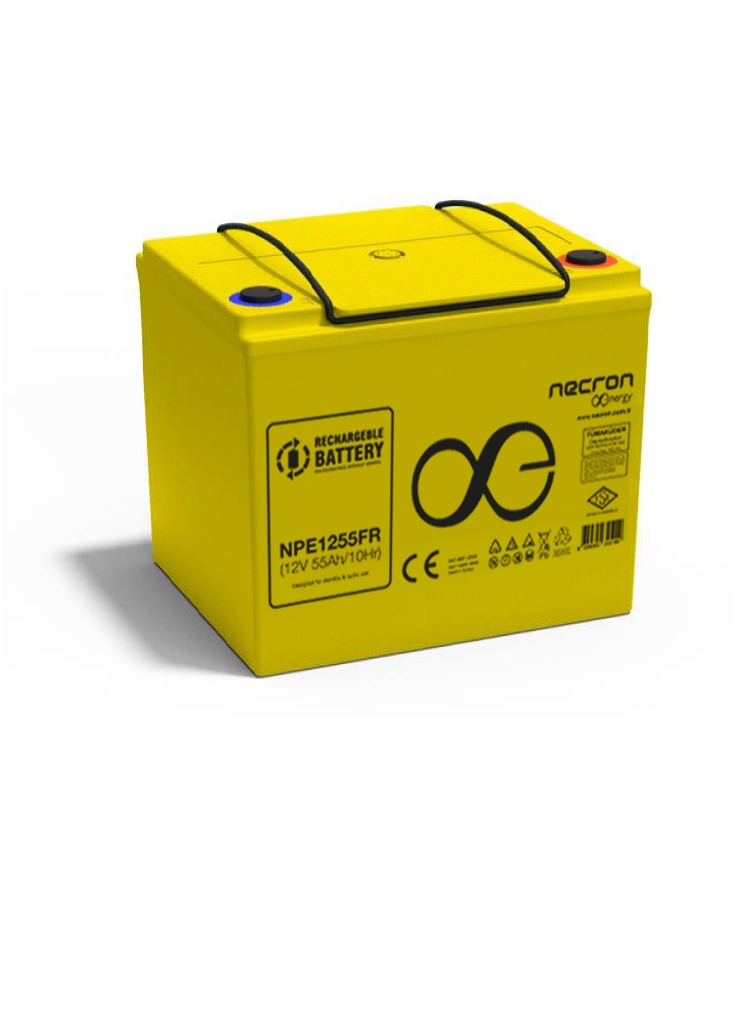

NPE 1255FR Yellow Line 12V 55Ah

Available from Necron EnergyTurkey

Description

Physical Characteristics | SI Units | US Units:
Length | 215 mm | 8.5 inc
Width | 173 mm | 6.8 inc
Height | 220 mm | 8.7 inc
Weight | 22 kg | 48.5 lbs

Electrical Specifications:

Nominal Voltage: 12V
Number Of Cells: 6
Rated Capacity: 55 Ah (10 h rate to 1.80 Vpc at 25 °C)
Internal Resistance: 8.1 mΩ (IEC 60 896 - 21/22)
Short Circuit Current: 1572 A (IEC 60 896 - 21/22)
Float Charge Voltage: 2.27 V Per Cell (Vpc) at 25 °C)

Design Features:

Design Life at 20 ºC: Long Life 10-12 Years
Plates: Tick Flat Pasted
Active Material: Very High Purity Virgin Lead
Grid Alloy: Lead - Calcium - Tin Alloy
Electrolyte: Sulpruhic Acid, Analytical Grade
Seperator: Absorbing Glass Mat (AGM)
Operating Temperature: -10 °C to +50 °C +15 °C to +25 °C (recommended)
Venting Valve: Rubber, One Way, Self Resealing (Opening Pressure: 1.7 PSI) (Resealing Pressure: 1.5 PSI)
Internal Gas Recombination Efficiency: More Than 99%
Flame Arrestor: Available
Storage Temperatures: -10 °C to +40 °C
Self Discharge: Less Than 2.0% Per Month at 20 °C
Storability Without Recharging: Up to 6 Months at 20 °C
Shelf Life: Up to 1 Year
Container / Lif Material: Shock Resistant ABS FR; Flammability Class UL94 V0
Terminal Position: Top
Terminal Sealing: Mechanical + Epoxy Double Sealing
Terminal Type: Brass; Frmale; M6 Thread
Terminal Toque: 7 Nm
Transport Terminal Cover: Available
Carrying Handles: Available
Connectors and Bolts: Supplied as Standard
Applicable Standards and Rec.: IEC 60896-21/22; En 50272-2; IEC 61427-1/2; IEC 61056-1; BS 6290-4; IEEE 1184; IEEE 1187; IEEE 1188
Manufacture Standards: ISO 9001; ISO 14001; OHSAS 18001; AQAP 2110

Specifications

Brand
Necron
Country of origin
Turkey
