Aluminum Ground Mounting Structure For Solar PV Systems

Category
Aluminum Ground Mount
Model
KF-CR-17
Country of origin
China

Supplier information

Supplier details
Manufacturer
China

Product description

Report abuse

As Alumimum Solar PV Mounting Systems uses anodized aluminum alloy structure, making the whole system light-weight, durable, recyclable and highly stron g. Flexiblity in height and angle adjustment makes the system applicable for different types of landforms.

Item NO.: KF-CR-17
Payment: T/T, L/C
Product Origin: China
Lead Time: 7 days
Material: Aluminium, Steel
Color: Silver, Black

The main material of the system is high-strength aluminum, and bolts are all stainless-steel, so the anti-corrosion and self-recovery effect is very good, especially suit for island countries, such as Japan, Singapore, Philippines.

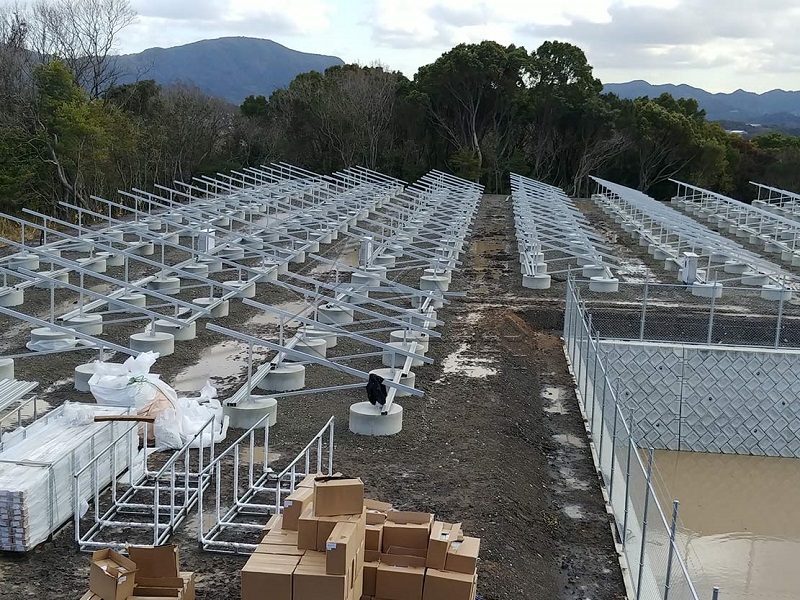

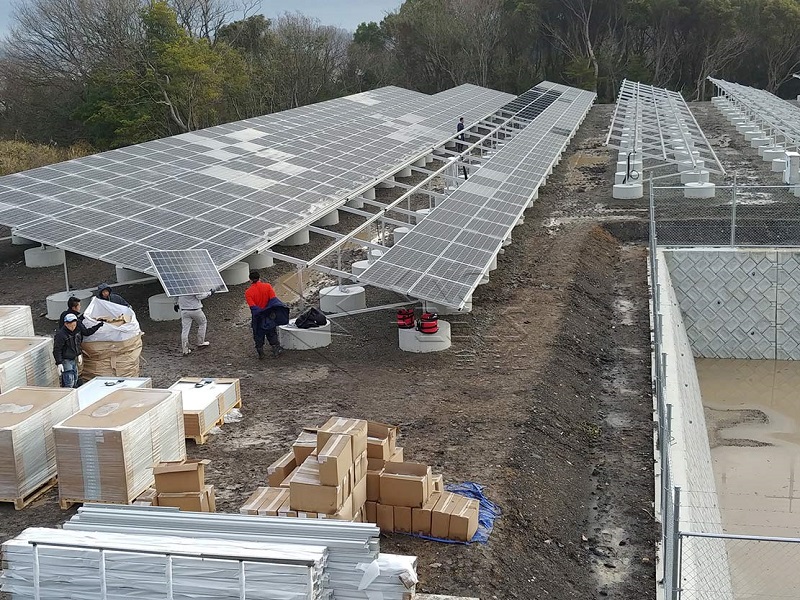

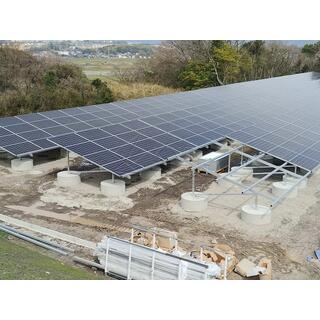

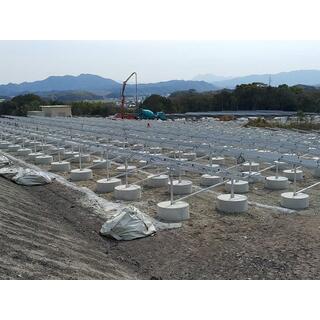

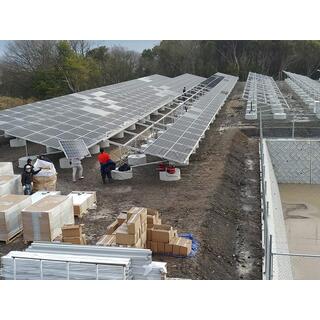

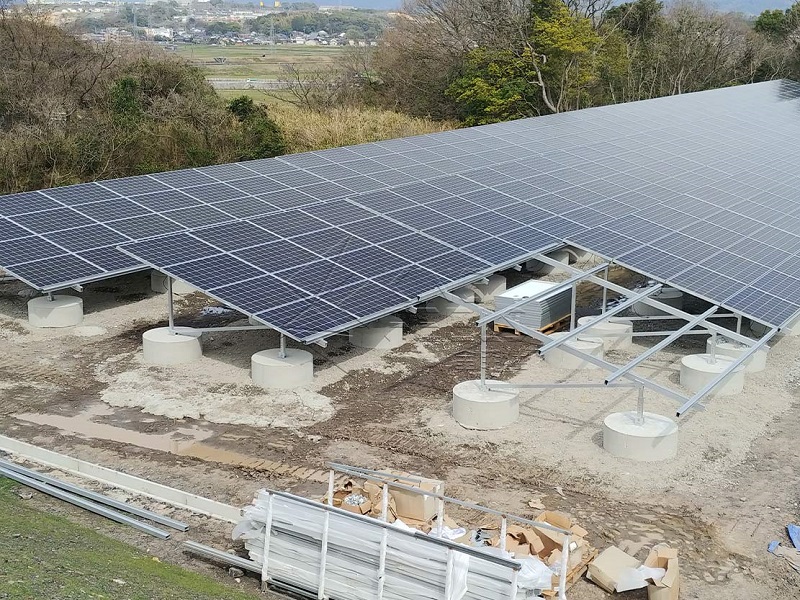

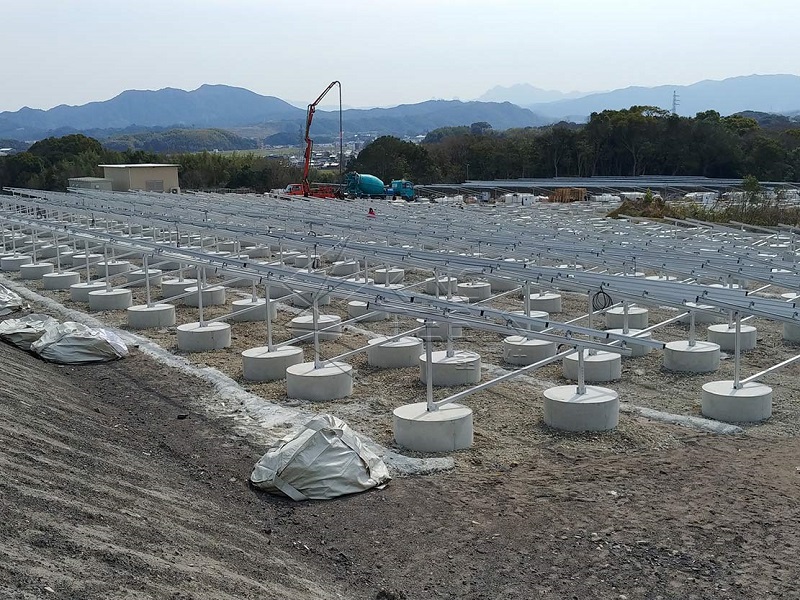

The aluminum ground mount structure can match different base, for example ground screw, pile or concrete foundation. It also can used on flat ground or little slop ground. The array can be placed 2*n vertically, 3*n, 4*n horizontally, or larger arrays can also be done, but the difficulty of construction also needs to be considered when selecting the array. If the height of the upper end of the module is particularly high, the construction on site will be very difficult. The selection of span depends on the parameters of wind load and snow load of the project site. Through calculation, we can get the number of foundations. Of course, in the process of design, we also need to consider the situation of land as much as possible. If the customer can provide soil report and foundation test report, Kingfeels aluminum solar engineer team can provide a more accurate design.

Technical Data:

Install Site: Open field area
Max Wind Speed: ≤60m/s
Snow Load: ≤1.4KN/M2
Tilt Angle: 0-45 degree
Applicable Module: Framed or frameless
Module Orientation: Landscape, portrait
Standards: AS/NZS 1170, ASCE 7-10, JIS2017
Material: AL6005-T5, SUS304
Anti-corrosive: Anodized
Color: Silver, Black
Warranty: 12 years

Key Features:

• Top quality with competitive price---one of the biggest aluminum solar mounting manufacturer with integrated production in Xiamen.

• To provide you with the most cost-effective solar racking solution.

• Full anodize for all components---offering 12 year warranty and 25 year life time.

• Excellent design ability---over 20 structure engineers, the chief engineer has 10 years' experience of structure engineering for aluminum solar mounting systems.

• Components are highly pre-assembled at the factory, saving you a lot of time and cost.

Why choose Kingfeels?

1. Top quality with competitive price---one of the biggest aluminum solar mounting manufacturer with integrated production in Xiamen.

2. Full anodize for all components---offering 12 year warranty and 25 year life time.

3. Excellent design ability---over 20 structure engineers, the chief engineer has 10 years' experience of structure engineering for aluminum solar mounting systems.
