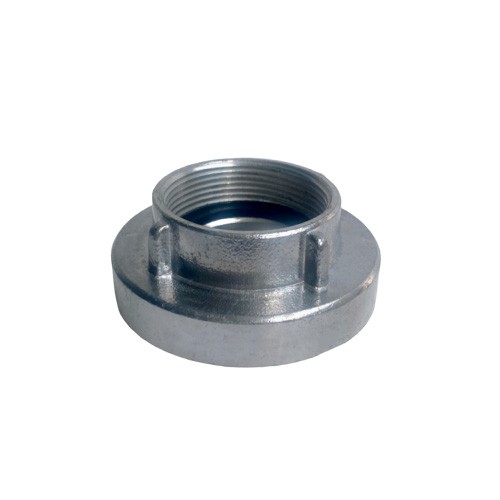

Storz Coupling X Female Thread

Storz Coupling
Country of origin

Supplier information

Supplier details

Product description

Report abuse

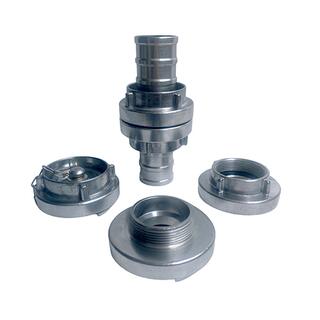

Storz coupling designated as fire hose coupling, they have wide usage in many industries. It use due to their resistance aganist corrosion, acids, and water, it is standard coupling on fire hoses.storz couplings can be joined to any other coupling of the same diameter. To couple a Storz connection, the two opposing couplings are pressed together such that the hooks of each one are inserted into the slots in the flange of the other. Then they are rotated in opposite directions until they are tight, or latches engage. To uncouple them, the latches are released and the connectors are turned in the opposite directions from coupling, and then separated when the hooks and slots are aligned. you can connect various hoses using storz coupling very easily, securely, quickly.

Type: Male, Female, Hose Tail, Blank Cap

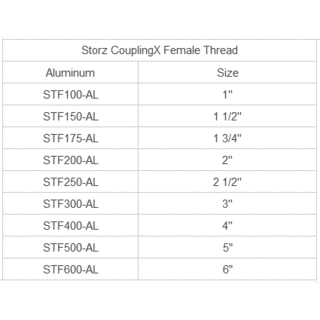

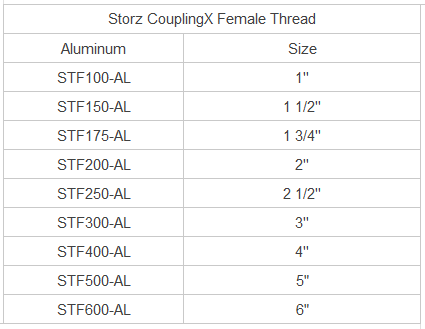

Size: 1", 1-1/2", 1-3/4", 2", 2-1/2", 3", 4", 5", 6"
Material: Aluminum, Brass
Gasket: NBR
Thread: BSP
Working pressure: 150 – 250 Psi
Manufacture method: Gravity casting
Application: Storz Coupling is widely used in firefighting, industrial operation, marine, chemical, oil, agriculture
