1279 Duragauge Pressure Gauge

Category
Pressure Gauges
Brand
Ashcroft
Country of origin
United States

Supplier information

Supplier details
Manufacturer
United States

Product description

Report abuse

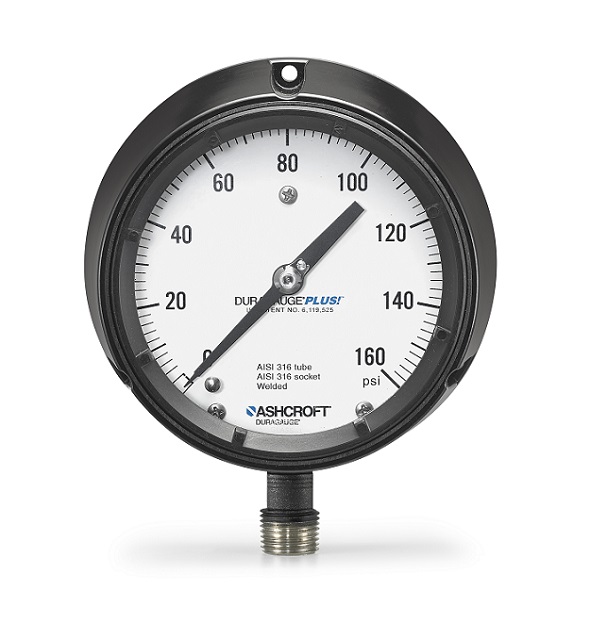

The Ashcroft® 1279 Duragauge® is a high performance 4.5″ ASME style Process pressure gauge with a comprehensive design for maximizing safety and reliability. Features include a Solid Front Case and a 10 year pressure system warranty.

Key Features:

• Wide selection of Bourdon tube materials, pressure connections and pressure ranges
• Solid-front case design for safety
• Teflon®-coated, 400 stainless steel movement
• PLUS!™ Performance (option)

Applications:

Process Market:
• Refineries
• Chemical and Petrochemical Plants
• Offshore Oil and Gas
• Natural Gas Transmission and LNG
• Water and Wastewater
• Power Generation
• Mining and Metals

Industrial Market:
• Turbines & Compressors
• Cryogenics
• Waterjets and Waterblasters

Specifications:

Accuracy:
±0.5% of span (ASME B40.100, Grade 2A)

Size:
4 1/2"

Pressure Ranges:
Vacuum, Compound, 15 to 30,000 psi

Process Connection Size:
1⁄4 NPT Male, 1⁄2 NPT Male, 9⁄16-18 UNF-2B (high pressure connection)

Process Connection Location:
Lower, Back

Case Style:
Solid Front

Window:
Acrylic, shatter proof glass, non-glare glass (OPT.)
Glass

Weather Protection:
Case is not sealed and recommended for weather protected environment only
Liquid filled or field fillable: IP66 or NEMA 4X (S&P tube and socket), NEMA 4 (A&R tube and socket Hermetically sealed: IP66

Dampening:
Liquid fill, throttle screw, PLUS!™ Performance

Mounting:
Stem, surface, flush (STD.), pipe, remote (OPT.)

Movement:
Rotary, adjustable

Certifications & Approvals:
• CE
• CRN
• UKCA
