Threaded Thermowell

Category
Thermowells
Brand
Ashcroft
Country of origin
United States

Supplier information

Supplier details
Manufacturer
United States

Product description

Report abuse

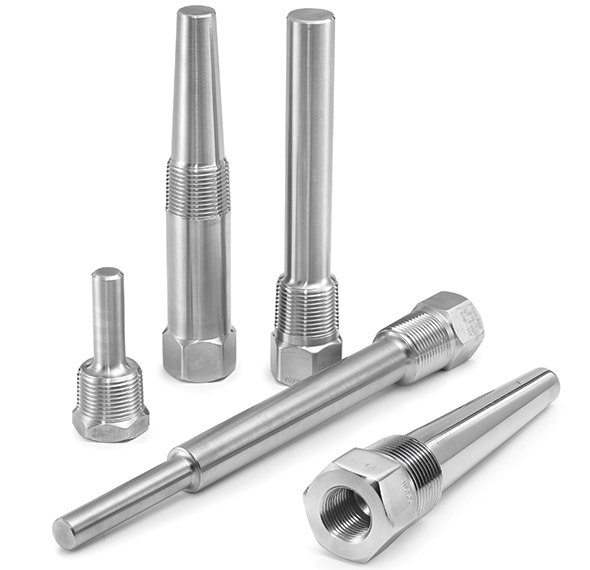

Ashcroft® threaded thermowell isolates and protects a temperature instrument’s sensing element from pressurized, high velocity and corrosive media. They ensure longer life and accurate measurement while allowing the sensing instrument to be removed without shutting down the process. A wide selection of materials, sizes and dimensions are available.

Key Features:

• One-piece bar stock construction
• Stamped with mil traceable materials and heat number
• Testing and certifications including Wake Frequency Calculations per ASME PTC 19.3 TW-2016
• Standard or customized shank dimensions and styles
• Wide selection of material

Applications:

Process Market:
• Offshore Oil Rigs
• Chemical and Petrochemical Plants
• Water and Wastewater Pressure Control
• Pulp and Paper
• Refineries
• Power

Industrial Market:
• Turbines and Compressors
• Equipment Skids

Medical and Life Sciences:
• Pharmaceutical / Biotech
• Food and Beverage

Specifications:

Shank Style:
Stepped
Straight
Tapered

Process Connection Size:
1/2"
3/4"
1"

Instrument Connection:
1/2 NPSM
1/2 NPT Female

Bore Size:
0.260"
0.385"

Surface Finish:
16-32 RA

Lagging:
2" if U-dimension is <3"
3" if U-dimension is >3"
Custom Lag dimensions are available

Cap and Chain:
Brass
Stainless Steel
