Stainless Steel Gate Valve, F316, API 602, 3/4 Inch, 800 LB

Category
Gate Valves
Model
0.75G8SF31612
Country of origin
China

Supplier information

Supplier details
Manufacturer
China

Product description

Report abuse

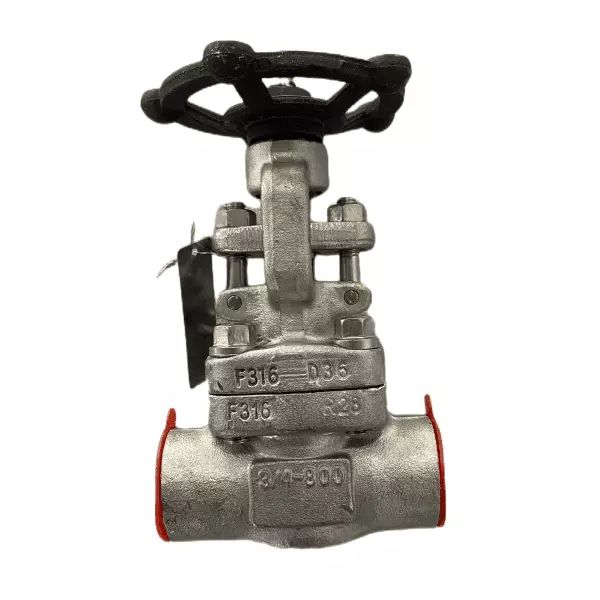

This F316 Stainless Steel Forged Gate Valve complies with API 602 standards and features a 3/4 inch size and 800 lb pressure rating with socket weld ends. It has an A182 F316 body and Trim 12, and is operated with a handwheel.

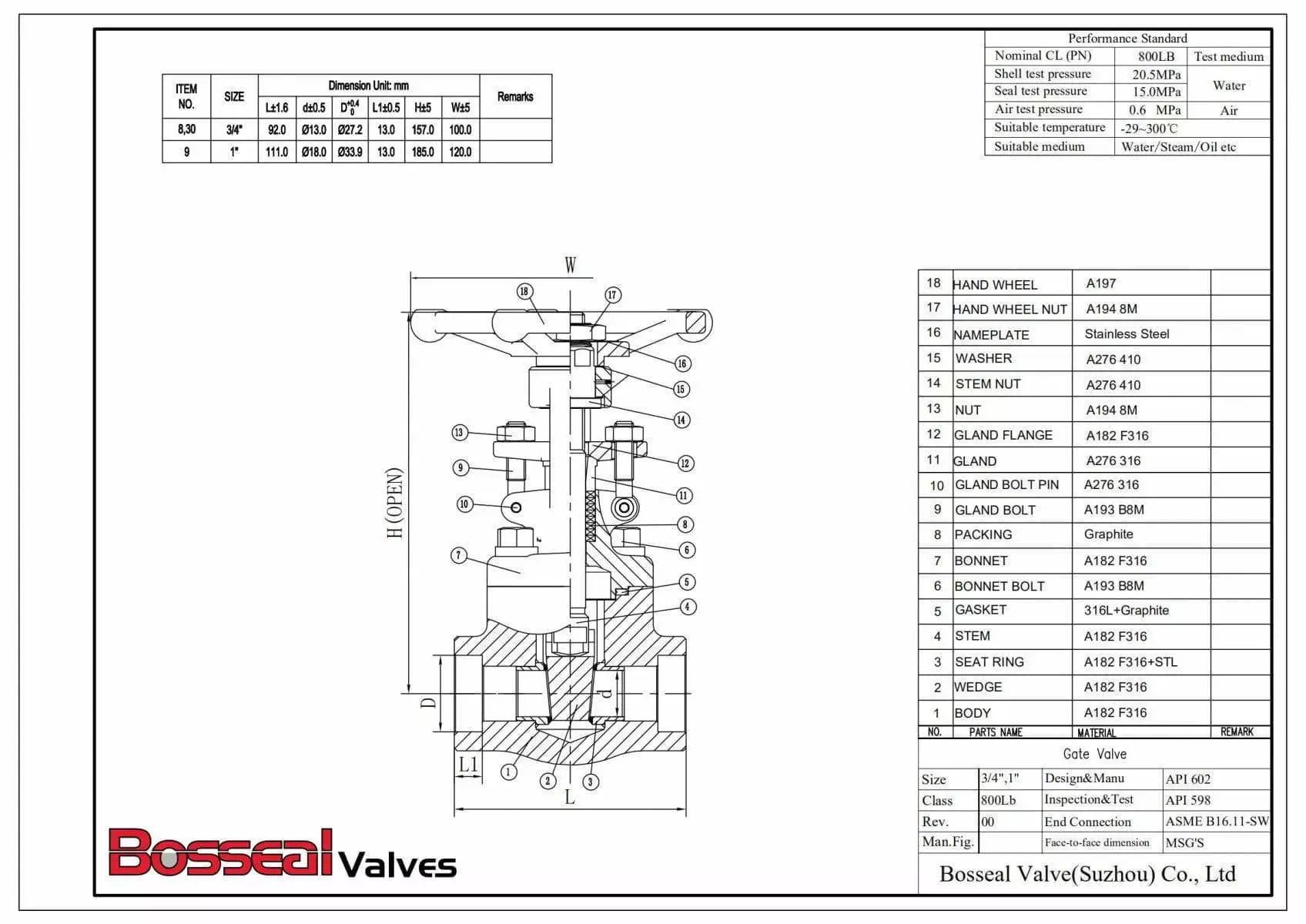

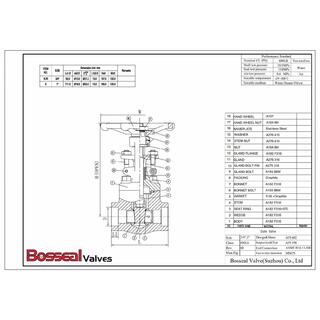

F316 Stainless Steel Forged Gate Valve, API 602, 3/4 INCH, 800 LB, SW, A182 F316 Body, Trim 12, Handwheel

Valve Description:
1851011 API 602 Forged Gate Valve 0.75G8SF31612
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet, OS & Y
Nominal size: 3/4 Inch
Nominal class: Class 800 LB
Bore: Regular Bore
End Connection: SW-Socket Weld End
Operation: Handwheel
Body Material: ASTM A182 F316
Trim Material: SS316+STL, No.12
Face-to-face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid wedge, Adjustable Packing Gland

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +400℃
Operation: Handwheel
