ASTM A182 F51 Globe Valve, ASME B16.34, 2 Inch, 600 LB, RF

Category
Globe Valves
Model
2GL6RF51
Country of origin
China

Supplier information

Supplier details
Manufacturer
China

Product description

Report abuse

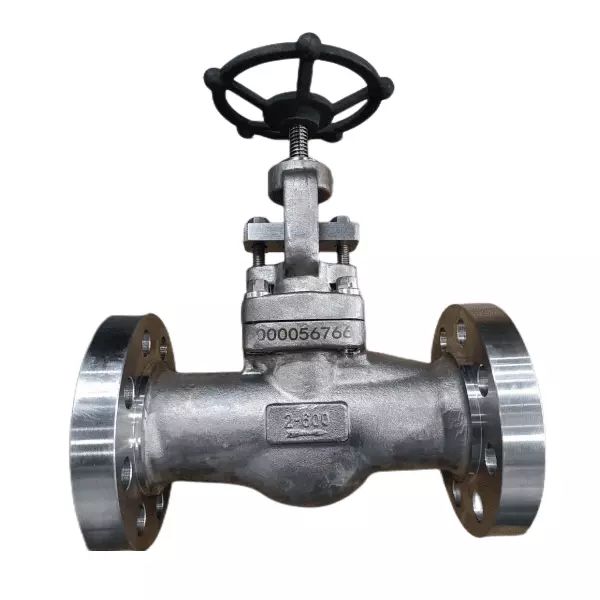

We Provide Forged Globe Valves, Duplex Steel ASTM A182 F51 Body & Trim, 2 Inch, 600 LB, API 602, ASME B16.34, Regular Bore, Integral Flanged RF Ends.

Duplex Steel Integral Flanged Forged Globe Valve, ASME B16.34, 2 INCH, 600 LB, RF, A182 F51 Body & Trim, Handwheel

Valve Description:
API 602 Forged Globe Valve
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet, OS & Y
Nominal size: 2 Inch, DN50
Nominal class: 600 LB, PN100
Bore: Regular Bore
End Connection: RF-Flanged Raised Face
Operation: Handwheel
Body Material: ASTM A182 F51
Trim Material: ASTM A182 F51
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid Disc, Adjustable Packing Gland, Integral Flange

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: 150LB-2500LB
End connection: RF, RTJ
Working temperature: -29℃ - +400℃
Operation: Handwheel
