Phase-shift Voltage Regulaor Single Phase Rectifier Module 30a 60a 100a 150a 200a

Single Phase Scr Power Regulator
Country of origin

Supplier information

Supplier details

Product description

Report abuse

This product is a multi-functional power module, which combines thyristor power circuit, phase-shift and trigger circuit. It is a integrated electricity phase-shift and open-loop system. It can realize the voltage control of the load. With built-in linear control circuit, it is highly precise and stabilized. It is widely used the fields such as speed modulation of DC motor, industrial automation, electric heating control, mechanical and electrical integration, diversified power supplies. It has hand-control and automation control interfaces, no phase order requirements of the AC inputs. With built-in linear control circuit, it is highly precise and stabilized.


Input voltage: 200-240VAC
Power source: 10V
Controlling voltage: 0-10VDC, 0-5VDC
Controlling current: 0-20mA, 4-20mA

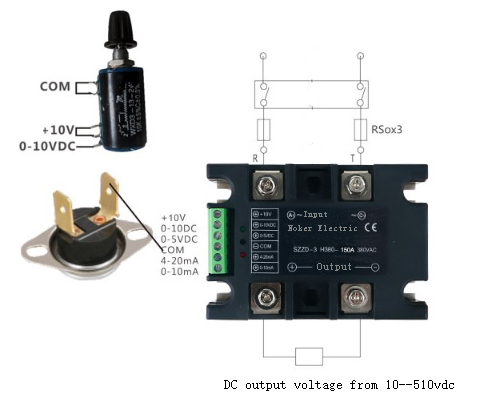

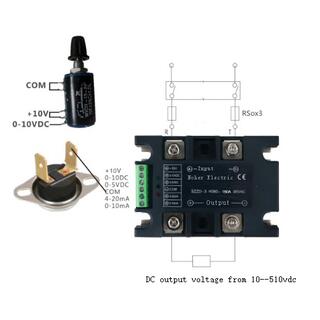

Hand-control potentiometer resistance: 10KΩ
Cooling method: Wind-cooling radiator, wind speed≤6m/s
Ambient temperature: -30~+40oC
Output voltage: 10-513DVC

Customer Service:

1. ODM/OEM service is offered.
2. Quick order confirmation.
3. Fast delivery time.
4. Convenient payment term.

At present, the company is vigorously expanding overseas markets and global layout. We are committed to becoming one of the top ten export enterprises in China’s electrical automatic product, serving the world with high-quality products and achieving a win-win situation with more customers.
