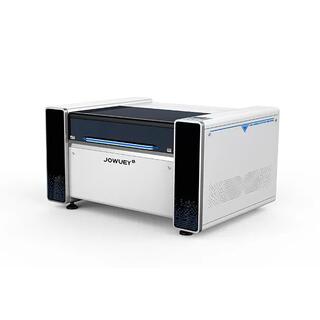

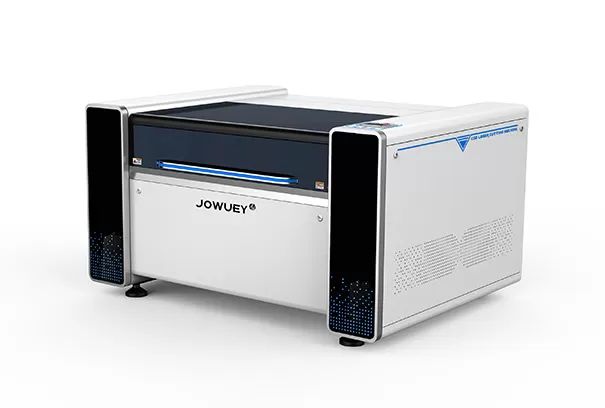

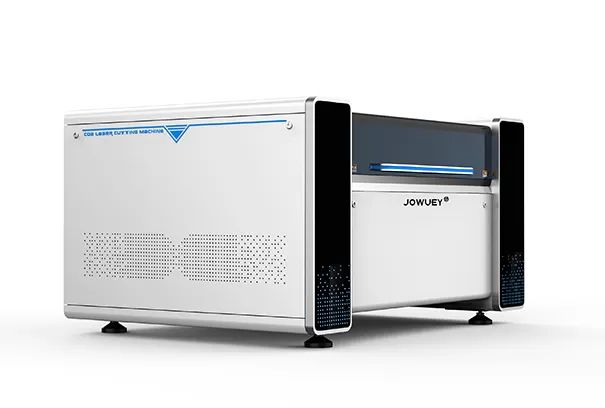

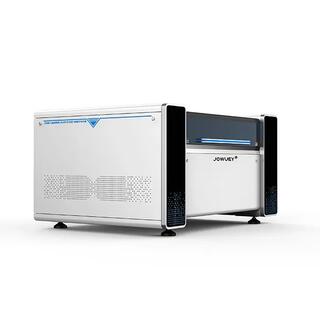

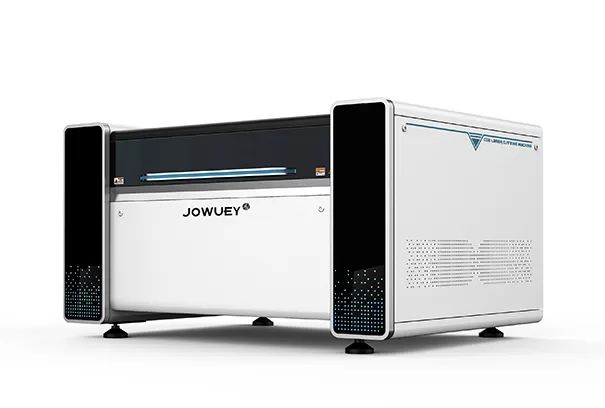

JW1390-M7-S CO2 Laser Cutting Machine

Product details

1390M7-S with up and down table is a professional co2 laser engraving and cutting machine. The working area is 1300*900mm, Z axis height can be 300mm. Engraving speed is fast. Up to 1200mm/sec. The structure is very strong, which makes it more steady. This machine equipped with a honeycomb and a blade worktable and with a water chiller, makes it possible to install a 100W or even 300W laser tube. The front and back material pass-through door makes it possible to cut long materials.

Features:

CO2 lasers have very high conversion efficiency and are widely used in light industry. It is clean, safe and pollution-free.

• The front and back material pass-through door makes it possible to cut long materials.
• Whole machine is equipped with leakage overload protector
• Independent laser power supply to avoid high voltage interference
• Filament optical frame, the light path is more stable

Parameters:

Working Area: 1300*900 mm
Working Voltage: AC 220V±10%,50HZ
Control System: Ruida controller
Driver: Leadshine stepper motor, Servo motor
Machine table: Blade table, Honeycomb table (Optional)
Laser type: Glass Inner Cavity Sealed CO2 Laser Wavelength 10.6μm
Energy regulation: Pure circulating water cooling
energy regulation: 0-100% stepless control, 0-100% adjustable within the software
Minimum Formed Words: ≤±0.05mm
Engraving speed: 0 -1200mm/s
Cutting speed: 0 - 600mm/s
Minimum Formed Words: English word 1mm
Working environment: Temperature: 0-45C, Humidity 5-95%(No Condensate Water)
Total power: <3KW
Graphic format supported: BMP, JGP, PNG, DXF, etc.

Cutting Capacity:

Power | Acrylic | Wood | MDF
80 W | 10mm | 10mm | 5mm
100 W | 15mm | 13mm | 7mm
150 W | 20mm | 18mm | 10mm
180 W | 22mm | 20mm | 12mm
300 W | 30mm | 30mm | 18mm

Machine Details:

Ruida Controller:

01 It can run completely offline, supports U disk to read and write processing files, and can modify file processing attributes; 02 Dynamic display of processing trajectory, coordinate points, progress bar, etc. 03 Panel direct operation automatic focus, support contact and non-contact; 04 Cooperate with the expansion interface of external equipment to facilitate customization requirements.

Lens holder:

We use the thin wire optical frame made of pure copper, which is not easy to change light, makes the optical path more stable, can fix the mirror wire, and has the effect of cooling the lens quickly.

X axis:

X aixs belt transmission, and we use synchronous gear made of pure copper, which is wear-resistant and corrosion-resistant.

The installation of motors:

Our company's motor is installed vertically. There is only one resonance point can reduce the vibration and improve cutting effect.

Electric lifting table:

The distance from the laser head to the table on a common table is 30mm, and it can reach 260mm with the electric lifting table.
