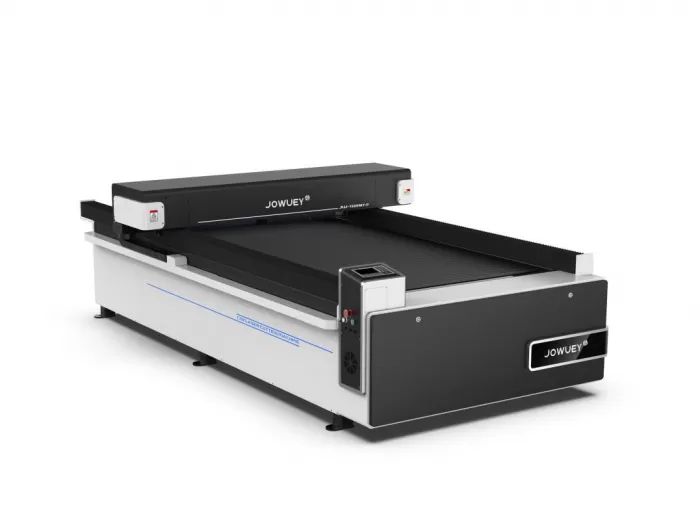

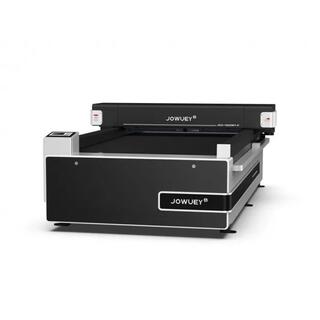

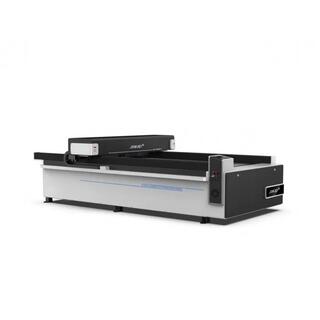

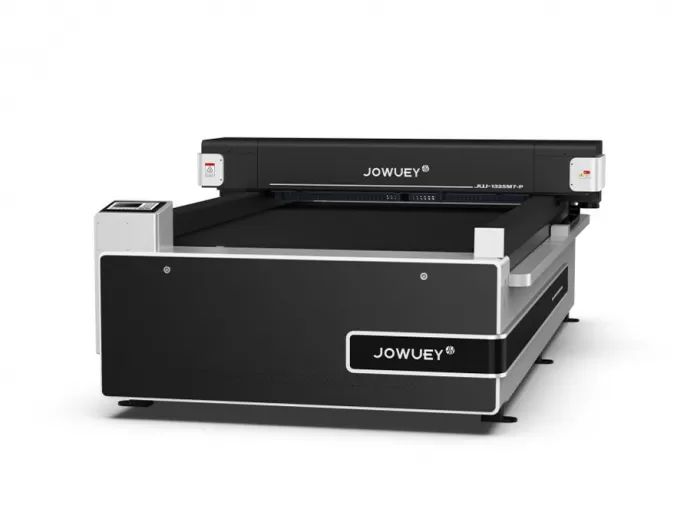

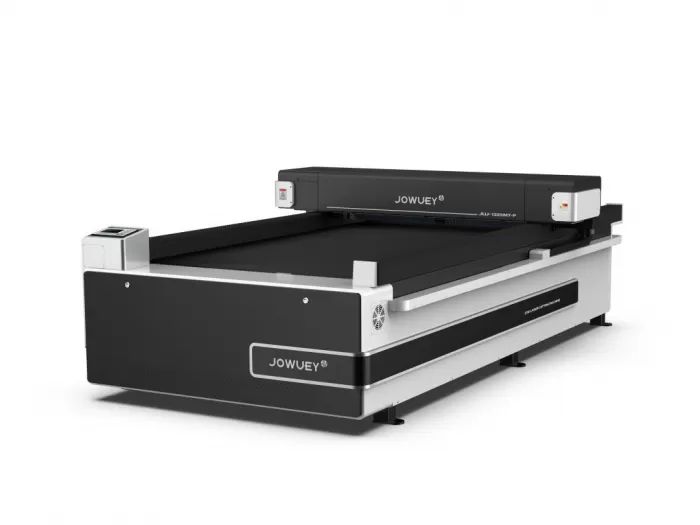

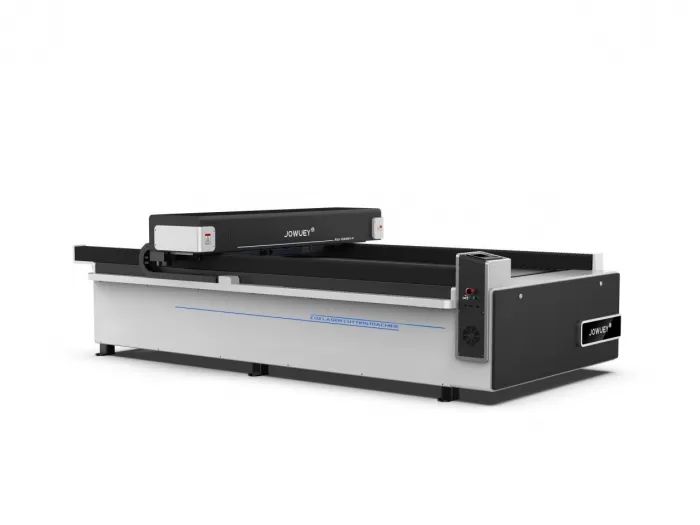

JW1325-M7-P Belt Trasmission CO2 Laser Cutting Machine

Description

CO2 Laser cutting and engraving machine can work with most materials, such as Cloth, leather, wool, acrylic, plexiglass, board, plastic, rubber, crystal, ceramic tile, bamboo product, jade, granite, marble, resin and other non-metal materials.

Price from $2,000 to $8,000

Features:

CO2 lasers have very high conversion efficiency and are widely used in light industry. It is clean, safe and pollution-free.

• Unique upper flue system that sucks away the smoke
• Whole machine is equipped with leakage overload protector
• Independent laser power supply to avoid high voltage interference
• Filament optical frame, the light path is more stable

Parameters:

Working Area: 1300*2500 mm
Working Voltage: AC 220V±10%,50HZ
Control System: Ruida controller
Driver: Leadshine stepper
Machine table: Blade table、Honeycomb table(Optional)
Laser type: Glass Inner Cavity Sealed CO2 Laser Wavelength 10.6μm
Energy regulation: Pure circulating water cooling
Energy regulation: 0-100% stepless control, 0-100% adjustable within the software
Minimum Formed Words: ≤±0.05mm
Engraving speed: 0 -1200mm/s
Cutting speed: 0 - 600mm/s
Minimum Formed Words: English word 1mm
Working environment: Temperature: 0-45C, Humidity 5-95%(No Condensate Water)
Total power: <5KW
Graphic format supported: BMP, JGP, PNG, DXF, etc.

CUTTING CAPACITY:

Power | Acrylic | Wood | MDF
80 W | 10mm | 10mm | 5mm
100 W | 15mm | 13mm | 7mm
150 W | 20mm | 18mm | 10mm
180 W | 22mm | 20mm | 12mm
300 W | 30mm | 30mm | 18mm

Machine Details:

Reci laser tube:

01 Beam quality TEM00 mode more than 95%; 02 Advantages of optical resonant cavity to improve product power; 03 The world's most advanced nuclear radioactive material coated lens; 04 Laser tube metal head and glass direct sintering process.

Ruida controller:

The most recent DSP control system, USB interface, LCD screen, and the board as a whole have better ability to resist high voltage and anti-static interference.

Lens holder:

We use the thin wire optical frame made of pure copper, which is not easy to change light, makes the optical path more stable, can fix the mirror wire, and has the effect of cooling the lens quickly.

Copper synchronous gear:

The synchronous gear is made of pure copper, which has the characteristics of wear resistance and corrosion resistance.

The installation of motors:

Our company's motor is installed vertically. There is only one resonance point can reduce the vibration and improve cutting effect.

Laser power supply:

We provide a stabilized laser power supply to continuously supply power to the laser tube, making the voltage more stable, the optical path more stable, and with the cutting effect good.

Machine bed:

Heavy duty body, square tube welding, and with precision milling process,all above are ensure the stability when working and make perfect cutting effect and cutting accuracy.

Upper smoking system:

With upper smoking system can highly improve the smoking effect.

Brand
Jowuey
Model
JW1325-M7-P
Country of origin
China
