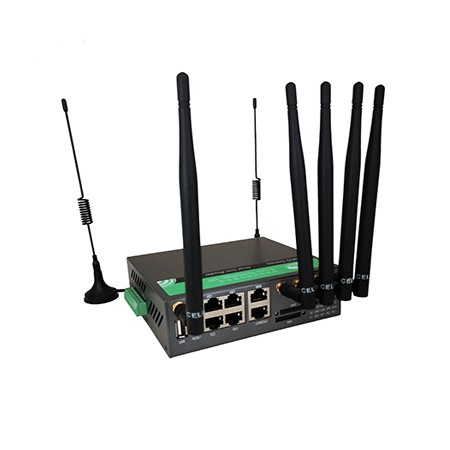

5G Modem Router Replaceable High Gain

Description

Szelins H900 Series 5g modem router is the Dual Core CPU Gigabit and powerful high performance of Dual SIM 5G router designed for critical infrastructure, M2M, IoT and industrial applications;
Dual Core CPU 880MHz Frequence;
WAN RJ45 * 1 + LAN RJ45 * 4 + DIO + Serial + USB;
802.11n and 802.11AC 2.4GHz + 5GHz Dual band or Tri band WiFi;
Industrial, rubust, secure and high reliable built-in 5g modem with 2 sim card slots, fail over and load balance;
High data speed via 5G 4G 3G networks MIMO;
Secure data transactions with advanced VPN options;
Advanced dynamic routing, security and firewall features;
Centralized manageable;
GNSS GPS tracking optional;
Serial port * 2;
USB * 1;
DI / DO port * 4;
Wide range power input, dual power input;

5g modem router:

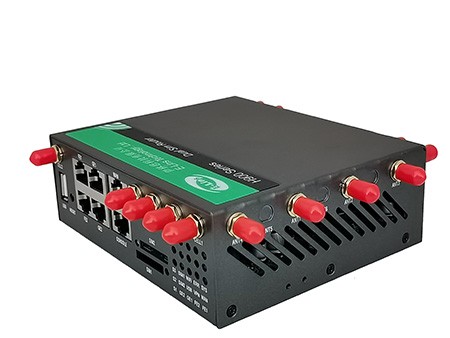

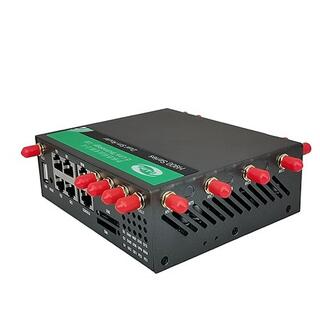

The szelins H900 Series 5g modem router is a compact, ruggedized Gigabit Ethernets 3G/4G LTE/5G router, with option feature of Dual/Tri Band Wi-Fi (2.4Ghz + 5Ghz) and dual SIM. It is qualified for M2M (Machine to Machine), IoT (Internet of Things) and In-Vehicle applications.

With an extensive list of safety and hardening certifications, the H900 5g modem router is engineered to protect against extreme temperatures, humidity, shocks, vibrations, dust, reverse polarity, and transient voltage, which is widely used in more than twenty industrial fields, such as CCTV security surveillance, vehicle, Telemetry, vending machines, power control, AMR, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other areas.

Highlights:

Multi-carrier 3G/4G LTE/5G support with Dual SIM card slot. FDD and TDD supported;
Gigabit Ethernets;
Cellular/WAN RJ45/WiFi client failover and Load Balance (Bandwidth bonding);
USB3.0 supported;
Supports 5G with SIM-based auto-carrier selection;
External antenna connectors for high gain antennas replacement;
MIMO supported;
Cloud-managed (with NMS network management system), TR-069, Web management, SMS, SSH/Telnet/Command, SNMP;
Dual-band or Tri-band, dual concurrent WiFi (802.11 a/b/g/n/ac, 2.4Ghz + 5Ghz), MU-MIMO WAVE2;
Certified 3G/4G/5G enterprise/industrial grade internal modems;
Built-in transient and reverse polarity voltage protection, over-current and over-voltage protection;
5-40V DC voltage input range (5-60V DC option), Dual Power Inputs / Power Failover;
POE passive is supported
GPS / GNSS / Beidou supported;
Serial Ports * 1 or 2;
Console Port;
DI/DO port * 4;
Supports Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi;
Ruggedized to ensure always-on connectivity;
Create real-time alerts to monitor uptime;
Offer secure, guest WiFi to passengers;
Advanced security, VPN, and stateful firewall to protect sensitive data;

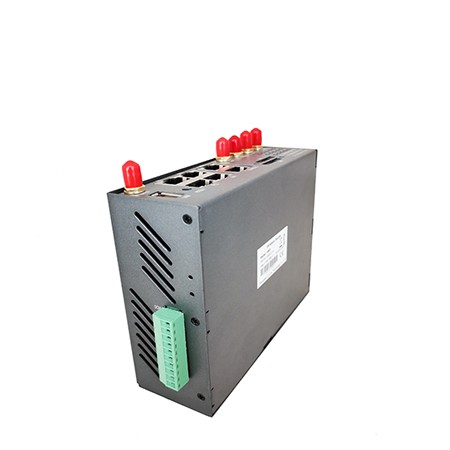

Robust Metal Case is ruggedized for vibration, shock, provide IP30 protection;
Desktop, Wall-mount and Din-rail mount of installation;

To further enhance the wireless M2M and IoT reliability, the H900 5g modem router has a second SIM Card slot so that you can insert two SIM cards to get different applications.

With the failover feature, usually you can get two SIM Cards from different mobile network. One is the primary SIM, the other is backup SIM. In the event that the primary network becomes unavailable then the router will switch to the backup SIM card and use the alternative service provider.

More Highlights:

>> Industrial Design. Rubust and Working in Wide Range Temperature
H900 5g modem router is Industrial designed, excellent function to ensure 7x24h running in stability and reliability;

Wide range power input with dual types of input supported;
Alloy-metal case, IP30 protection standard;

Quality industrial grade casing provides robust and reliable 5G router for installation in many different environments and operating temperature of -35 Celcius to +75 Celcius.

>> With Multi-Powerful-Features

>> Dual SIM
The H900 5g modem router can can built-in industrial class radio modem module to provide rubust and reliable cellular network communications. With SIM slot, users can insert SIM cards to dialup 3G/4G/5G networks directly. H900 5g modem router is with Dual SIM option for failover applications.

>> Dual Band or Tri band Concurrent WiFi with Wave2 and MU-MIMO
The H900 5g modem router built-in 2.4GHz Wi-Fi default. Option 2.4Ghz + 5GHz dual band or tri band WiFi with concurrent data transmission to achieve high powerful WiFi performance. Also it supports high gain WiFi module including 802.11AC Wave2 and MU-MIMO technology for installation and replacement to meet different WiFi requirement.

With multi radios, H900 5g modem router gets 2~3 times number of served clients comparing to normal single radio.

With multi data stream, H900 5g modem router gets 3~4 times data bandwidth comparing to normal single data stream.

With MU-MIMO technology, H900 5g modem router gets 2~3 times data bandwidthand and number of served clientscomparing to normal single radio single data stream.

H900 5g modem router supports high gain WiFi replacement to meet different applications.

>> Rich Interface

>> VPN Safety and Securiy
Offer more VPN safety application schemes, data transmission reach to financial grade standard.
E-Lins wireless routers support APN/VPDN private networks, also including various VPN access such as IPSEC, PPTP, L2TP, GRE,OPENVPN, DMVPN, etc. including the function of VPN client and server. Add one more channel of encryption communication under the base of special network can fully guarantee the safety and accuracy of data of dealing and management.

>> Dual Power Input
The H900 5g modem router supports wide voltage range of 5V to 40V DC (option up to 60V DC) and has two power inputs so if the primary power fails then the modem will automatically use the second power supply without link downtime.

>> Three Types of Installation (Din-rail, wall-mount, Desktop)

>> Beidou / GPS is supported

>>Multi-management
Supporting Web GUI, Telnet SSH Command, SMS, TR-069, SNMP, and NMS (E-Lins Network Management System), users can manage and control the H900 5g modem router easily and flexibly.
All E-Lins communication terminals can be connected to the E-Lins remote managing and controlling platform (NMS), which brings the generous devices scattering in different areas to carry out concentrate monitor, configuration, updated, diagnose, maintenance, manage and control. Highly reduce the maintenance costing in the operator, integrator, devise supplier etc, increase the managing efficiency.

Specifications:

Main Feature:

WAN:
Dual Cellular 3G/4G LTE (FDD/TDD)/5G
WiFi as WAN
Failover/Failbackand Load Balance (Bandwidth bonding)
Advanced Modem Failure Check
IP Passthrough
WAN ports support Cell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual, standby)

LAN:
DHCP Server, Client, Relay
DNS and DNS Proxy
DDNS
UPnP
DMZ
Multicast/Multicast Proxy
QoS (DSCP and Priority Queuing)
MAC Address Filtering
VLAN 802.1Q

WiFi (Option):
Single Band, ual-Band or Tri-Band, Dual-Concurrent
802.11 a/b/g/n/ac
Up to 128 connected devices (64 per channel – 2.4 GHz and 5 GHz)
WPA2 Enterprise (WiFi)
Hotspot/Captive Portal
SSID-based Priority

VPN AND ROUTING:
IPsec Tunnel, PPTP, L2TP, GRE Tunnel, OpenVPN (option), DMVPN (option);
OSPF/BGP/RIP, Virtual Server/Port Forwarding, IPv6 (option), VRRP;

MANAGEMENT:
E-Lins Enterprise Cloud Network Management System (NMS)
Web UI, API, CLI/SSH/Telnet
Data Usage Alerts (router and per client)
Advanced Troubleshooting (support)
Device Alerts
SNMP
SMS control
TR-069

SECURITY:
RADIUS and TACACS+ support
802.1x authentication for Ethernet
Certificate support
ALGs
MAC Address Filtering
Advanced Security Mode (local user management only)
Per-Client Web Filtering
IP Filtering
Content Filtering (basic)
Website Filtering
Zone-Based Object Firewall with host address (IP or FQDN), port, and mac address
Other Details: NAT, SPI, port blocking, service filtering (FTP, SMTP, HTTP, RPL, SNMP, DNS, ICMP, NNTP, POP3, SSH), protocol filtering, WAN ping (allow/ignore)

OPTIMIZED IP COMMUNICATIONS:
Automated WAN Failover/Failback support
WAN Affinity and QoS allow prioritization of VoIP services
Advanced VPN connectivity options to HQ
SIP ALG and NAT to allow VoIP and UC communications to traverse firewall
MAC Address Filtering
802.1p/q for LAN QoS segmentation and treatment of VoIP on LAN
Private Network support (wired and 5G WAN)

Firmware update:
support firmware update locally, remotely (LAN, WiFi and OTA WAN) and RMS (Remote Management System) option;

DI/DO (Digital Input and Output):
4 ports, 0-3.3V. Support status monitor via SMS and Email;
Option: customers can order E-Lins switch control board (5-40VDC supported)

Others:
Cellular and WiFi MIMO supported;
Syslog (local and remote);
DDNS;
DNS proxy;
Optimized EMC design;
Real-time clock (NTP, support update with defined hours);
WAN/LAN/Memory statistics;
Local/remote profiles backup and retrieve;

Feature Details:

Redundancy and Load Balancing:
Failover/failback with 5G, 4G, 3G; WAN failure detection, VRRP;
Auto-dial feature, keep alive link;
LCP, ICMP check;
Built-in watch dog;
Cellular (3G/4G/5G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client three line redundancy;
Option Feature: Ethernet with rule selection, advanced load balancing options (round robin, spillover, data usage, rate)

Intelligent Routing:
UPnP, DMZ, virtual server/port forwarding, routing rules, NAT-less routing, wired or wireless WAN-to-LAN IP passthrough, route management, per-interface routing, content filtering, IP filtering, website filtering, per-client Web filtering, local DHCP server, DHCP client, DHCP relay, DNS, DNS proxy, Split DNS; ALGs: PPTP, SIP, TFTP, FTP, IRC; MAC address filtering, Dynamic DNS, LAN/WAN affinity, VLAN 802.1Q (coming Q4), STP, enterprise routing protocols: BGP/OSPF/RIP, multicast proxy support, IP setting overrides, IPv6 support option;

Management:
web-based GUI (local management), optional RADIUS or TACACS+ username/password; remote WAN web-based management w/ access control (HTTP, HTTPS); SNMP v1, v2c, & v3; CLI over SSH, SSH to serial, SSH to telnet; API; one-button firmware upgrade; modem configuration, update, and management; modem data usage w/ alerts, per-client data usage; custom AT scripting to modems; SMS;
TR-069;
Option: Enterprise Cloud Network Management System (NMS): cloud-enabled management and application platform (subscription-based);

VPN:
IPsec – Tunnel, NAT-T, and transport modes; connect to E-Lins, Cradlepoint, Cisco/Linksys, CheckPoint, Watchguard, Juniper, SonicWall, Adtran and others; Hash (MD5, SHA128, SHA256, SHA384, SHA512), Cipher (AES, 3DES, DES) , IPSec over L2TP support;
GRE tunneling;
PPTP support;
L2TP, L2TP over IPSec support;
VPN pass-through;
OpenVPN support (option);
DMVPN (option);
Certificate support (option);
multiple networks supported in a single tunnel, site-to-site dynamic VPN with NHRP; VTI Tunnel support;

SMS, SMSControl and Alarm:
Receive and Send the SMS;
WAN Cell APN configuration via SMS;
SMS/Voice Control and Alarm. SMS or Call to control router to be online, offline, reboot, signal and status monitor; SMS is default feature, Voice is option;
SMS text sending and receiving;

>>| Specifications:

Main:

Hardware:
CPU: 880Mhz dual core;
RAM: 1Gb DDR3, option for up to 4Gb DDR3;
Flash: 128Mb, option for up to 8Gbit;

WAN:
Integrated Category 5G modem (with 4G and 3G failover);
One 10/100/1000Mbps Gigabit Ethernet ports – cable/DSL/T1/satellite/Metro Ethernet;
WiFi as WAN, Metro WiFi; MIMO “N” 2.4 GHz; 802.11 a/b/g/n/AC;

LAN:
Dual-band, dual-concurrent WiFi; 802.11 a/b/g/n/AC;
2 LAN/WAN switchable 10/100/1000Mbps Gigabit Ethernet ports;
2 LAN/WAN switchable 10/100Mbps Fast Ethernet ports with POE;

Ports:
Power (POE, 2 Pin Terminal Block for wire connection)
5 Ethernet LAN/WAN
2 cellular antenna connectors (SMA)
1 GPS antenna connector (SMA)
4-6 WiFi antenna connectors (SMA)
Serial connector *1 – RS232 / RS485 (Terminal Socket)
4 Digital I/O ports (Terminal Socket)
USB3.0 port + USB2.0 port
Console Port (Terminal Socket + RJ45 type)

Power:
Dual Power Inputs / Power Failover;
DC input steady state voltage range: 5-40 VDC / 5-60VDC option, (requires inline fuse for vehicle installations);
For 9–24 VDC installations, use a 3 A fuse;
For > 24 VDC installations, use a 2.5 A fuse;
Reverse polarity and transient voltage protection per ISO 7637-2
Ignition sensing (automatic ON and time-delay OFF);
Power consumption:
Idle: typical=100mA@12VDC; Maximum=500mA@12VDC;
Tx/Rx: typical=300mA@12VDC; Maximum=800mA@12VDC;
12VDC 2A adapter recommended

LEDs:
SYS, ERR, VPN, WiFi, USB, WAN, LAN*4, SIM1 Online, SIM2 Online, Signal1, Signal2, Signal3

UIM/SIM Card Slot:
Support 1.8V/3V UIM/SIM cards, two sim card slots

Others:
Reset button, console port

Size:
PCBA: 128mm x 108mm x 29mm
With case: 132mm x 112mm x 45mm

Weight:
About 410g (not including the antenna)
About 550g (including the antenna)
About 750g (including all accessories, without package)

Temperature:
All models: −35 °C to 75 °C ambient air operating;
All models: −40 °C to 85 °C storage;

Humidity (non-condensing):
5% to 95% operating
5% to 95% storage

Case:
Aluminum alloy; Black color; Customization is available

Cellular:

CompatibleMobileNetworks:
5G (SA/NSA)
4G LTE (FDD/TDD)
UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+)

Cellular Frequency:
5G:
Band 78 – 3500Mhz
Band 41 – 2500Mhz
Band 257 – 26Ghz
Band 261 – 28Ghz
And other more 5G bands…

4G FDD LTE:
Band 1 – 2100Mhz
Band 2 – 1900Mhz
Band 3 –1800Mhz
Band 4 – AWS(1700/2100Mhz)
Band 5 – 850Mhz
Band 7 – 2600MHz
Band 8 – 900Mhz
Band 9 – 1700Mhz
Band 12 – 700Mhz
Band 13 – 700Mhz
Band 14 – 700Mhz
Band 17 – 700Mhz
Band 18 – 850Mhz
Band 19 – 800Mhz
Band 20 – 800Mhz
Band 21 – 1500Mhz
Band 25 – 1900Mhz G Block
Band 26 – 850Mhz
Band 28 – 700Mhz
Band 29 – 700Mhz (SDL)
Band 30 – 2300Mhz
Band 31 – 450Mhz
Band 32 – 1500Mhz (SDL)
Band 66 – 1700Mhz
Band 72 – 450Mhz
And other more FDD bands…

4GTDD LTE (TD-LTE):
Band 48 – 3600Mhz (CBRS)
Band 46 – 5200Mhz
Band 43 – 3700Mhz
Band 42 – 3500Mhz (CBRS)
Band 41 – 2500/2600Mhz
Band 40 – 2300Mhz
Band 39 – 1900Mhz
Band 38 – 2600Mhz
And other more TDD bands…

UMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+ (WCDMA/FDD):
2100MHz(B1)/1900MHz (B2)/1800MHz (B3)/ 1700MHz /AWS (B4)/850MHz (B5)/900MHz (B8)/800MHz (B6)/1800MHz (B9)/850MHz (B19)

Notes: There are many different band and frequencies. Please confirm the detailed band and frequency with your carriers before order.

Bandwidth:
5G: 10Gbps (not confirmed, depends on the radio)

4G LTE (CAT1/3/4/6/9/11/12/18)
FDD LTE:
downlink 100Mbps / 150Mbps / 300Mbps / 600Mbps / 1200Mbps;
uplink 50Mbps / 150Mbps / 300Mbps / 600Mbps;
TDD LTE: 150Mbps downlink, 50Mbps uplink;

DC-HSPA+:Downlink 42Mbps, Uplink 5.76Mbps;
HSPA+(H):Downlink 21Mbps, Uplink 5.76Mbps;
HSPA+(L):Downlink 14.4Mbps, Uplink 5.76Mbps;
HSUPA:Downlink 7.2Mbps, Uplink 5.76Mbps;
HSDPA:Downlink 7.2 Mbps, Uplink 384k bps;
WCDMA/UMTS:Downlink/Uplink 384 kbps;

Notes: the bandwidth is peak value. Real value depends on carrier network support.

Network and Band Lock Feature (Option):
Default is unlocked, can use this feature to lock

WiFi (WLAN):

Wi-Fi (Option):
802.11a/b/g/n/AC;
Can be used as AP and client;

Frequency Range:
2.4Ghz: 2.412 ~ 2.472Ghz
5Ghz Band 1: 5150~5250MHz
5Ghz Band 4: 5475~5850MHz

Speed:
802.11n in 300Mbps;
802.11AC options in 600Mbps, 867Mbps, 1300Mbps, 1730Mbps, 2033Mbps, or even higher (Depends on WiFi module option);

Notes: default is 802.11a/b/g/n 2.4Ghz WiFi.
Option:
Dual-Band Dual-Concurrent or Tri-Band Tri-Concurrent
802.11 a/b/g/n/AC, Wave2, MU-MIMO;
Up to 128-250 connected devices (64 per channel – 2.4 GHz and 5 GHz);
High gain WiFi module option;

Others:

Warranty:
1 Year default. Option extends up to 5 years maximum;
Other warranty services can be customized;

Package Contents:
H900 Series Wireless 5G Router
Ethernet Cable
Power Adapter
Cellular Antenna, WiFi Antenna
Others depends on option features (GPS antenna, Serial Cable, etc.)

OEM / ODM Services:
Yes

Country of origin
China
