Model: BB1228
Max cutting size: 2600*1300*900mm
size of the knife: 2840*240*15mm
Slicing thickness: 0.2-3mm
Working stroke: 2000mm
Slicing speed: 10-30pcs/min
Longitudinal tilting guide angle: 6°
Angle of tool holder to longitudinal inclined guide: 4°
clamping method: Hydraulic
Main motor: 90KW (DC)
Lifting motor: 5.5KW servo motor
Hydraulic motor: 5.5kw
Blower motor: 0.55kw*2sets
Conveyor belt: 2.2kw
Blade holder and pressure bar separately motor: 1.5kw
Lubrication motor: 0.37kw
Working pressure: 0.15-0.4MPA
Overall dimensions: 7000*4210*2200mm

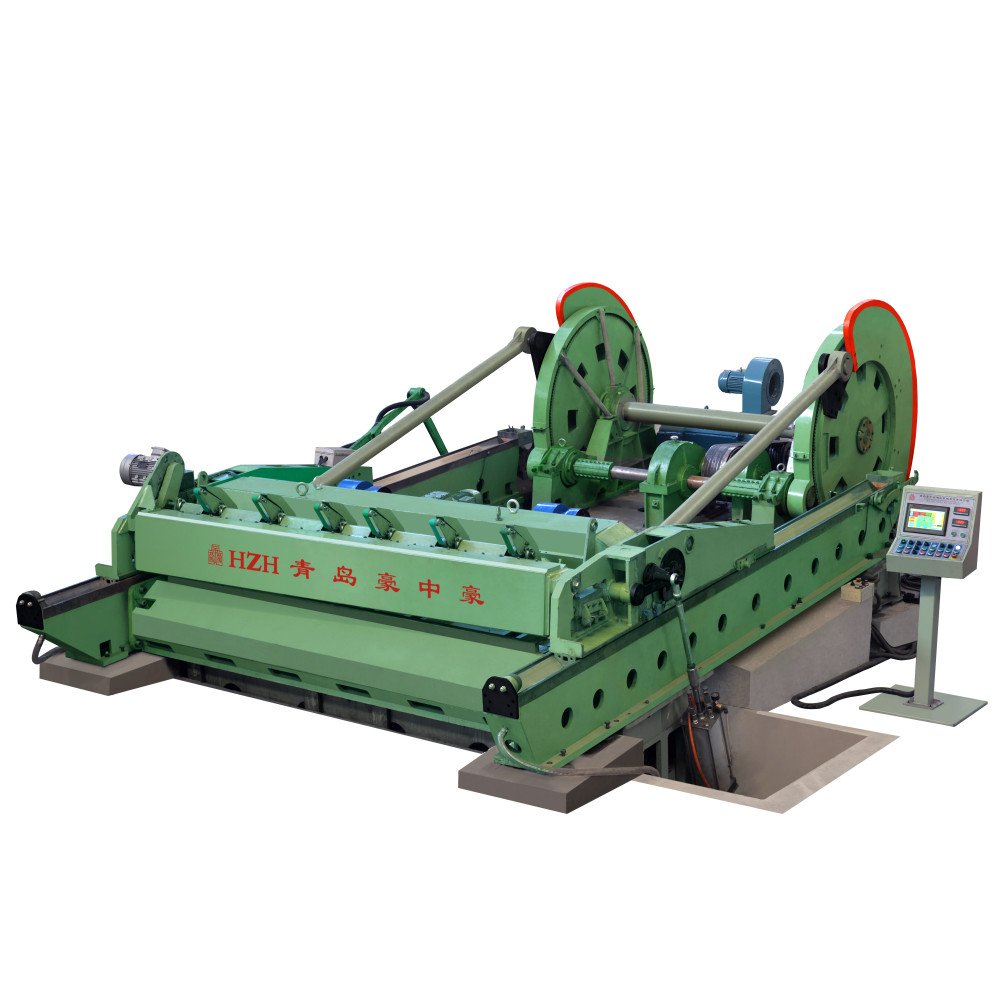

Veneer Slicer Main application:

BB1228 veneer slicer is mainly used for slicing recon wood board material with high production efficiency. The sliced veneer is of uniform thickness and beautiful texture. It is suitable for decorative veneer of plywood, particle board,block board furniture, construction, flooring and other industries.

Veneer Slicer Main features:

The slicer base rail is installed at an inclined angle, which makes planing labor-saving and can plan thick wood veneer.

Feeding device is controlled by servo motor, slicing veneer with high precision.

The wood clamping is simple and reliable, so that the thickness of the sliced veneer is even.

Knife holder and press ruler holder can be separated automatically, easy to adjust.

The advantages of a veneer slicer include:

1. High precision: Veneer slicers are designed to produce thin and precise slices of wood, allowing for greater control and accuracy in the veneer production process.

2. Efficiency: These machines can slice veneer at a high speed, resulting in increased productivity and reduced production time compared to manual slicing methods.

3. Consistency: Veneer slicers ensure uniform thickness throughout the veneer sheets, leading to consistent quality and appearance in the final products.

4. Versatility: They can handle various types of wood and produce veneer sheets of different sizes, catering to a wide range of applications and customer needs.

5. Cost-effective: By automating the slicing process, veneer slicers help reduce labor costs and minimize material waste, making them a cost-effective solution for veneer production.

6. Safety: Modern veneer slicers come equipped with safety features that protect operators from potential hazards, ensuring a safe working environment.

7. Customization: Some veneer slicers offer adjustable settings, allowing users to customize the thickness and other parameters according to specific requirements.

Overall, veneer slicers offer precision, efficiency, consistency, versatility, cost-effectiveness, safety, and customization options, making them an essential tool in the veneer industry.
