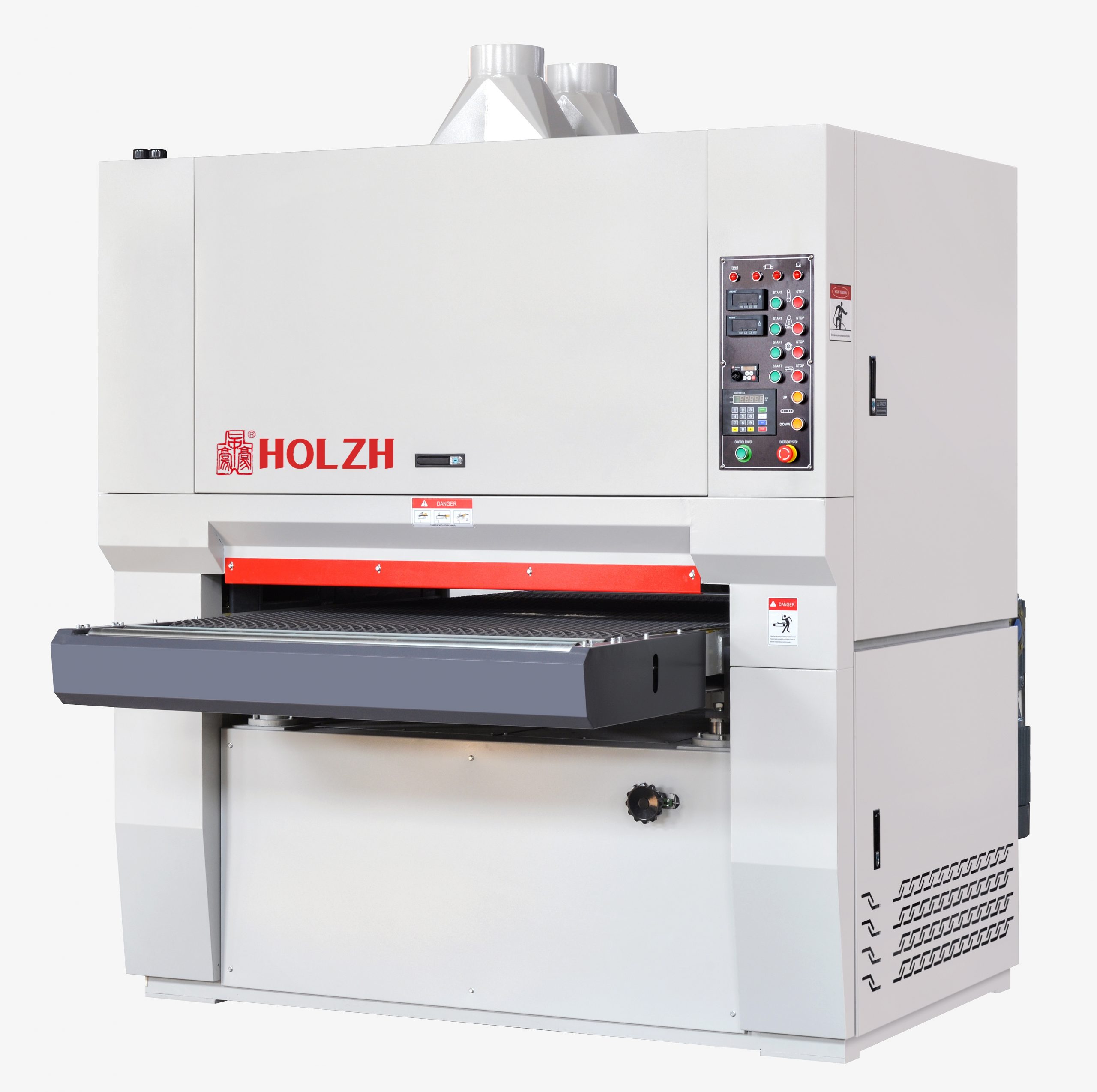

Wide Belt Sanding Machine BSG130R-RP

Description

Wide belt Sanding machine is suitable for calibrating and fine sanding laminate lumber, composite board, particle board, solid wood, panel furniture, bamboo floor, wood door and etc. Its indexed are advanced and it is in high precision, reasonable composition and convenient operation. It has the world advanced level.

This machine is one of the necessary equipment for integrated wood and furniture manufacturing.

Model: BSG1300R
Max working width: 1300mm
Min working length: 500mm
Working thickness: 2.5-120mm
Feeding speed: 6-30m/min
Total motor power: 49.62Kw
Motor for first unit: 45Kw
Motor for second unit
Motor for Third unit
Feeding motor: 4Kw
Lifting Motor: 0.25Kw
Motor for brush roller: 0.37Kw
Hardness of first roller: Steel roller
Hardness of second roller
Hardness of third roller
Diameter of First roller: 240mm
Diameter of second roller
Diameter of third roller
Sandpaper size(w*girth): 1330*2500mm
Working Air pressure: 0.5-0.8Mpa
Volume of dust collector: 5000m³/h
Overall dimensions: 1800*2680*2200mm
Weight: 2700Kg

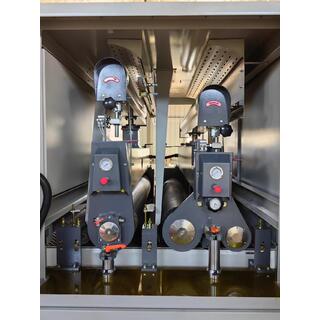

Model: BSG1300R-RP
Max working width: 1300mm
Min working length: 500mm
Working thickness: 2.5-120mm
Feeding speed: 6-30m/min
Total motor power: 63.74Kw
Motor for first unit: 37Kw
Motor for second unit: 22Kw
Motor for Third unit
Feeding motor: 4Kw
Lifting Motor: 0.25Kw
Motor for brush roller: 0.37Kw
Hardness of first roller: Steel roller
Hardness of second roller: 85sh
Hardness of third roller
Diameter of First roller: 240mm
Diameter of second roller: 210mm
Diameter of third roller
Sandpaper size(w*girth): 1330*2500mm
Working Air pressure: 0.5-0.8Mpa
Volume of dust collector: 9000m³/h
Overall dimensions: 2200*2680*2200mm
Weight: 3800Kg

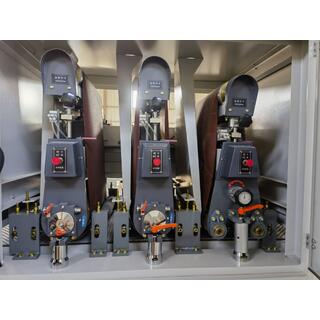

Model: BSG1300R-R-RP
Max working width: 1300mm
Min working length: 500mm
Working thickness: 2.5-120mm
Feeding speed: 6-30m/min
Total motor power: 95.24Kw
Motor for first unit: 37Kw
Motor for second unit: 30Kw
Motor for Third unit: 22Kw
Feeding motor: 4Kw
Lifting Motor: 0.37Kw
Motor for brush roller: 0.37Kw
Hardness of first roller: Steel roller
Hardness of second roller: 85sh
Hardness of third roller: 85sh
Diameter of First roller: 240mm
Diameter of second roller: 240mm
Diameter of third roller: 210mm
Sandpaper size(w*girth): 1330*2500mm
Working Air pressure: 0.5-0.8Mpa
Volume of dust collector: 13000m³/h
Overall dimensions: 2400*2680*2200mm
Weight: 5000Kg

Specifications

Model
BSG130R-RP
Country of origin
China
