Description

Model: F45-320EA
Dimensions of sliding table: 3200*430mm
Max sawing thickness: 90mm
Power of main saw spindle: 5.5kw
Rotary speed of main saw spindle: 4400/5600r/min
Diameter of main saw: 350mm
Diameter of main saw spindle: 30mm
Power of grooving saw: 0.75kw
Rotary speed of grooving saw: 8500r/min
Diameter of grooving saw: 120mm
Diameter of grooving saw spindle: 22mm
Tilting saw blade: 45°
Dimension: 3200*1100*840mmm
Weight: 820kg

Model: F45-380EA
Dimensions of sliding table: 3800*430mm
Max sawing thickness: 90mm
Power of main saw spindle: 5.5kw
Rotary speed of main saw spindle: 4400/5600r/min
Diameter of main saw: 350mm
Diameter of main saw spindle: 30mm
Power of grooving saw: 0.75kw
Rotary speed of grooving saw: 8500r/min
Diameter of grooving saw: 120mm
Diameter of grooving saw spindle: 22mm
Tilting saw blade: 45°
Dimension: 3800*1100*840mmm
Weight: 900kg

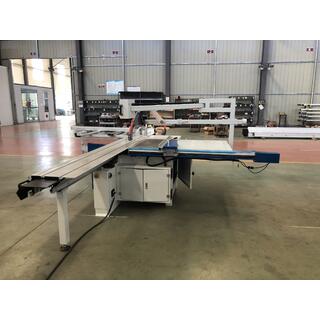

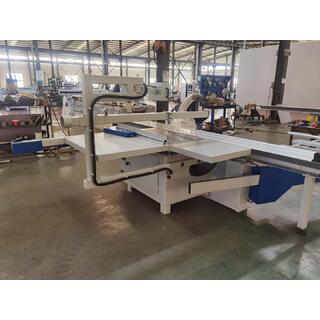

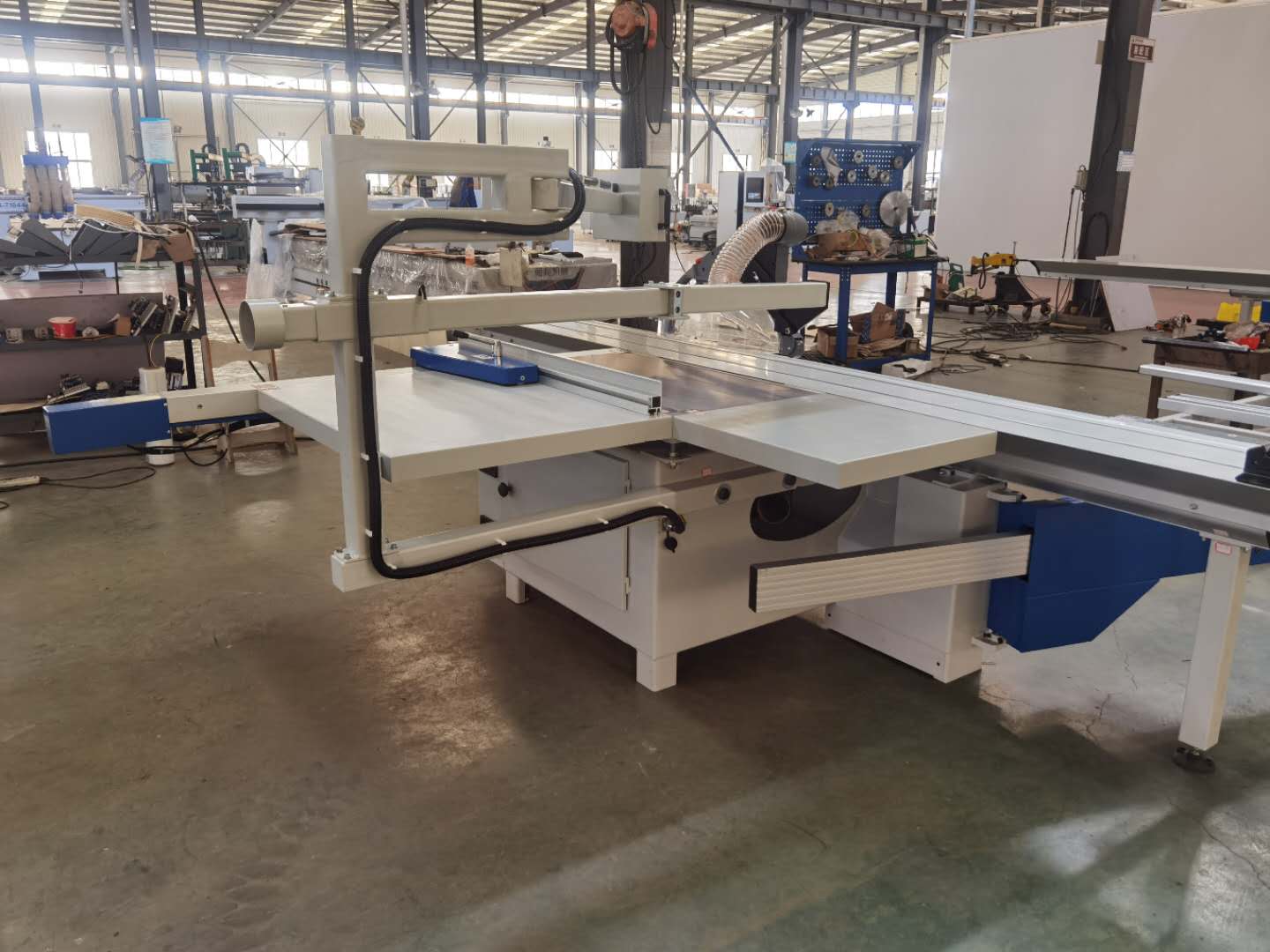

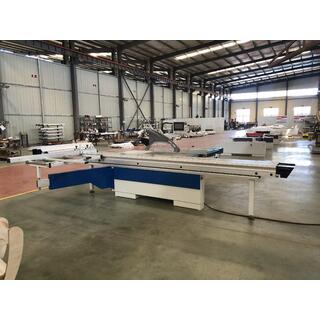

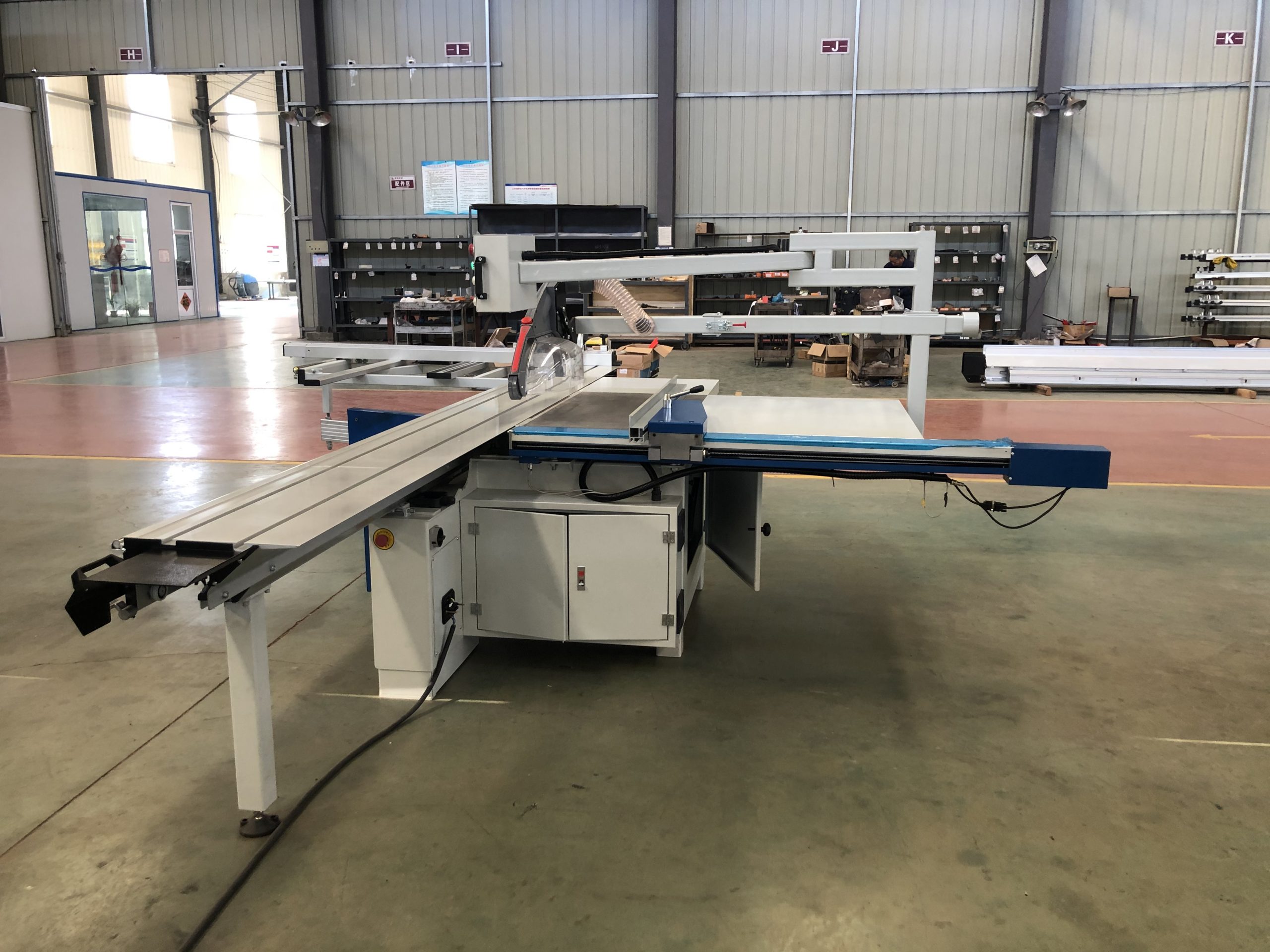

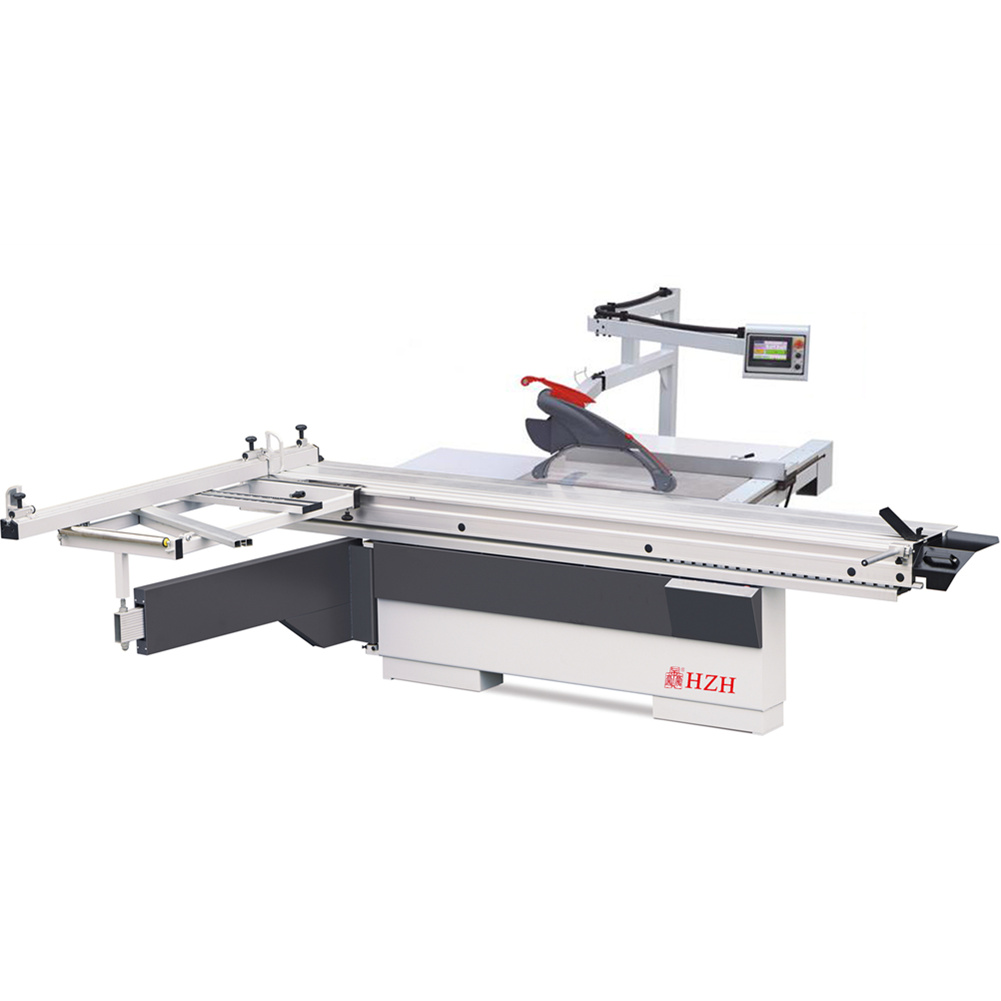

CNC panel saw machine is automatic big ruler and rip fence ruler, electrical lifting and tilting in PLC, no need manual lifting and tilting and more precision cutting with servo motor.

1. Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, MDF board, organic glass plates and solid wood and others with wood structure and similar hardness.

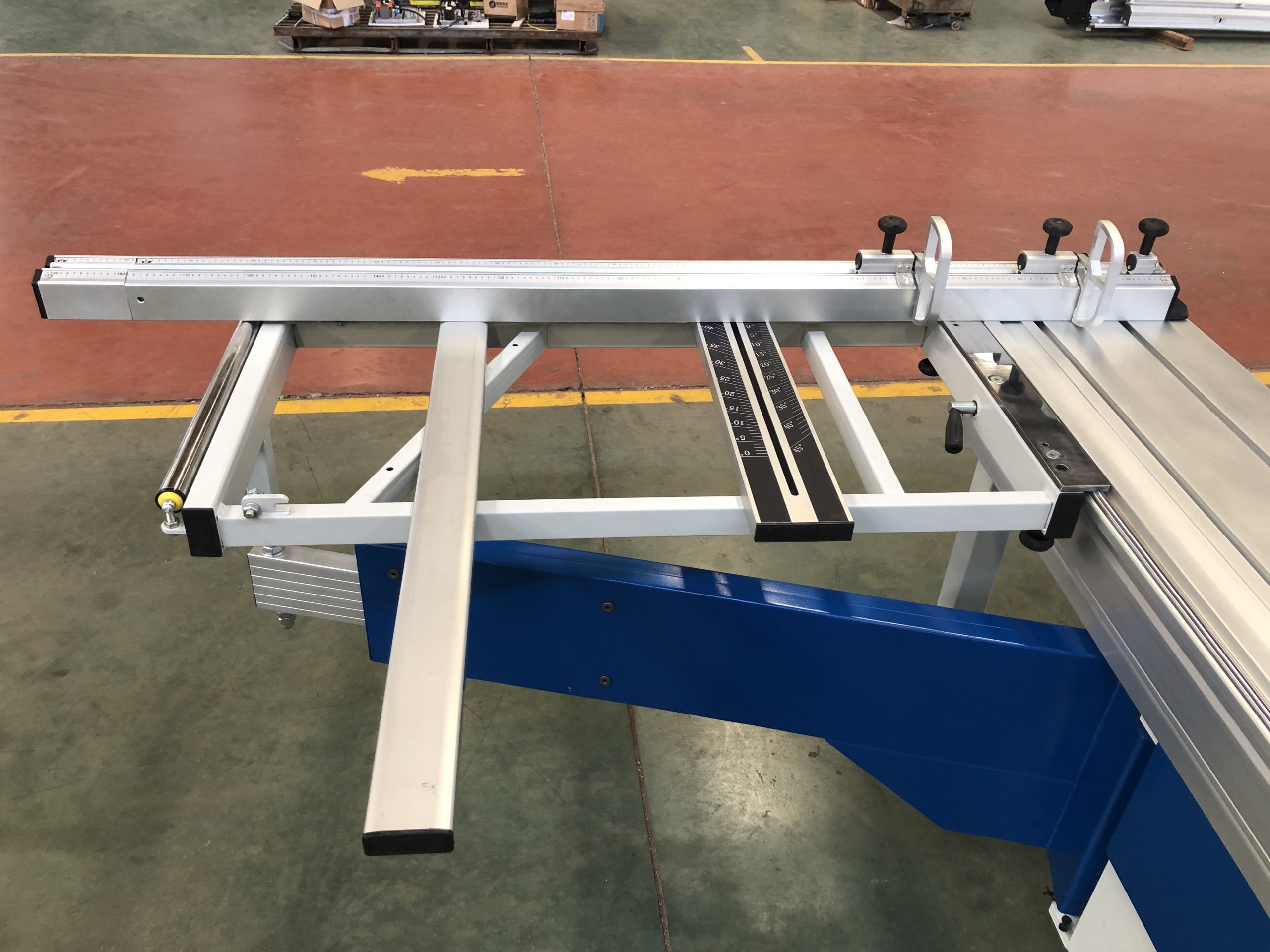

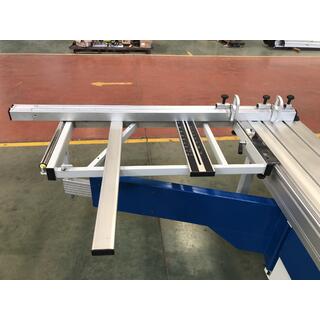

2. Round steel bar sliding table is with solid double T-slot and multi-point locking system makes it more convenient

3. Made of high-strength extruded aluminum alloy; movable table is high in strength and won’t bend. Aluminum alloy material for square tube of rotary arm

4. With oxidation treatment, movable table surface is beautiful and hardwearing

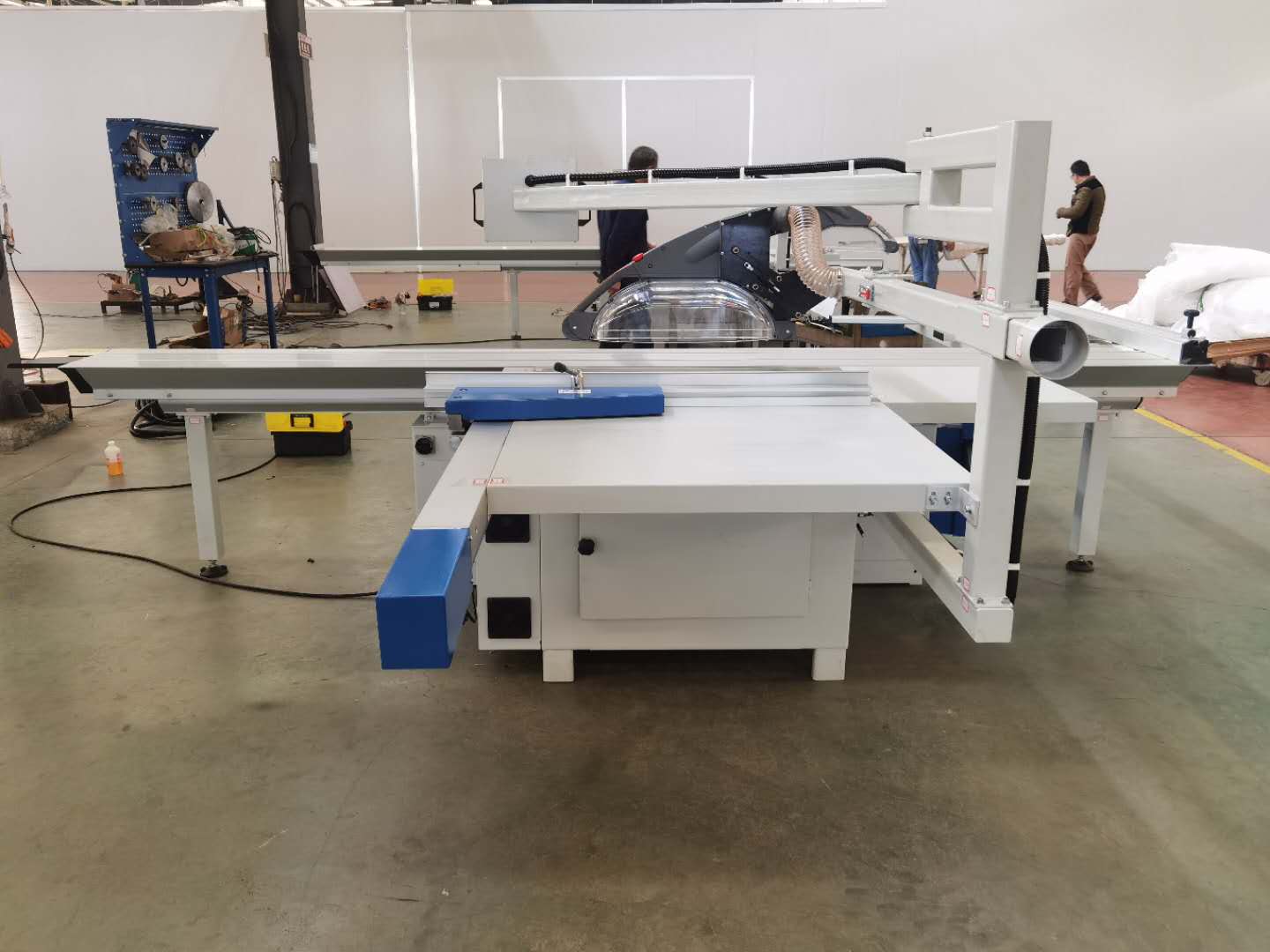

5. Saw blade is covered by big Dust Hood

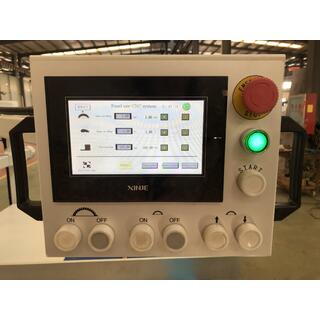

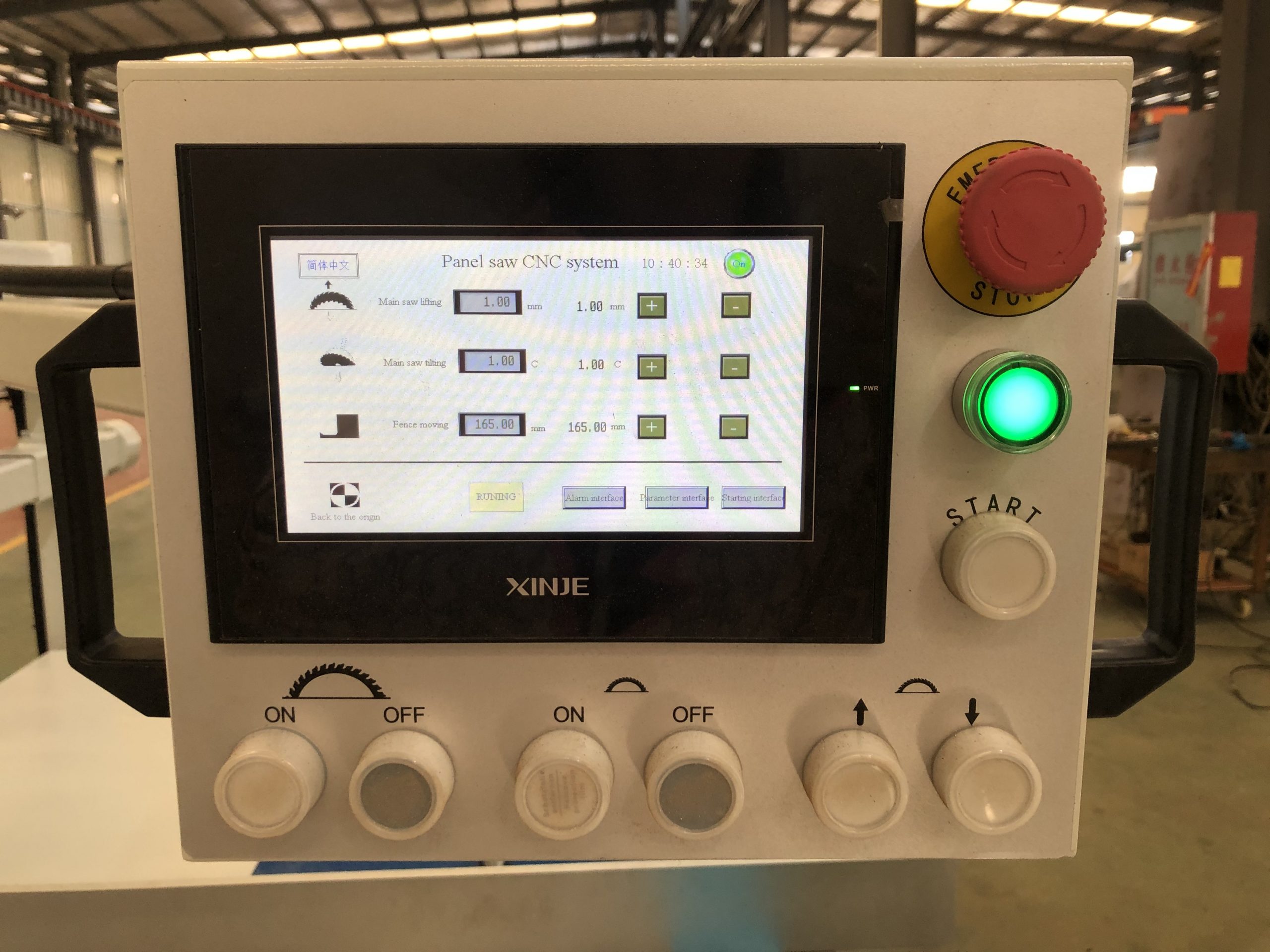

6. automatic control with touch screen for main saw blade up and down.

7. automatic control with touch screen for saw blade tilt.

8. automatic control with touch screen for rip fence

Specifications

Country of origin
China
