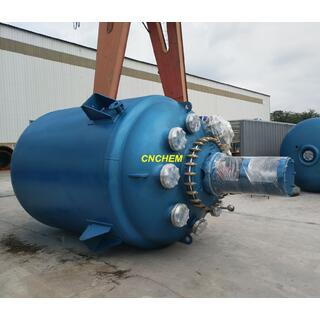

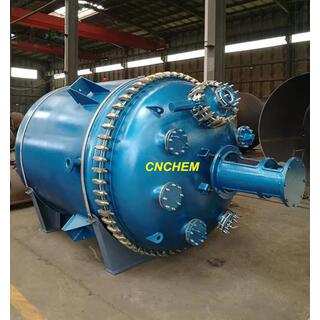

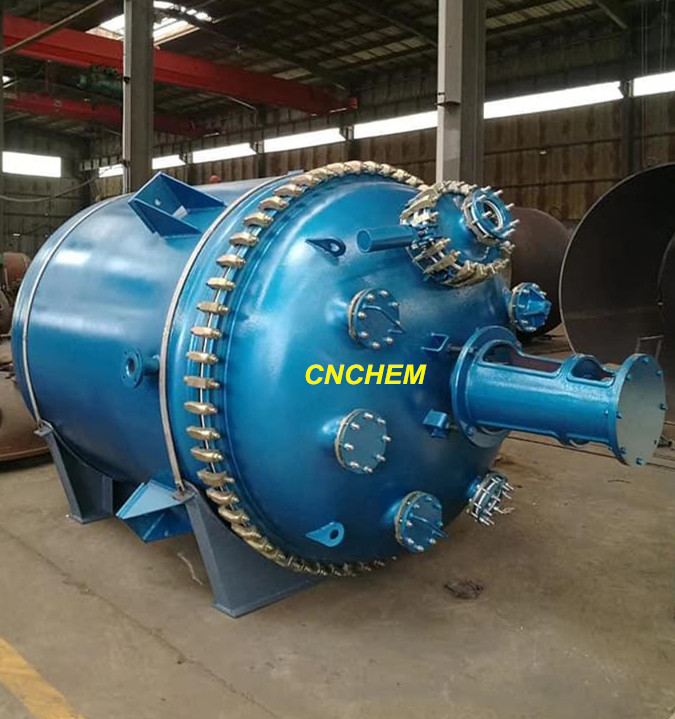

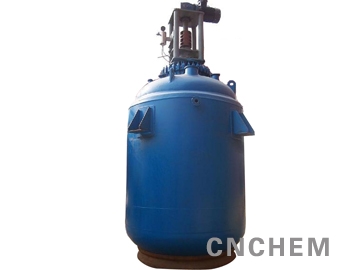

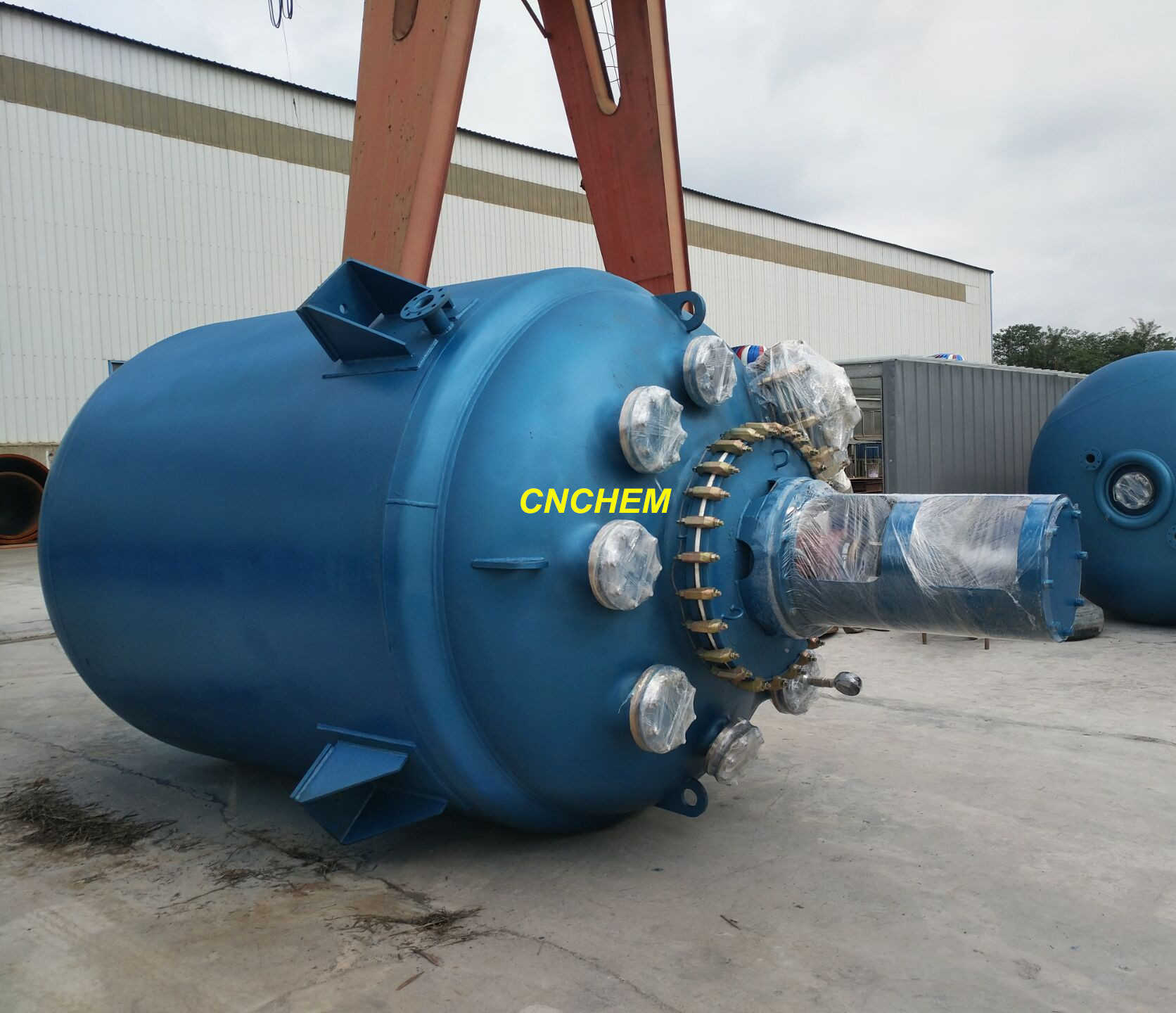

Glass Lined Reactor 50L-30000L

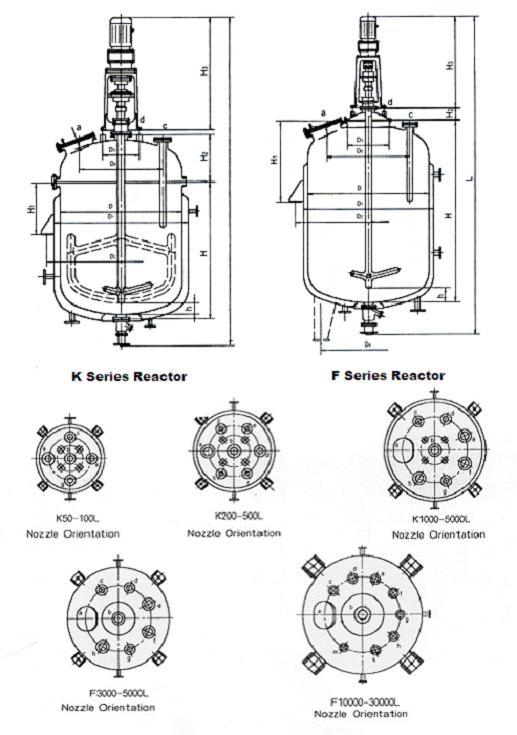

The Glass lined reactor, jacketed, 50L-30000L capacity, two pieces type (i.e. FK, open type) and one piece type ( i.e. FF, closed type), with good anti-corrosion performance widely to be used in the reaction, neutralization, and polymerization etc process:1. The detailed assembling of our Glass lined reactor:(1) Electric Motor: Explosion-proof, Ordinary type;(2) Reducer(i.e.gear box): Cycloidal-pin wheel type, Spiral bevel gear type, Helical gear type;(3) Seal type: Packing seal, Mechanical Seal (single type, double type);(4) Agitator: Frame type, Anchor type, Impeller type, Paddle type, combination type; (5) Thermometer Pocket: A type (Straight); B type (Slant), C type ( Slant with Wing);(6) Bottom discharge Valve: Glass lined: Upper extension type, Lower extension type; PTFE or PFA lined: Ball valve;2. The technical performance of our Glass lined reactor: (1)The working pressure: Inside the vessel: less than or equal to 1.0Mpa (for Packing seal: less than or equal to 0.2Mpa; for Single mechanical seal: less than or equal to 0.4Mpa, for Double mechanical seal: less than or equal to1.0Mpa); Inside the jacket: less than or equal to 0.6Mpa;(2) The working temperature: from -20 degree centigrade to 200 Celsius degree, the cooling shock: 110 Celsius degree, the thermal shock: 120 Celsius degree; (3) The Glass-lining thickness: 0.8-2.0mm;(4) The high Voltage-test to the Glass-lining: 20KV.(5) Nonstick: the smooth and clean glass-lining surface is nonstick to the materials.(6) Anti-corrosion performance: suitable for all kinds of organic or inorganic acids, organic solvents and weak alkaline etc.Note: we can make the Glass lined reactor as per your detailed requirement.
