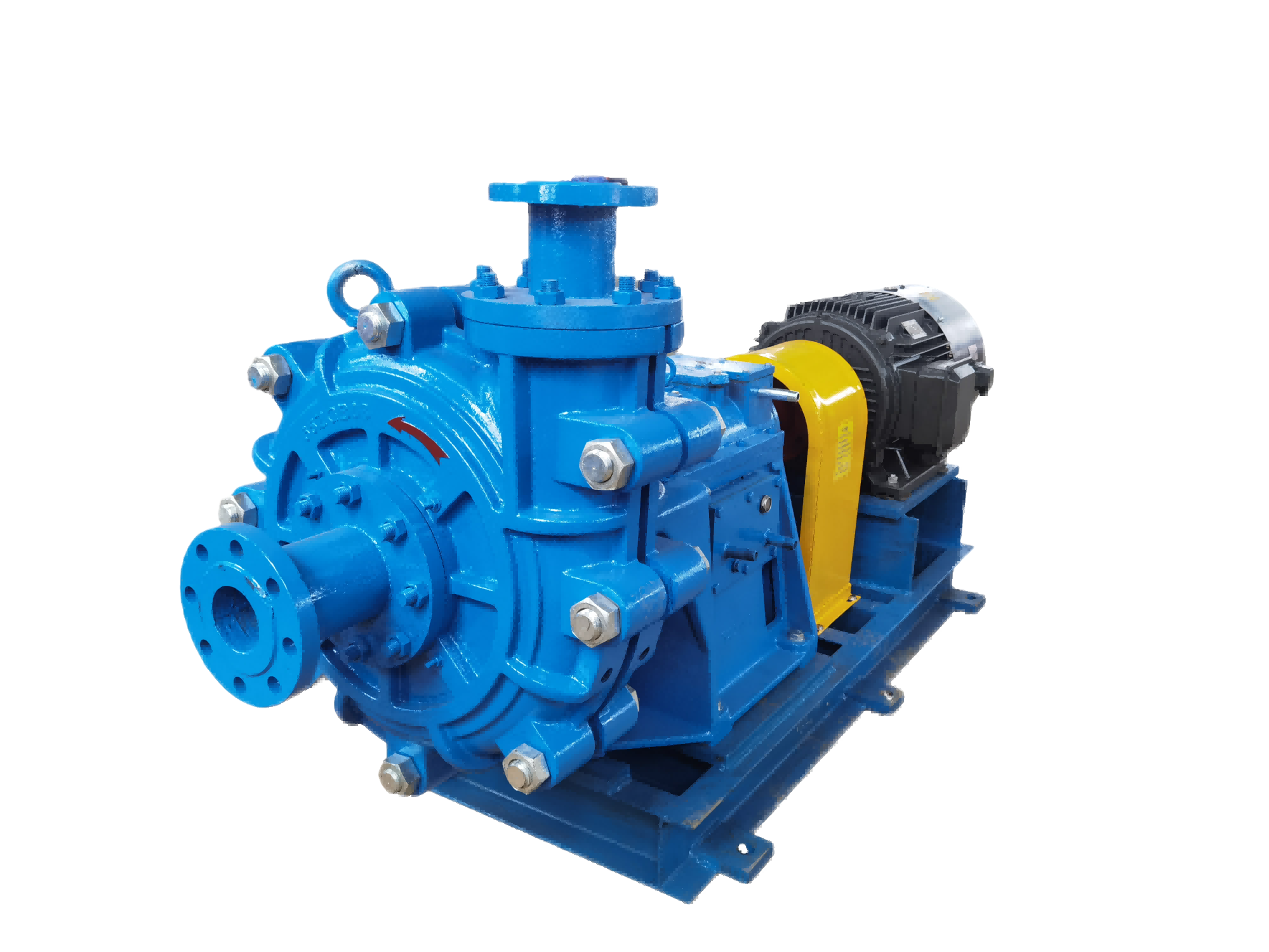

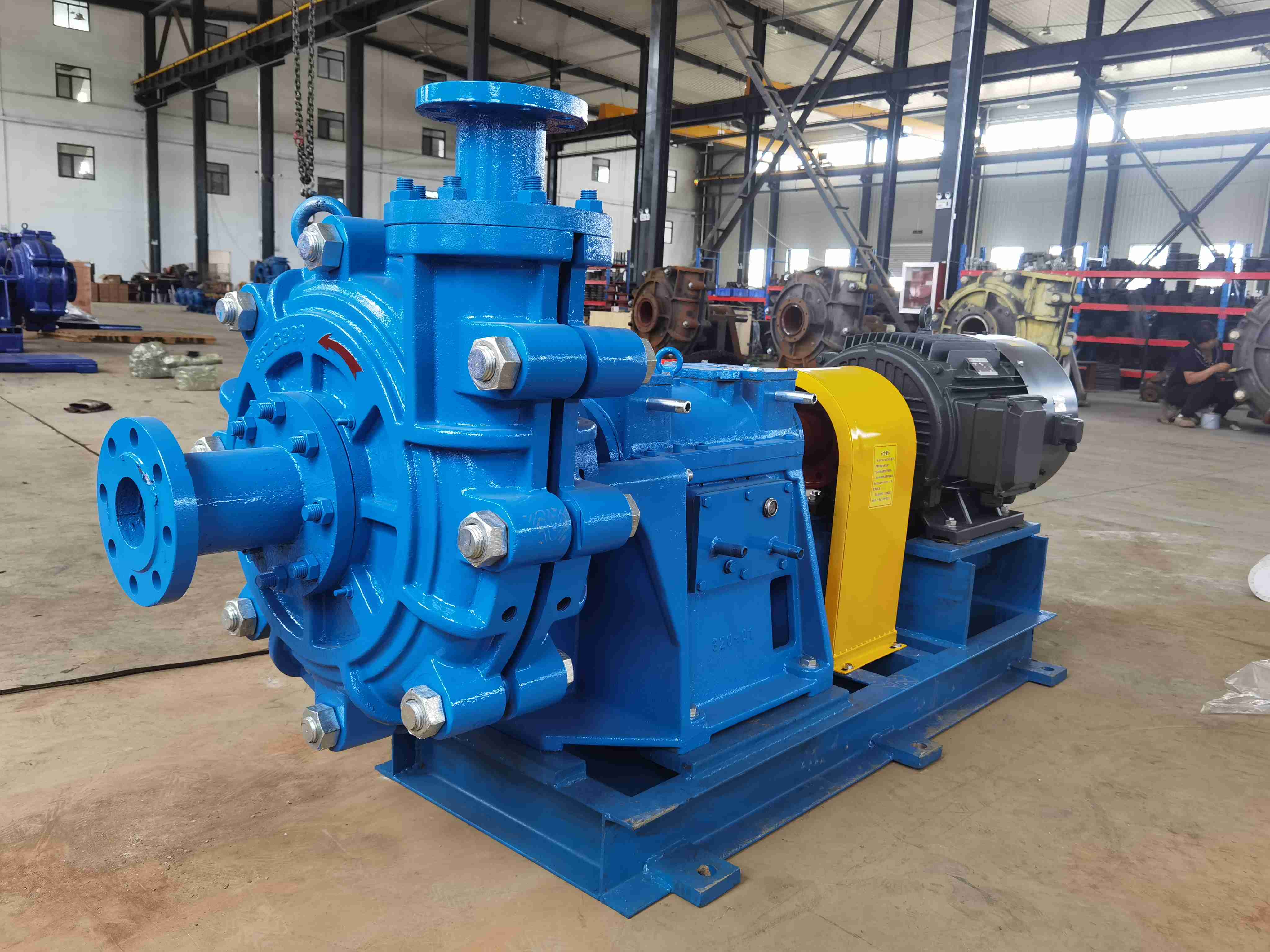

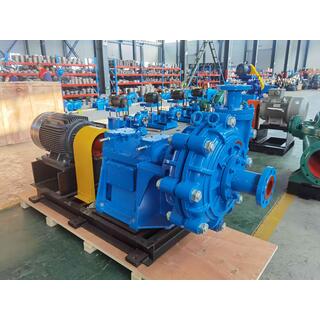

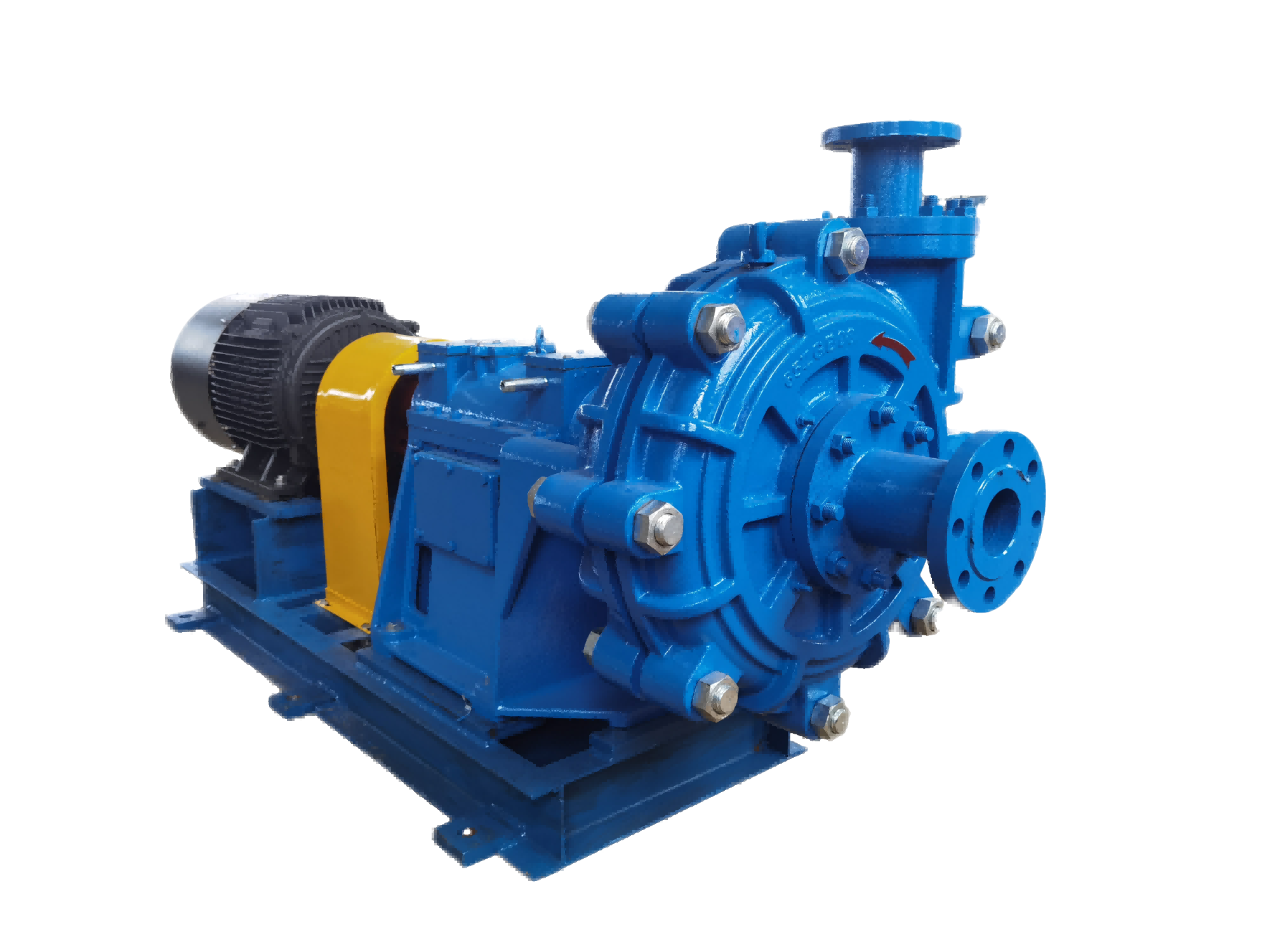

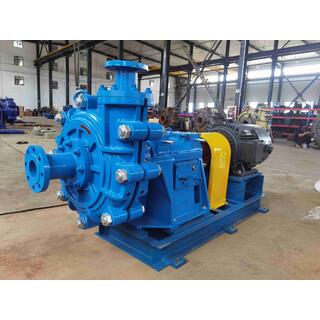

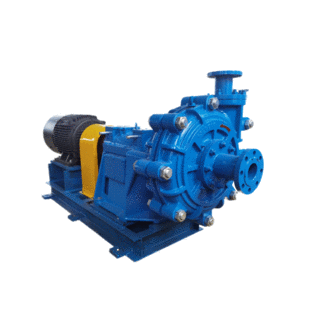

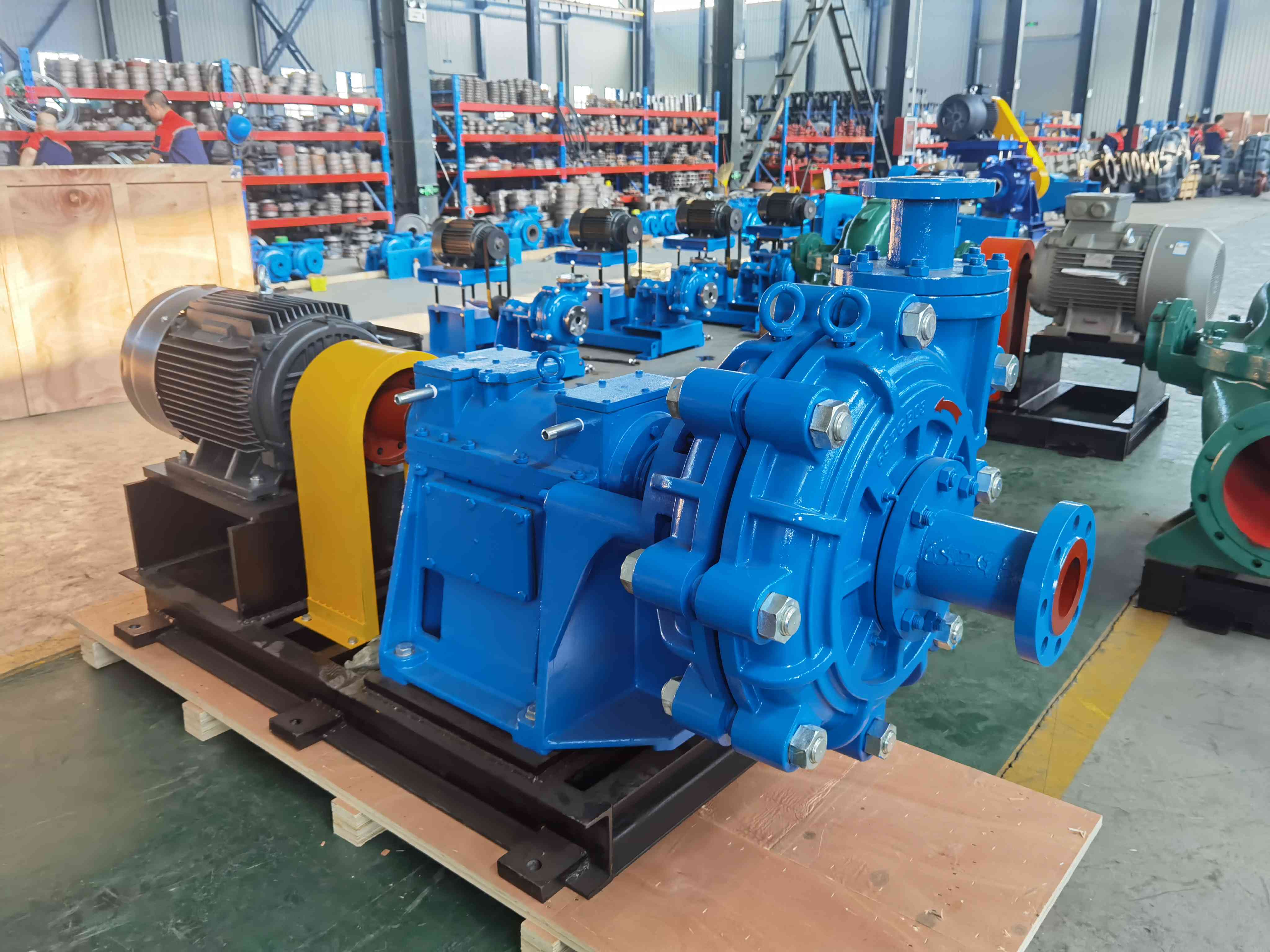

PZX series slurry pump

Description

Model: PZX
Caliber: 80 mm-400mm
Flow Range: 70-1800m3 / h
Head Range: 15m-98m
Max. Particle Size: 16~90 mm
Driven: Electric Motor / Diesel Engine
Shaft Seal: Mechanical / Gland Packing / Expeller
transmission method: DC CV ZVZ CRZ
Material Option: Metal: A05 Cr 27% High Chrome A49 Cr 28% High Chrome Ceramics CD4MoCu Stainless Steel 304,316,316L Duplex Stainless Steel

Features:

• Thickened structural design, suitable for conveying high concentration and heavy abrasive materials.
• Using modern CAD design methods, it has excellent hydraulic performance, high efficiency and low wear rate.
• Use thin oil lubrication and reasonably set up the lubrication and cooling systems to ensure that the bearings operate at low temperatures.

Applications:

• Mining and mineral processing.
• Extra heavy duty highly abrasive slurries.
• Hydrocyclone feed.
• Mine refuse and tailings.
• Industrial processing.
• Mill discharge.
• Sand and gravel.
• Medium duty abrasive slurries.
• In plant slurry transfer pumps.

Specifications

Model
PZX
Country of origin
China
