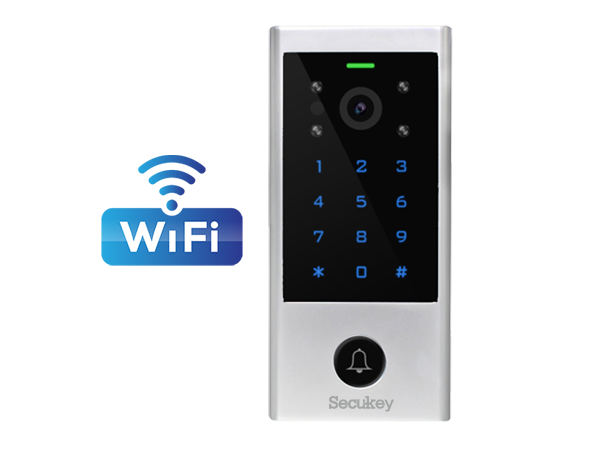

Vcontrol 1 WIFI Video Intercom Access

Available from Secukey Technology Co., Ltd.China

Description

Tuya WiFi Intercom
> Full duplex voice intercom
> 2.4G WiFi connection, Android and iOS available
> 2MP+wide angle camera and night vision
> Support TF card with unlimited capacity
> Support motion detection, playback, take picture/video, unlock remotely

Access Control
> Touch key with one relay, 1000 users (988 common+2 panic+10 visitor)
> EM card, Mifare card optional
> Wiegand 26~44, 56, 58 bits in put & output
> User data can be transferred
> 2 devices can be interlocked for 2 doors

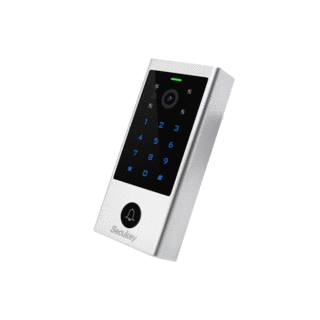

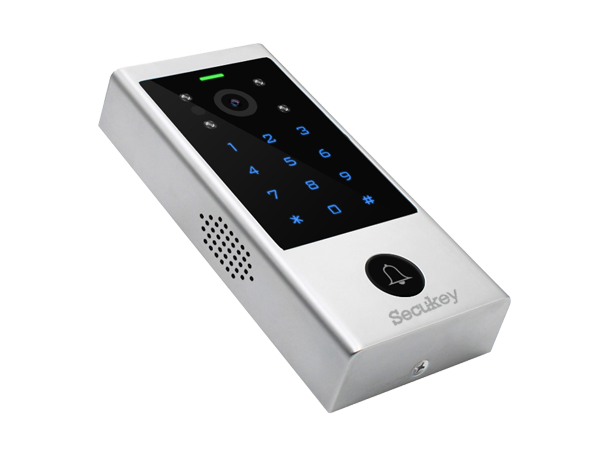

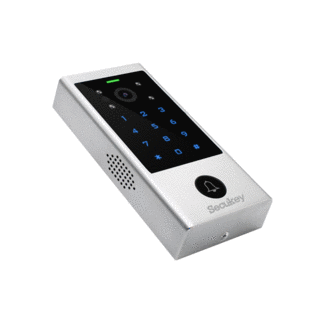

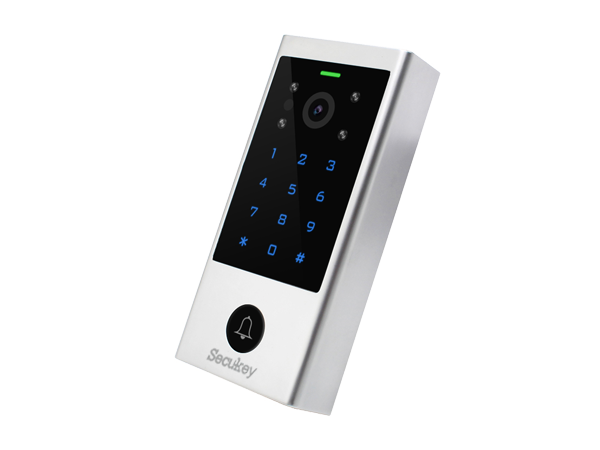

The device is Touch key Access Controller with WiFi-enabled Intercom. People can install the APP for intercom with their smart phone,

and program the access controller by touch key. It is compatible with both iOS (7.0 above) and Android (4.3 above).

Specifications:

Video Intercom:
Network: 2.4G WiFi connection
Pixel: 2.0Mpx (1080P)
Visual Angle: Horizontal   140° wide angle
Night Vision: IR-CUT (Colorful at daytime, black and white at   night)
Extended Memory: TF card with unlimited capacity
Intercom: Full duplex voice intercom
Other Functions: Motion detection; Playback; Take picture/video; Unlock remotely

Access Control:
User Capacity: 1000
Common User: 988
Visitor User: 10
Panic User: 2
PIN Length: 4~6 digits
Proximity Card Reader: EM or Mifare
Radio Technlogy: 125KHz/13.56MHz
Read Range: 2~6cm

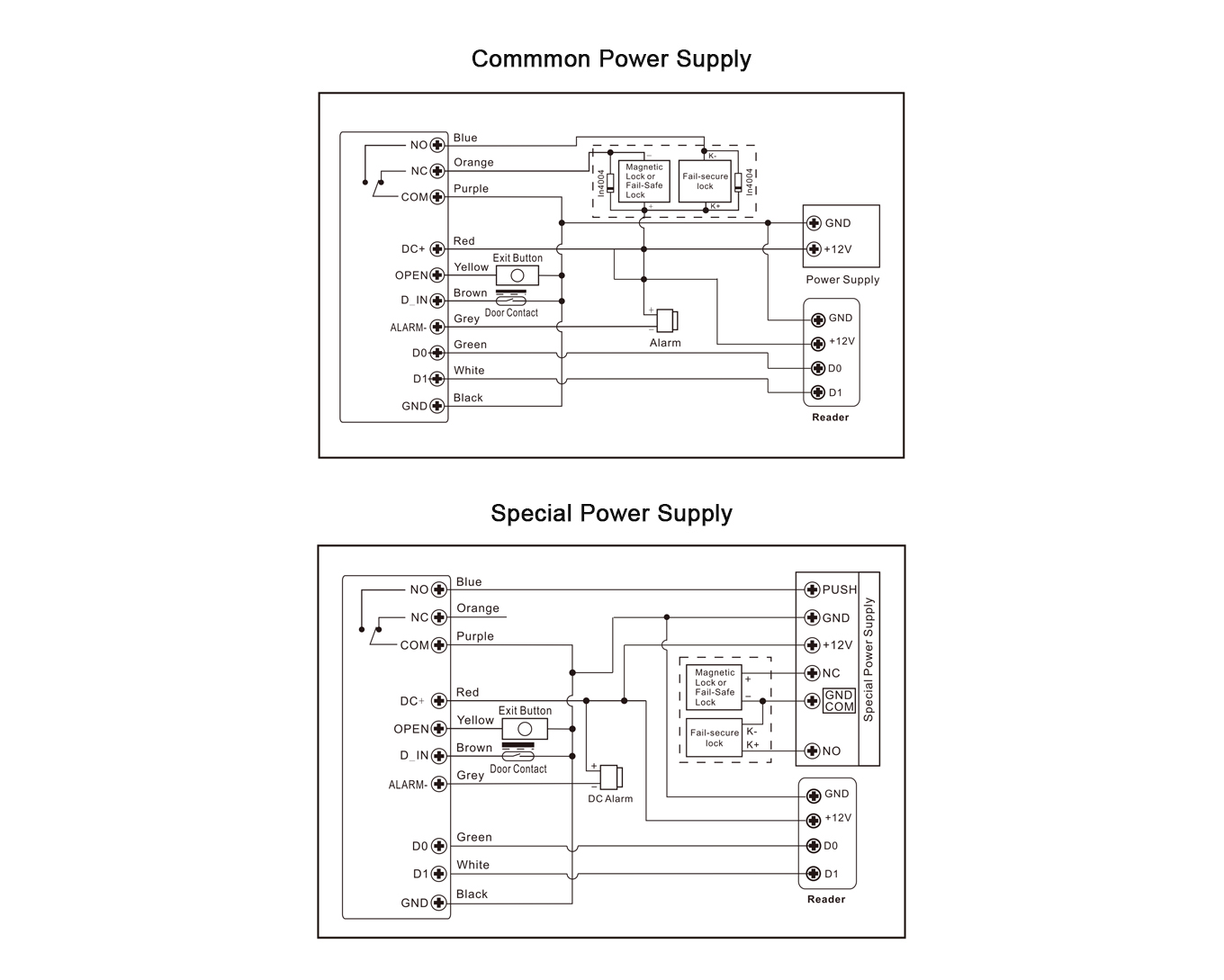

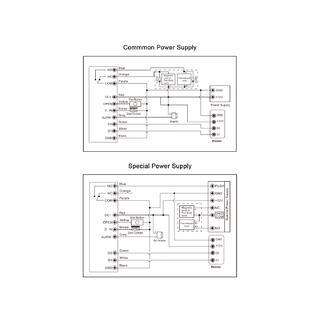

Wiring Connections: Relay output, exit button, alarm, door contact, Wiegand input/output
Relay: One (NO, NC, Common)
Adjustable Relay Output Time: 0~99 Seconds (5 seconds default)
Lock Output Load: 2 Amp Maximum
Wiegand Interface : EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits), Mifare card version:Wiegand 26~44 bits input & output (Factory default: Wiegand 34bits)
PIN Output: 4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)

Electric:
Operating Voltage: DC 12V
Idle Current: ≤ 150mA
Active Current: ≤ 250mA
Environment: Indoor
Operating Temperature: -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity: 0%RH ~ 86%RH
Physical: Zinc-Alloy
Color: Sliver & Black

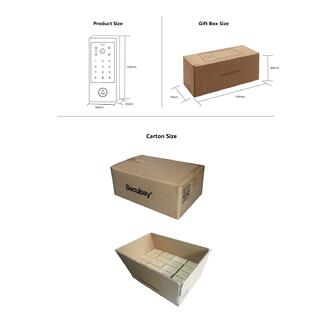

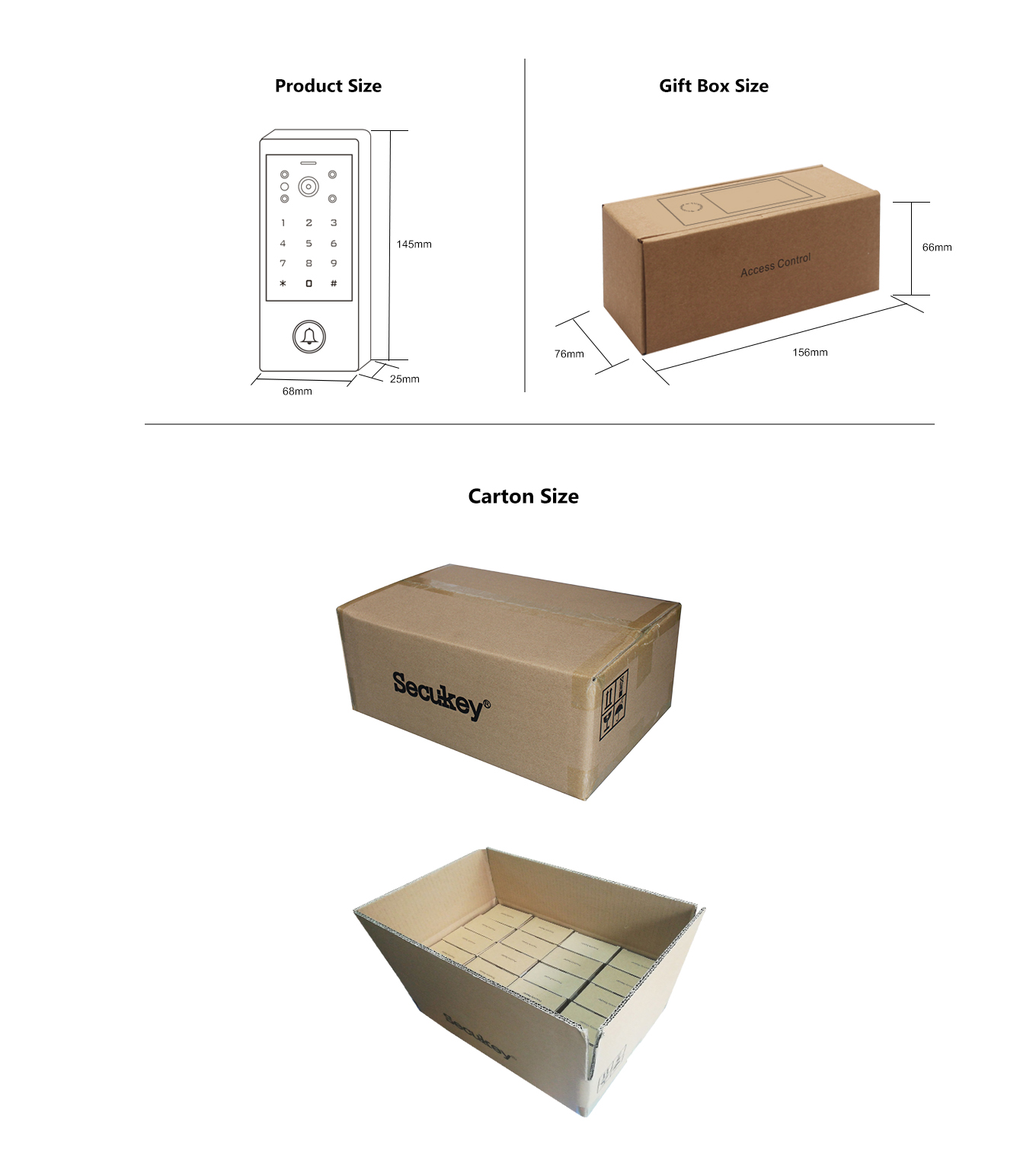

Dimensions: L145 x W68 x H25 (mm)
Unit Weight: 450g
Shipping Weight: 550g
