H1 Outdoor Touch Keypad & Reader

Available from Secukey Technology Co., Ltd.China

Description

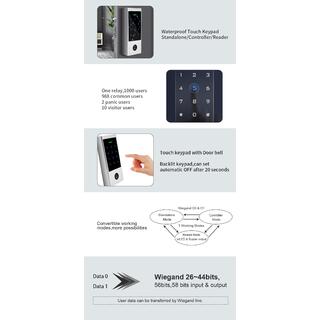

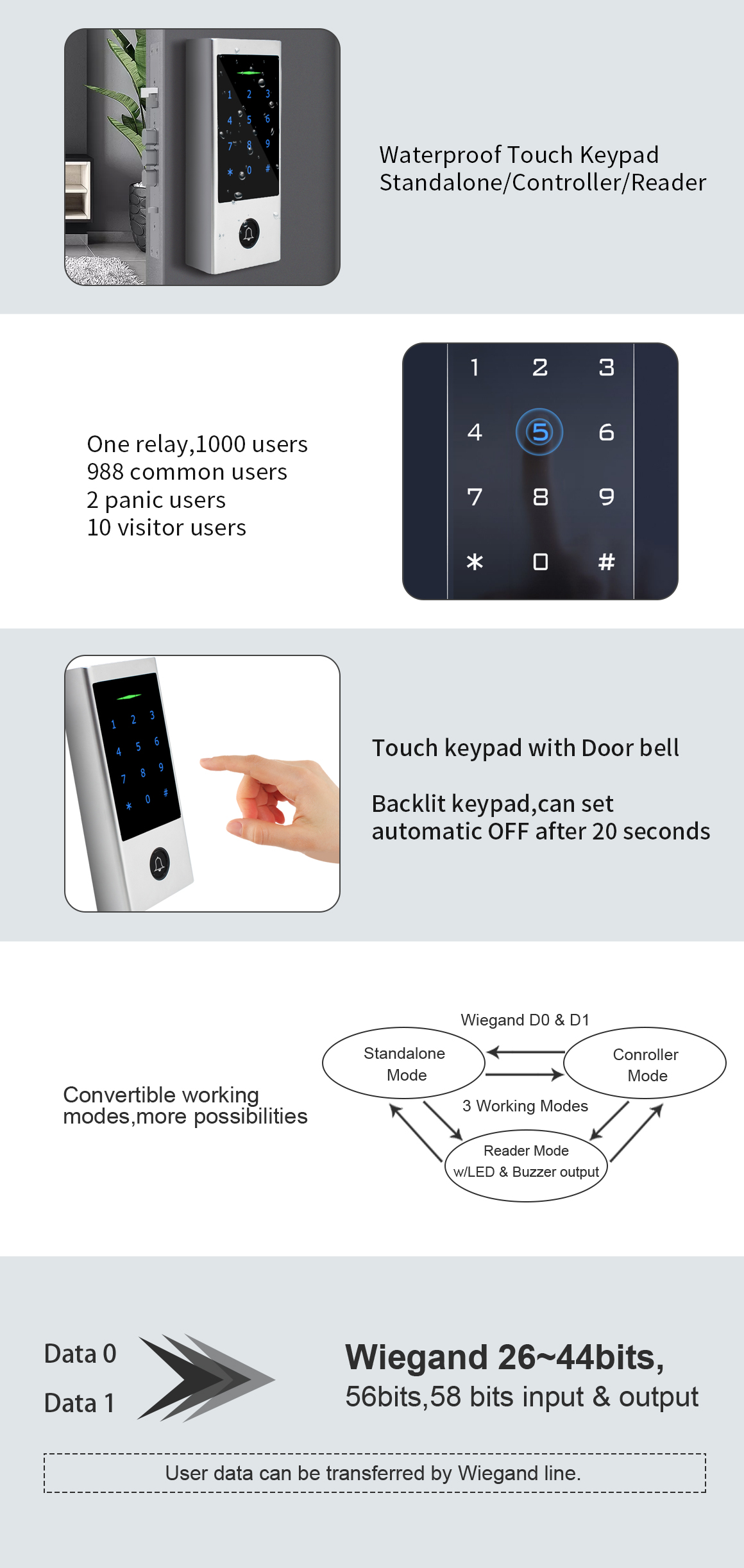

>Touch keypad with doorbell
>One relay,1000 users (988 common users + 2 panic users +10 visitor users)
>Card Type:125KHz EM Card/13.56Mhz Mifare Card
>Wiegand 26~44bits,56bits,58 bits input & output
>Can be used as Wiegand reader with LED & buzzer output
>User data can be transferred
>Integrated alarm & Buzzer output
>Built-in light dependent resistor(LDR) for anti tamper
>Backlit keypad,can set automatic OFF after 20 seconds
>2 devices can be interlocked for 2 doors
>Bluetooth function or Big user capacitive for optional

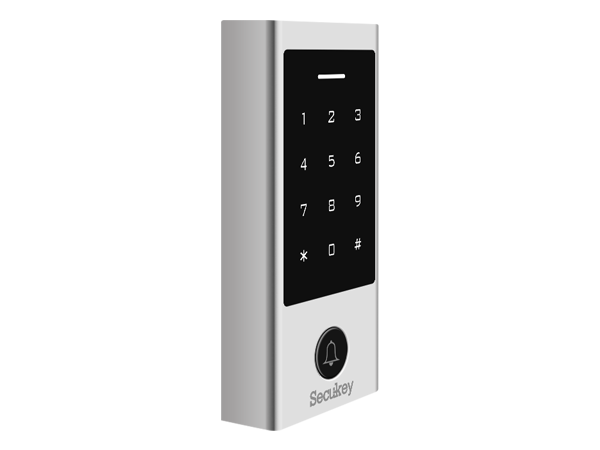

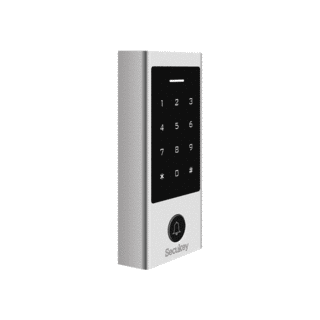

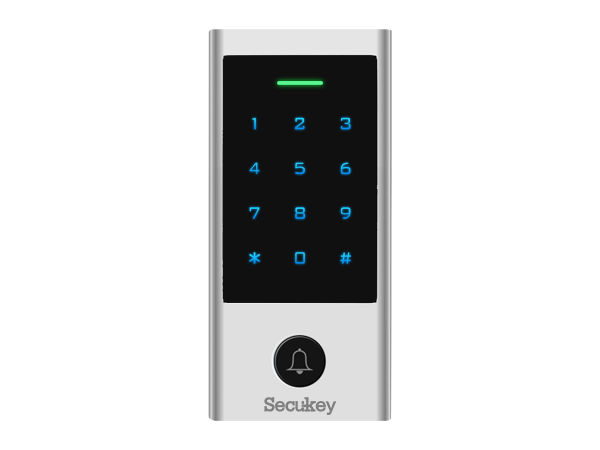

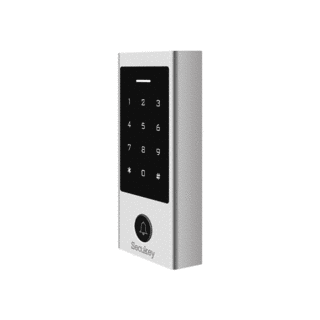

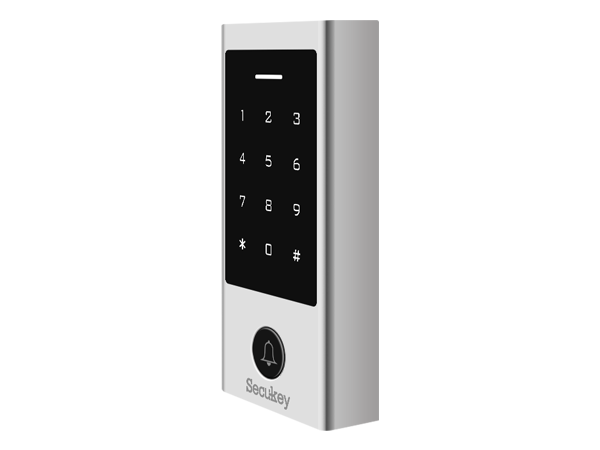

H1 is a waterproof standalone access controller with touch keypad and metal case.
IP66 waterproof makes it very suitbale for outdoor use.
It supports up to 1,000 Card/PIN users, with Wiegand 26~44,56,58

bits input & output, it can also work as a slave reader to connect to a 3rd party controller.

Specifications:

User Capacity: 1000
Common User: 988
Visitor User: 10
Panic User: 2
PIN Length: 4~6 digits
Operating Voltage: 12~28V AC/DC
Idle Current: ≤ 60mA
Active Current: ≤ 150mA
Proximity Card Reader: EM or Mifare
Radio Technlogy: 125KHz/13.56MHz
Read Range: 2~6cm

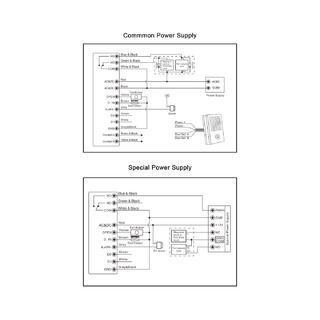

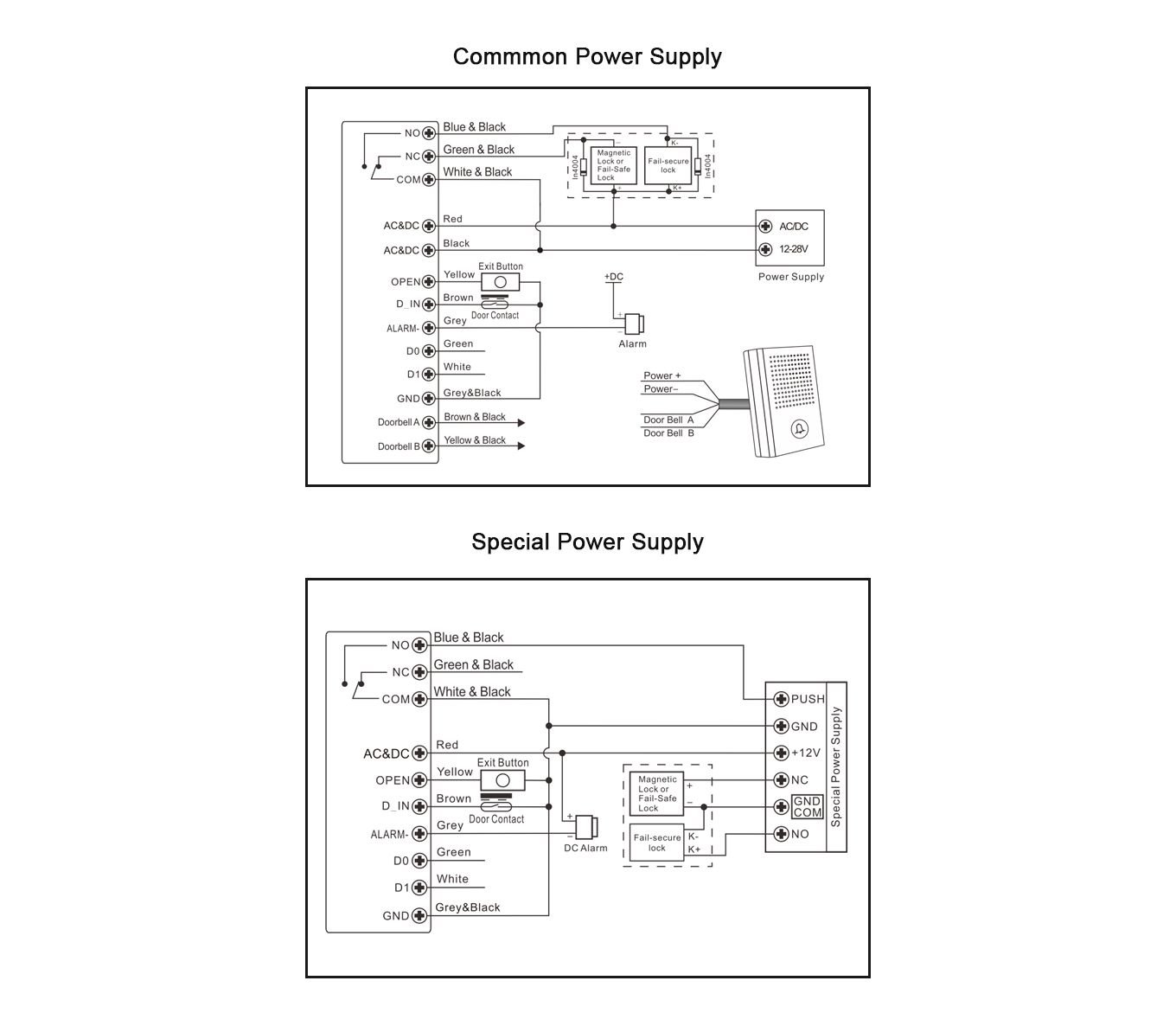

Wiring Connections: Relay output, exit button, alarm, door contact, Wiegand input/output
Relay: One (NO, NC, Common)
Adjustable Relay Output Time: 0~99 Seconds (5 seconds default)
Lock Output Load: 2 Amp Maximum
Wiegand Interface: EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits), Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output (Factory default: Wiegand 34bits)
PIN Output: 4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)
Environment: Meets IP66
Operating Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
Operating Humidity: 0%RH ~ 98%RH
Physical: Zinc-Alloy
Color: Sliver & Black

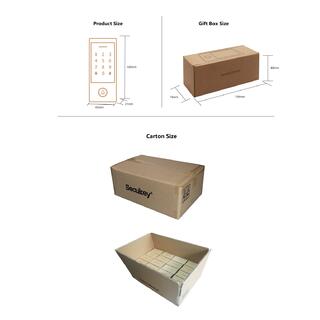

Dimensions: L145 x W68 x H25 (mm)
Unit Weight: 500g
Shipping Weight: 615g

Specifications

Brand
Secukey
Model
H1
Country of origin
China
