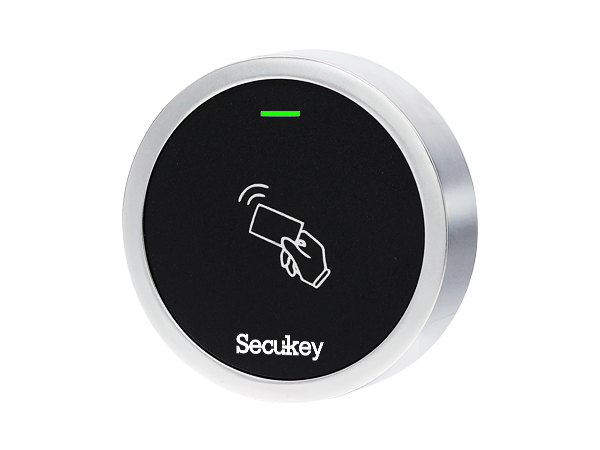

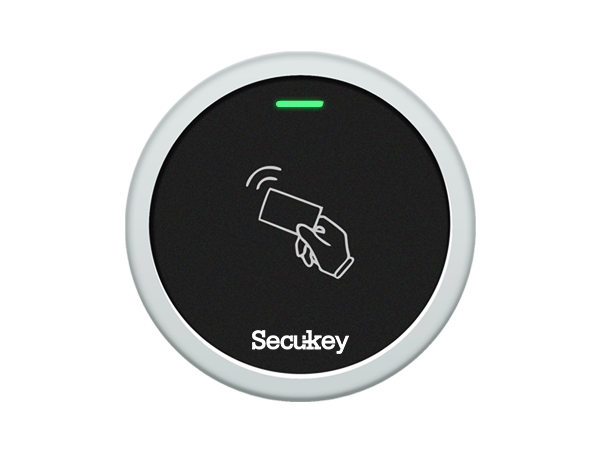

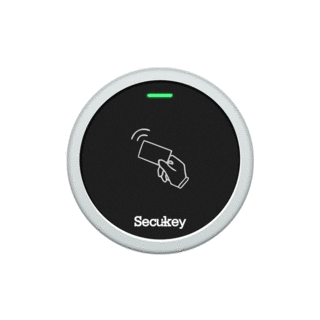

S7-EM Metal Standalone EM Reader

Available from Secukey Technology Co., Ltd.China

Description

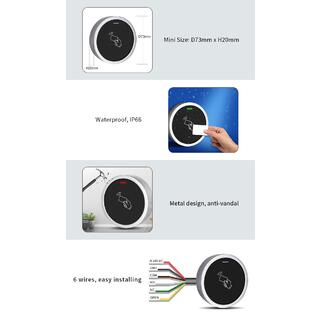

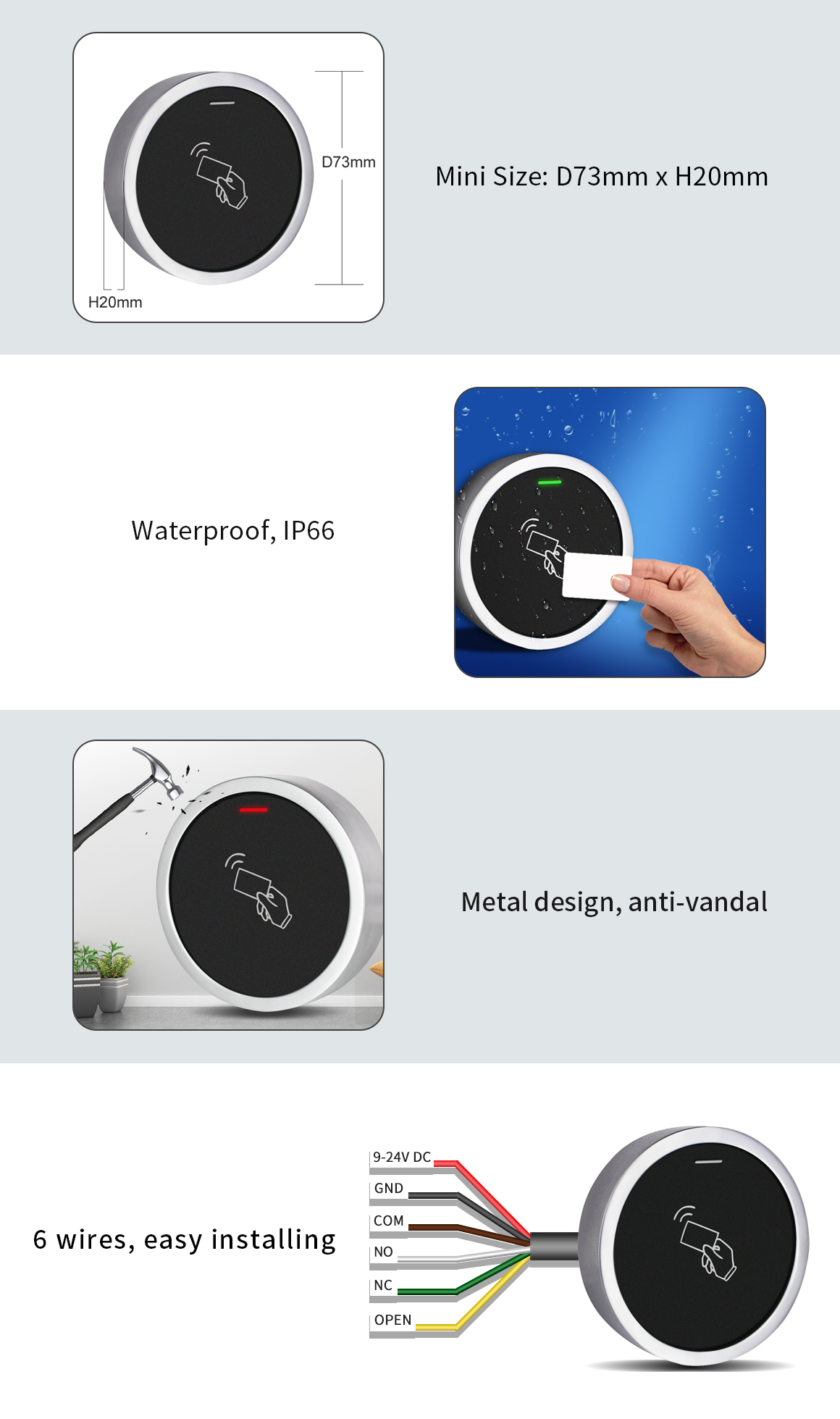

> Metal case, anti-vandal
> Waterproof, conforms to IP66
> One relay, 2000 users, standalone
> Card type: 125KHz EM card
> Working temperature: -40 oC ~ 60 oC (-40 oF ~ 140 oF)
> Pulse mode, toggle mode

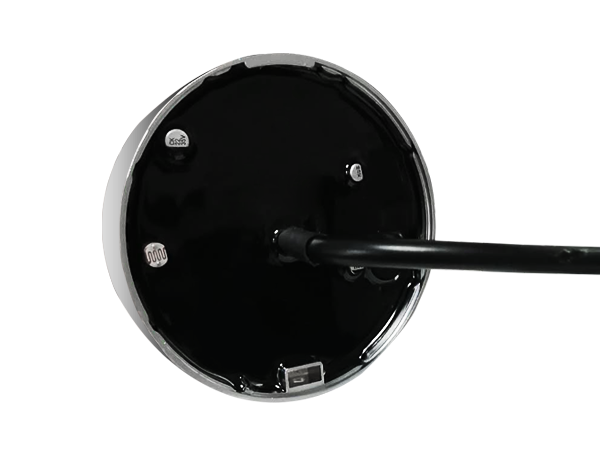

> Built in LDR for anti tamper
> Card block enrollment
> Mini size: Diameter: 73mm, Thickness: 20mm

The S7-EM is a compact, waterproof stand-alone programmable mini access control system that provides proximity entry.
The product unique feature is simple in design, easy operation, and high reliability.

Specifications:

User Capacity: 2000
Card: EM Card
Operating Voltage: 9~24V DC
Idle Current: < 40mA
Proximity Card Reader: EM
Radio Technology: 125KHz
Read Range: 3~10cm

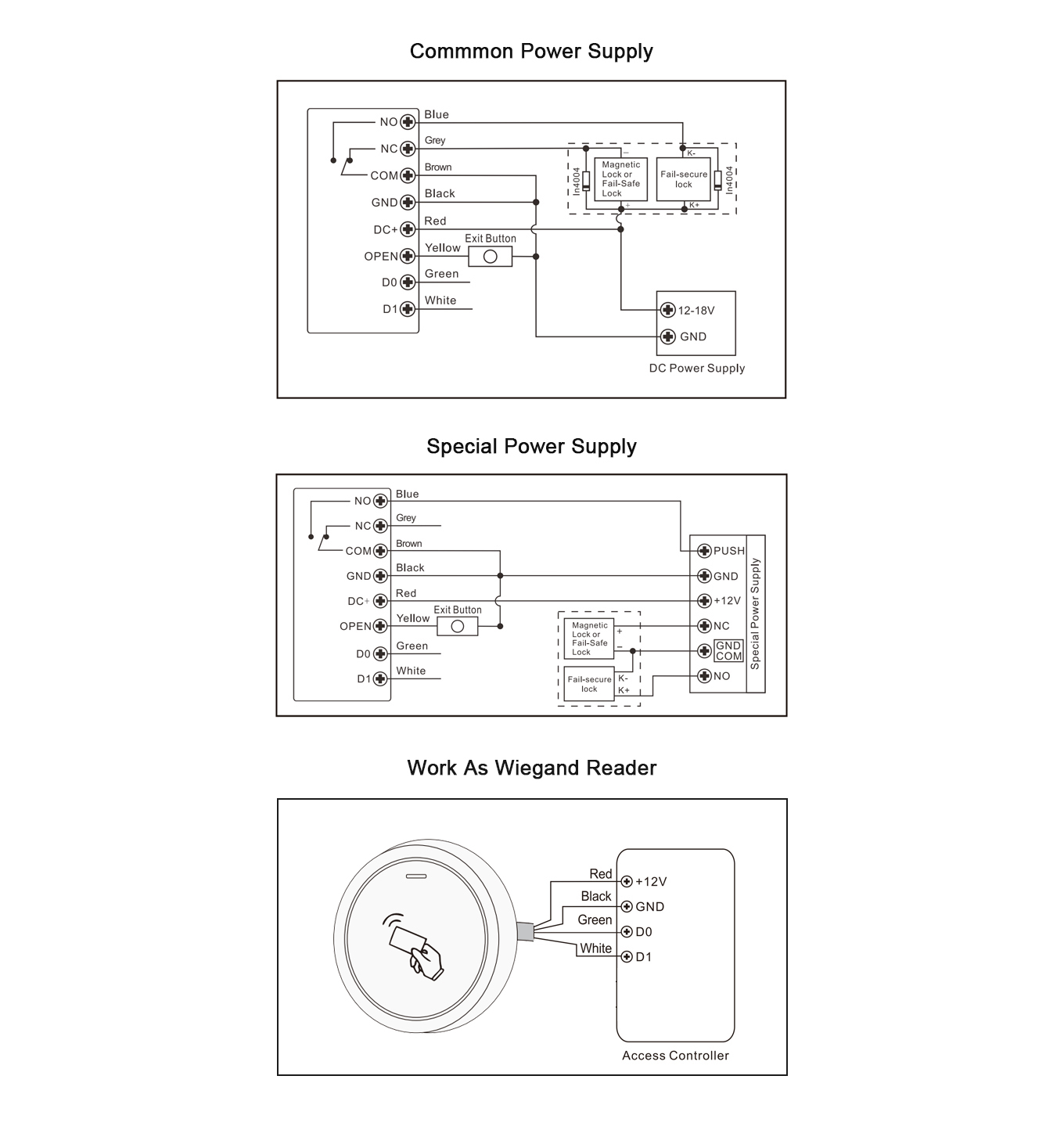

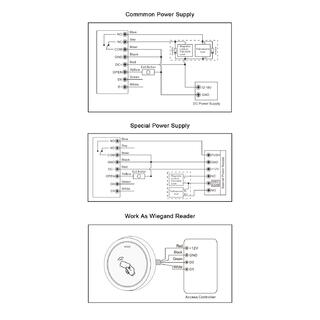

Wiring Connections: Relay output, exit button
Relay: One (NO, NC, Common)
Adjustable Relay Output Time: 0-99 Seconds (5 seconds default)
Lock Output Load: 2 Amp Maximum
Environment: Meets IP66
Operating Temperature: -40 oC ~ 60 oC (-40 oF ~ 140 oF)
Operating Humidity: 20% RH ~ 98% RH
Physical: Zinc Alloy
Surface Finish: Powder Coat

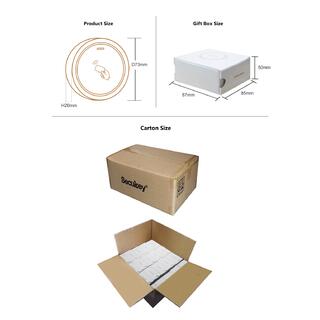

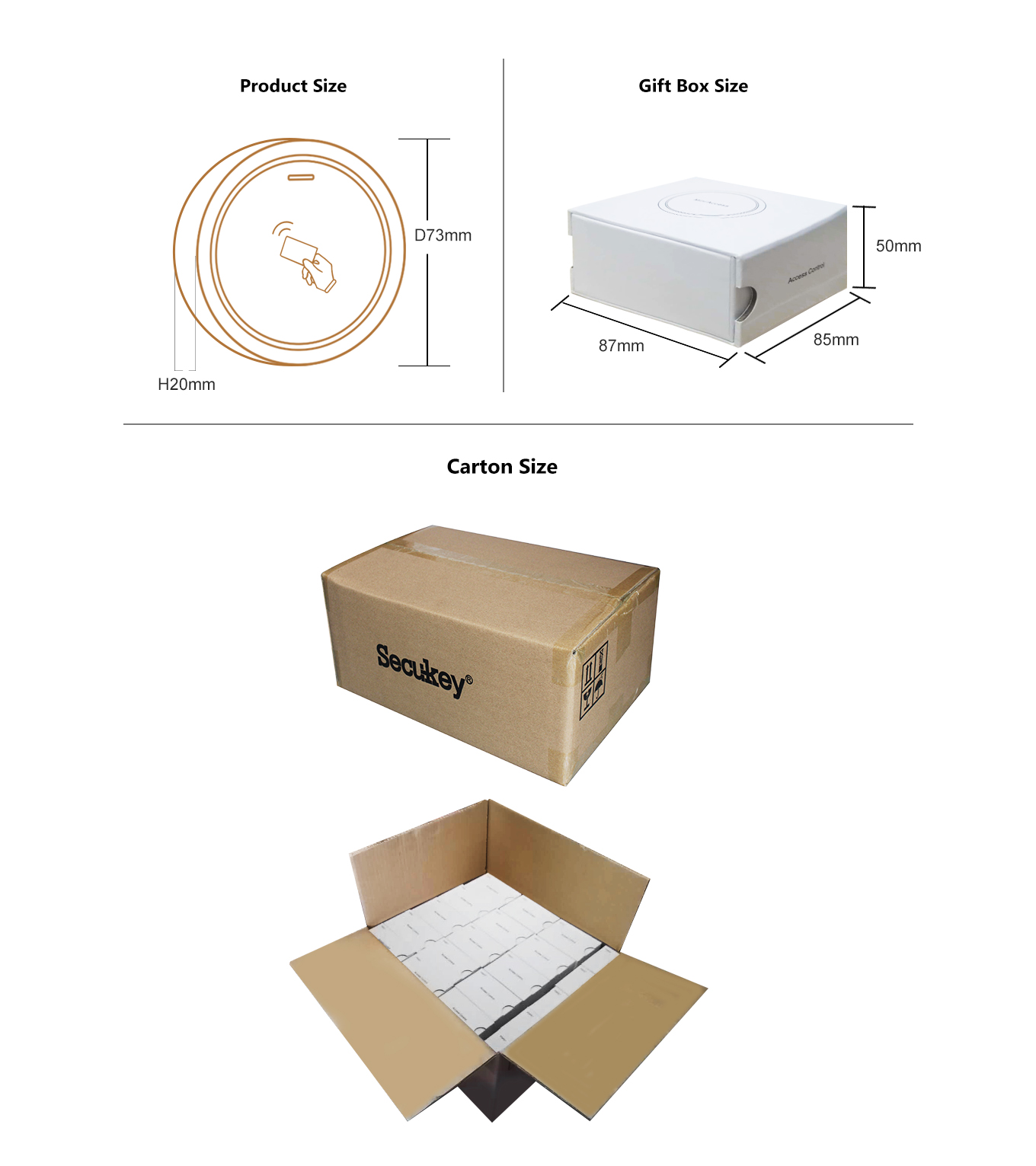

Dimensions: Diameter: 73mm, Thickness: 20mm
Unit Weight: 180g
Shipping Weight: 260g

Specifications

Brand
Secukey
Model
S7-EM
Country of origin
China
